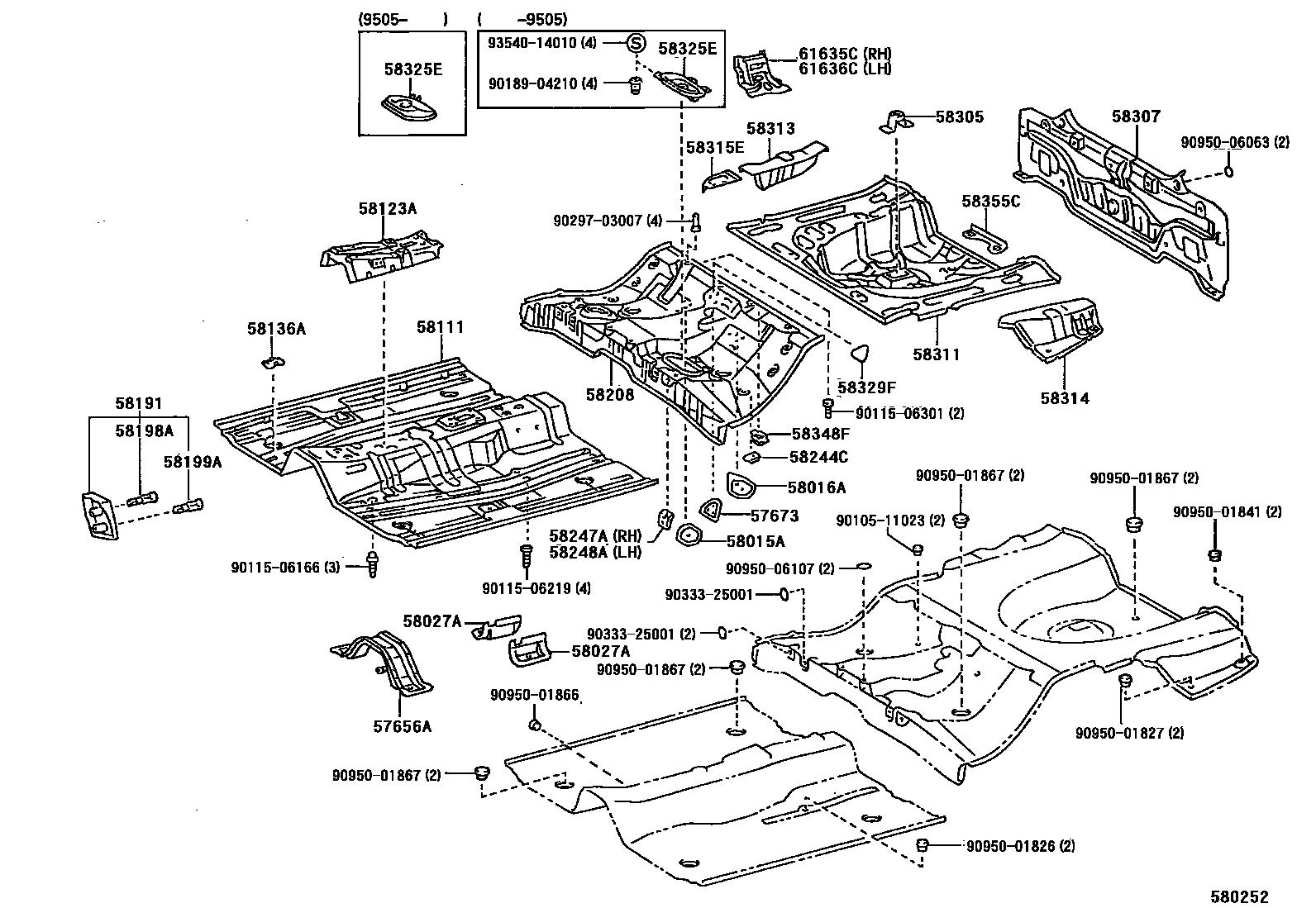

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-12060iAE10#,EE100199205-199710

main57656-12080iAE10#199709-199710

KENYA SPEC

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-12070iAE10#,EE100199205

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12040iAE10#,EE100199205

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12010iAE10#,EE100199205

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12120iAE10#,EE100..5D199205-199505

main58027-12121iAE10#,EE100199505

main58027-12160iEE100..STD199205-199505

58111PAN, FRONT FLOOR

main58111-12260iAE10#,EE100199205-199505

sub58111-12261

main58111-12261iAE10#,EE100199505-199508

sub58111-12262

main58111-12262iAE10#,EE100199508

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12020iAE10#,EE100199205-199505

main58013-12060iAE10#,EE100199505

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020iAE101,EE100199205-199301

main58136-12030iAE10#,EE100199301

58191FOOTREST, FRONT FLOOR

main58191-12110iAE10#,EE100..5D..RHD199205

main58192-12060iAE101..LHD;EE100..LHD..XL..GEN199205-199704

58198ACLIP, FOOTREST, NO.1

main58198-12030iAE10#,EE100..5D..RHD199205

main58198-12040iAE101..LHD;EE100..LHD..XL..GEN199205-199704

58199ACLIP, FOOTREST, NO.2

main58198-12040iAE101..LHD;EE100..LHD..XL..GEN199205-199704

main58199-12020iAE10#,EE100..5D..RHD199205

58208PAN, CENTER FLOOR

main58211-12901iAE10#,EE100199505-199705

sub58211-12910

sub90333-30002

main58211-12913iAE10#,EE100199705

sub58211-12910

main58211-13900iAE10#,EE100199205-199505

sub58211-12901

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-13030iAE10#,EE100199205

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-13050iAE10#,EE100199205

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-13050iAE10#,EE100199205

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAE10#,EE100199205-199411

main58351-12040iAE10#,EE100199411

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A310iAE101,EE100..HB199205-199710

main58307-1A360iAE101..GLI199205-199710

NEW ZEALAND SPEC

main58307-1A360iAE102;AE101,EE100..LB..(GL,XL)199205

main58307-1A410iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC

58311PAN, REAR FLOOR

main58311-12210iAE10#,EE100..LB199205

main58311-12220iAE101,EE100..HB199205-199710

sub58311-12221

sub90950-06107

58313PANEL, REAR FLOOR SIDE, RH

main58313-12900iAE10#,EE100..LB199205-199505

main58313-12902iAE101,EE100..HB199205-199710

main58313-12904iAE10#,EE100..LB199505

58314PANEL, REAR FLOOR SIDE, LH

main58314-12250iAE10#,EE100..LB199205

main58314-12260iAE101,EE100..HB199205-199710

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-12070iAE10#,EE100199205

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12080iAE10#,EE100199205-199505

main58325-12100iAE10#,EE100199505

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-16010iEE100..5F..STD199205-199505

58348FBRACKET, CENTER FLOOR HEAR INSULATOR, NO.3

main58348-12020iAE10#,EE100199205-199505

58355CBRACKET, REAR BUMPER ARM

main58355-12040iAE101,EE100..HB199205

61635CBRACE, QUARTER WHEEL HOUSE, RH

main61635-12040iAE10#,EE100199205

61636CBRACE, QUARTER WHEEL HOUSE, LH

main61636-12050iAE10#,EE100199205

9010511023

main90105-11023

9011506166

main90115-06166

9011506219

main90115-06219

9011506301

main90115-06301

9018904210

main90189-04210

9029703007

main90297-03007

9033325001

main90333-25001

9095001826

main90950-01826

9095001827

main90950-01827

9095001841

main90950-01841

9095001866

main90950-01866

9095001867

main90950-01867

9095006063

main90950-06063

9095006107

main90950-06107

9354014010

main93540-14010

42 parts on this diagram · 2 diagrams in section
