COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE101,EE100199205-199505

53388BCUSHION, HOOD, REAR

main53388-12040iAE10#,EE100199205

55077ACOVER SUB-ASSY, HEATER AIR DUCT HOLE

main55077-12100iAE101,EE100..RHD199205-199308

main55077-12110iAE101,EE100..LHD199205-199308

55701PANEL SUB-ASSY, COWL

main55700-12781iAE10#,EE100..RHD..(GLI,STD,XL,XLI)..GEN199412-199710

main55700-12801iAE101..RHD..GL199505-199705

sub90179-06107

main55700-12840iAE102199402-199412

main55700-12860iEE100..LHD199205-199505

main55700-12890iAE101..GCC199207-199509

main55700-12902iAE101..GLI,XLI199205-199412

main55700-12903iEE100..RHD199205-199412

main55700-12906iAE101..RHD..GL199205-199412

main55700-1A031iAE102..ARL199505-199605

main55700-1A150iEE100..LHD199509-199704

main55700-1A160iAE101..LHD199509-199704

55713APANEL, COWL TOP SIDE, RH

main55713-12080iAE101,EE100..HB199205-199505

sub90467-07166

main55713-12081iAE101,EE100..HB199505-199710

main55713-12090iAE10#,EE100..LB199205-199505

sub90467-07166

main55713-12091iAE10#,EE100..LB199505

55714APANEL, COWL TOP SIDE, LH

main55714-12080iAE101,EE100..HB199205-199505

sub90467-07166

main55714-12081iAE101,EE100..HB199505-199710

main55714-12090iAE10#,EE100..LB199205-199505

sub90467-07166

main55714-12091iAE10#,EE100..LB199505

55738ASTOPPER, HOOD, RH

main55738-12090iAE10#,EE100199205

55739ASTOPPER, HOOD, LH

main55739-12050iAE10#,EE100199205

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12080iAE10#,EE100..RHD199205

main55708-12130iAE101,EE100..LHD199205-199704

sub55708-12140

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010iAE10#,EE100199505

56111GLASS, WINDSHIELD

main56111-1A440iAE101,EE100..HB199205-199710

*LAM,T=4.7,CLEAR

sub56111-1A470

main56111-1A460iAE101,EE100..HB..5D199206-199710

*TL,T=4.7

sub56111-1A470

main56111-1A520iAE101,EE100..LB..(GLI,XL)199505-199710

*LAM,=T=4.7

main56111-1A530iAE10#,EE100..LB..GEN199205

*TL,T=4.7

main56111-1A550iAE102..ARL199505-199605

*TL,T=4.7

56114RETAINER, WINDSHIELD GLASS

main56110-12010×2iAE101,EE100199205-199505

9016440093

main90164-40093

9018904119

main90189-04119

9018904192

main90189-04192

9018904193

main90189-04193

9018904208

main90189-04208

9046706131

main90467-06131

9046706133C0

main90467-06133C0

9095001722

main90950-01722

9165160620

main91651-60620

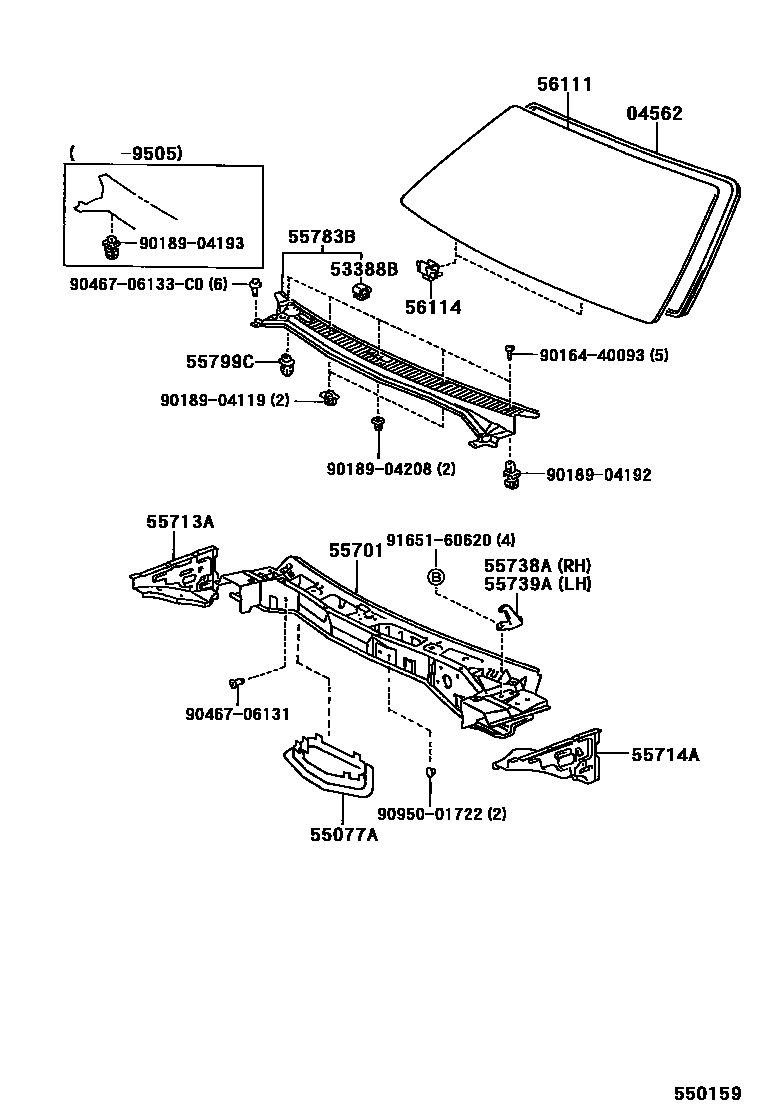

21 parts on this diagram · 1 diagram in section
