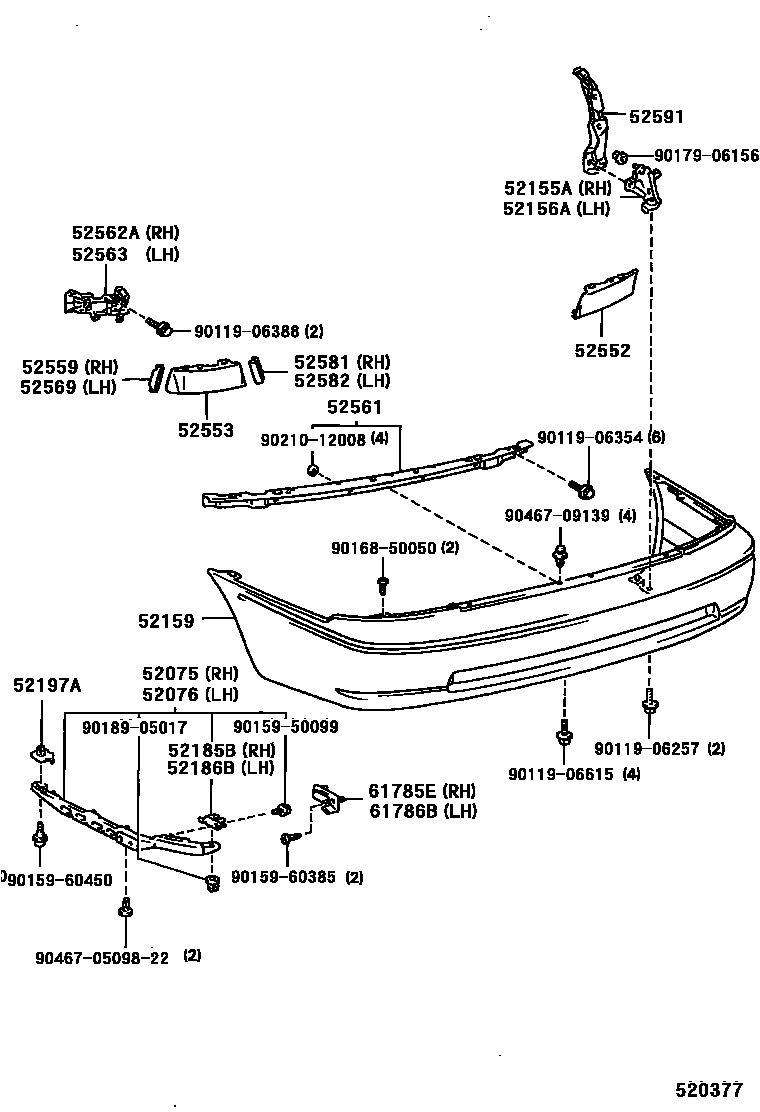

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52075RETAINER SUB-ASSY, REAR BUMPER SIDE, RH

main52075-12050iAE101,EE100..HB199205-199405

main52075-12060iAE10#,EE100..LB199205

main52185-12220iAE101,EE100..HB199405-199710

52076RETAINER SUB-ASSY, REAR BUMPER SIDE, LH

main52076-12050iAE101,EE100..HB199205-199405

main52076-12060iAE10#,EE100..LB199205

main52185-12220iAE101,EE100..HB199405-199710

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12220iAE10#,EE100..LB199205

main52155-12240iAE101,EE100..HB199205-199710

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-12210iAE10#,EE100..LB199205

main52156-12230iAE101,EE100..HB199205-199710

52159COVER, REAR BUMPER

main52159-1A580iAE101,EE100..HB199205-199505

main52159-1A610iAE10#,EE100..LB199205

main52159-1A690iAE101,EE100..HB199508-199710

sub52159-1A934

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-12160iAE101,EE100..HB199205-199405

main52185-12170iAE10#,EE100..LB199205

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-12160iAE101,EE100..HB199205-199405

main52185-12170iAE10#,EE100..LB199205

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-12070×2iAE10#,EE100199205

52552FILLER, REAR BUMPER, RH

main52552-12050iAE101,EE100..HB199205-199710

main52552-12060iAE10#,EE100..LB199205

52553FILLER, REAR BUMPER, LH

main52553-12050iAE101,EE100..HB199205-199710

main52553-12060iAE10#,EE100..LB199205

52559SEAL, REAR BUMPER FILLER

main52559-12010iAE10#,EE100..LB199205

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-12170iAE101,EE100..HB199205-199710

main52561-12190iAE10#,EE100..LB199205

52562ARETAINER, REAR BUMPER FILLER, NO.2

main52562-12040iAE10#,EE100..LB199205

52563RETAINER, REAR BUMPER FILLER, NO.3

main52563-12020iAE10#,EE100..LB199205

52569PAD, REAR BUMPER FILLER

main52569-12020×2iAE101,EE100..HB199205-199710

main52569-12030iAE10#,EE100..LB199205

52581PROTECTOR, REAR BUMPER, RH

main52581-12080iAE10#,EE100..LB199205

52582PROTECTOR, REAR BUMPER, LH

main52581-12080iAE10#,EE100..LB199205

52591SEAL, REAR BUMPER SIDE, RH

main52591-12080iAE10#,EE100199205

61785EBRACKET, REAR BUMPER SIDE, RH

main61786-12030iAE10#,EE100..LB199205

61786BBRACKET, REAR BUMPER SIDE, LH

main61787-12020iAE10#,EE100..LB199205

9011906257

main90119-06257

9011906354

main90119-06354

9011906388

main90119-06388

9011906615

main90119-06615

9015950099

main90159-50099

9015960385

main90159-60385

9015960450

main90159-60450

9016850050

main90168-50050

9017906156

main90179-06156

9018905017

main90189-05017

9021012008

main90210-12008

904670509822

main90467-0509822

9046709139

main90467-09139

33 parts on this diagram · 2 diagrams in section
