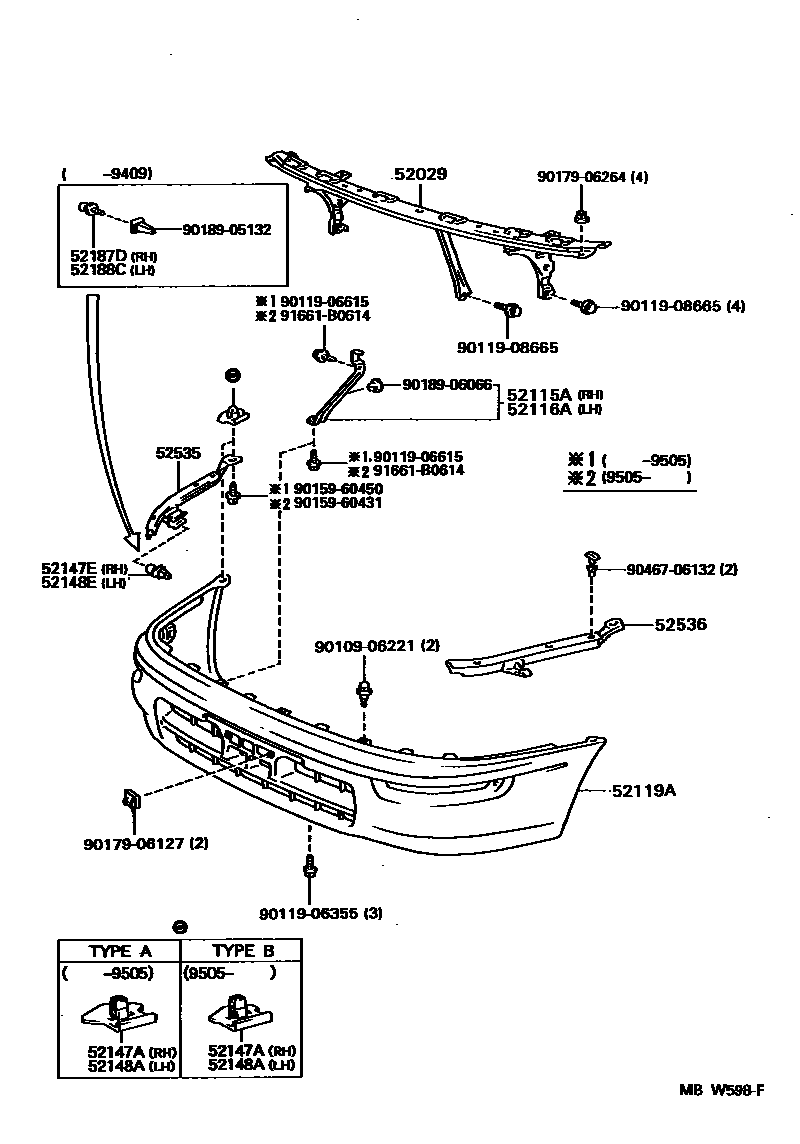

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-12020iAE10#,EE100..LB199205

main52029-12080iAE101,EE100..HB199205-199710

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12340iAE101,EE100..GCC199205-199508

main52115-12350iAE10#,EE100..ARL,GEN199205-199508

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12270iAE101,EE100..GCC199205-199508

main52116-12280iAE10#,EE100..LB199205-199508

52119ACOVER, FRONT BUMPER

main52119-1E130iAE101,EE100..HB199205-199508

main52119-1E190iAE10#,EE100..LB199205

main52119-1E380iAE101,EE100..HB..GEN199505-199710

sub52119-1E933

52147ABRACKET, FRONT BUMPER STAY, RH

main52147-12170iAE10#,EE100199205-199710

main52147-16080iAE10#,EE100..LB199505

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52148-12130iAE10#,EE100199409

52148ABRACKET, FRONT BUMPER STAY, LH

main52147-12170iAE10#,EE100199205-199710

main52147-16080iAE10#,EE100..LB199505

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52148-12130iAE10#,EE100199409

52187DGUIDE, FRONT BUMPER LOCATION, RH

main52187-12140iAE10#,EE100199205-199409

52188CGUIDE, FRONT BUMPER LOCATION, LH

main52187-12140iAE10#,EE100199205-199409

52535RETAINER, FRONT BUMPER SIDE, RH

main52503-12010iAE10#,EE100..LB199205

52536RETAINER, FRONT BUMPER SIDE, LH

main52504-12010iAE10#,EE100..LB199205

9010906221

main90109-06221

9011906355

main90119-06355

9011906615

main90119-06615

9011908665

main90119-08665

9015960431

main90159-60431

9015960450

main90159-60450

9017906127

main90179-06127

9017906264

main90179-06264

9018905132

main90189-05132

9018906066

main90189-06066

9046706132

main90467-06132

91661B0614

main91661-B0614

24 parts on this diagram · 2 diagrams in section
