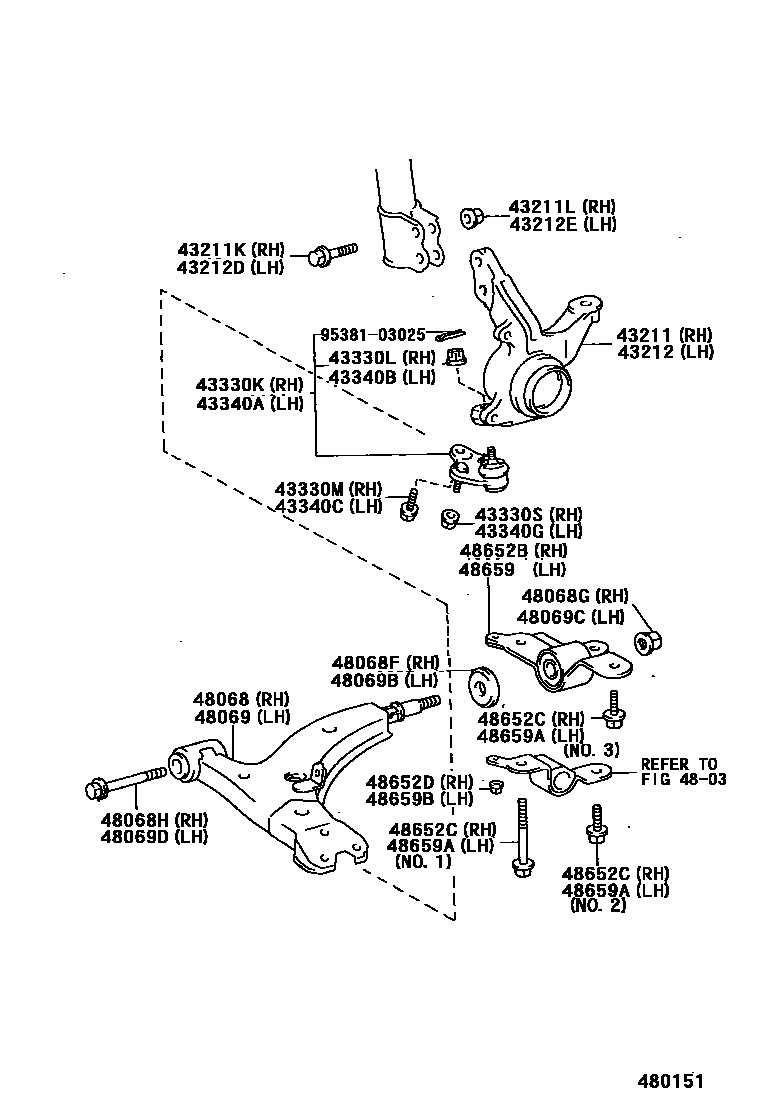

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0003 1 0004 1 0006 1 0007 1

43211KNUCKLE, STEERING, RH

main43211-12200iAE101,EE100..GL,SI,STD,XL199205-199505

sub43211-12340

main43211-12220iEE100..3FC;EE100..LHD..XL;AE101,EE100..GL,SI,STD199205-199505

W(POWER STEERING)

sub43211-12330

main43211-12220iEE100..RHD..5F..XL199206-199505

NEW ZEALAND SPEC & W(POWER STEERING);W(POWER STEERING)

sub43211-12330

main43211-12240iAE102;AE101..5F..GLI199205-199505

NEW ZEALAND SPEC & W(*66)

sub43211-12300

sub90389-16020

main43211-12240iAE101..4FC..GLI199205-199505

W(*66)

sub43211-12300

sub90389-16020

main43211-12290iEE100..RHD199505-199710

NEW ZEALAND SPEC OR W(POWER STEERING)

main43211-12290iEE100..LHD;AE101..GL,SI199505-199704

W(POWER STEERING)

main43211-12300iAE102..ARL199505-199605

W(*66)

main43211-12300iAE102..GEN199505-199710

main43211-12310iAE101,EE100..GL,SI,XL199505-199710

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001iAE10#,EE100199408-199710

OD=15.0

main90105-15004iAE10#,EE100199211-199710

OD=13.9

main90105-15005iAE10#,EE100199211-199710

OD=13.3

main90105-15006iAE10#,EE100199211-199710

OD=12.4

main90105-15007iAE10#,EE100199205-199408

OD=15.0

sub90105-15001

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001iAE101,EE100199205-199710

43212KNUCKLE, STEERING, LH

main43212-12160iAE101,EE100..GL,SI,STD,XL199205-199505

sub43212-12300

main43212-12180iEE100..RHD..5F..XL199206-199505

NEW ZEALAND SPEC & W(POWER STEERING);W(POWER STEERING)

sub43212-12290

main43212-12180iAE10#..GLI,XLI199205-199505

W(POWER STEERING)

sub43212-12290

main43212-12200iAE102;AE101..5F..GLI199205-199505

NEW ZEALAND SPEC & W(*66)

sub43212-12260

sub90389-16020

main43212-12200iAE101..4FC..GLI199205-199505

W(*66)

sub43212-12260

sub90389-16020

main43212-12250iAE102..ARL;AE101..GLI,XLI199505-199710

NEW ZEALAND SPEC OR W(POWER STEERING)

main43212-12250iEE100..LHD;AE101..GL,SI199505-199704

W(POWER STEERING)

main43212-12260iAE102..ARL199505-199605

W(*66)

main43212-12260iAE102..GEN199505-199710

main43212-12270iAE101,EE100..GL,SI,XL199505-199710

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001iAE10#,EE100199408-199710

OD=15.0

main90105-15004iAE10#,EE100199211-199710

OD=13.9

main90105-15005iAE10#,EE100199211-199710

OD=13.3

main90105-15006iAE10#,EE100199211-199710

OD=12.4

main90105-15007iAE10#,EE100199205-199408

OD=15.0

sub90105-15001

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001iAE101,EE100199205-199710

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19095iAE10#,EE100199205-199505

main43330-19115iAE10#,EE100199505-199710

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAE10#,EE100199205-199710

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12156iAE10#,EE100199205

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12070iAE10#,EE100199205

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19095iAE10#,EE100199205-199505

main43330-19115iAE10#,EE100199505-199710

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAE10#,EE100199205-199710

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12156iAE10#,EE100199205

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12070iAE10#,EE100199205

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-12130iAE101..XLI199205-199508

main48068-12130iAE101,EE100..GEN199205-199505

ROUGH RODE PACKAGE

main48068-12140iAE102199402-199505

main48068-12140iAE101,EE100..GEN199205-199505

W(STABILIZER BER BRACKET)

main48068-12160iAE101,EE100199505-199710

main48068-12170iAE101,EE100..RHD..(GLI,XL,XLI)199505-199610

NEW ZEALAND SPEC & W(STABILIZER BER BRACKET)

sub48068-12171

main48068-12171iAE101,EE100..RHD..(GLI,XL,XLI)199610-199710

NEW ZEALAND SPEC & W(STABILIZER BER BRACKET)

main48068-12180iAE101,EE100..GEN199505-199610

W(STABILIZER BER BRACKET)

sub48068-12181

main48068-12181iAE101,EE100..GEN199610-199710

W(STABILIZER BER BRACKET)

main48068-12190iAE101,EE100..GCC199505-199506

ROUGH ROAD PACKAGE

sub48068-12191

main48068-12190iAE101,EE100..GCC199505-199506

ROUGH ROAD PACKAGE 1

sub48068-12191

main48068-12191iAE101,EE100..GCC199506-199704

ROUGH ROAD PACKAGE 1

main48068-12191iAE101,EE100..GEN199506-199710

ROUGH ROAD PACKAGE

48068FRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90948-02152iAE101,EE100..GCC199205-199508

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-14006iAE10#,EE100199205-199508

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14023iAE101,EE100..GCC199505-199508

NO.1

main90119-14023iAE10#,EE100199205-199505

main90119-14041iAE10#,EE100199505-199508

NO.2

main90119-14041iAE10#,EE100..ARL,GEN199505-199508

ROUGH ROAD PACKAGE 1,NO.2

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-12130iAE101..XLI199205-199508

main48069-12130iAE101,EE100..GEN199205-199505

ROUGH RODE PACKAGE

main48069-12140iAE101,EE100..GEN199205-199505

W(STABILIZER BER BRACKET)

main48069-12140iAE102199402-199505

main48069-12160iAE101,EE100..GEN199505-199710

main48069-12170iAE101,EE100..RHD..(GLI,XL,XLI)199505-199610

NEW ZEALAND SPEC & W(STABILIZER BER BRACKET)

sub48069-12171

main48069-12171iAE101,EE100..RHD..(GLI,XL,XLI)199610-199710

NEW ZEALAND SPEC & W(STABILIZER BER BRACKET)

main48069-12180iAE101,EE100..GEN199505-199610

W(STABILIZER BER BRACKET)

sub48069-12181

main48069-12181iAE102199610-199710

W(STABILIZER BER BRACKET)

main48069-12190iAE101,EE100..GCC199505-199506

ROUGH ROAD PACKAGE 1

sub48069-12191

main48069-12190iAE101,EE100..GEN199505-199506

ROUGH ROAD PACKAGE

sub48069-12191

main48069-12191iAE101,EE100..GEN199506-199710

ROUGH ROAD PACKAGE

main48069-12191iAE101,EE100..GCC199506-199704

ROUGH ROAD PACKAGE 1

48069BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90948-02152iAE10#,EE100199205-199508

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-14006iAE10#,EE100199205-199508

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14023iAE10#,EE100199205-199505

main90119-14023iAE101,EE100..GCC199505-199508

NO.1

main90119-14041iAE10#,EE100..ARL,GEN199505-199508

ROUGH ROAD PACKAGE 1,NO.2

main90119-14041iAE101,EE100..GCC199505-199508

NO.2

48652BBRACKET, FRONT LOWER ARM, RH

main48075-12010iAE101,EE100..GEN199205-199505

ROUGH ROAD PACKAGE OR W(STABILIZER BER BRACKET)

main48075-12010iAE102199402-199505

main48075-12010iAE101,EE100..GCC199207-199508

ROUGH ROAD PACKAGE 1

main48075-12031iAE101,EE100199205-199305

main48075-12031iAE101,EE100..RHD..(4FC,5F)..(GLI,STD,XL,XLI)199205-199505

NEW ZEALAND SPEC & W(STABILIZER BER BRACKET)

main48075-12040iAE101,EE100199305-199508

main48652-12060iAE101,EE100..GEN199505-199508

main48652-12070iAE101,EE100..GCC199508-199704

ROUGH ROAD PACKAGE 1

main48652-12070iAE102199505-199710

main48652-12070iAE101,EE100..GEN199505

ROUGH ROAD PACKAGE OR W(STABILIZER BER BRACKET)

48652CBOLT(FOR FRONT LOWER ARM BRACKET RH)

main90119-10692iAE10#,EE100199205

*10-1.25PX29-23,NO.2

main90119-12125iAE10#,EE100199205

*12-1.25PX31-25.3,NO.3

main90119-12238iAE10#,EE100199205

*12-1.25PX75-38,NO.1

48652DNUT(FOR FRONT LOWER ARM BRACKET RH)

main90179-08072iAE10#,EE100199205-199408

main90179-08145iAE10#,EE100199408

sub90179-08123

48659BRACKET, FRONT LOWER ARM, LH

main48076-12010iAE101,EE100..GCC199207-199508

ROUGH ROAD PACKAGE 1

main48076-12010iAE101,EE100..GEN199205-199505

ROUGH ROAD PACKAGE OR W(STABILIZER BER BRACKET)

main48076-12010iAE102199402-199505

main48076-12031iAE101,EE100199205-199305

main48076-12031iAE101,EE100..RHD..(4FC,5F)..(GLI,STD,XL,XLI)199205-199505

W(STABILIZER BER BRACKET)

main48076-12040iAE101,EE100..GCC199305-199508

main48659-12060iAE101,EE100..GEN199505-199508

main48659-12070iAE101,EE100..GCC199508-199704

ROUGH ROAD PACKAGE 1

main48659-12070iAE102199505-199710

main48659-12070iAE101,EE100..GEN199505

ROUGH ROAD PACKAGE OR W(STABILIZER BER BRACKET)

48659ABOLT(FOR FRONT LOWER ARM BRACKET LH)

main90119-10692iAE10#,EE100199205

*10-1.25PX29-23,NO.2

main90119-12125iAE10#,EE100199205

*12-1.25PX31-25.3,NO.3

main90119-12238iAE10#,EE100199205

*12-1.25PX75-38,NO.1

48659BNUT(FOR FRONT LOWER ARM BRACKET LH)

main90179-08072iAE10#,EE100199205-199408

main90179-08145iAE10#,EE100199408

sub90179-08123

9538103025

main95381-03025

30 parts on this diagram · 5 diagrams in section
