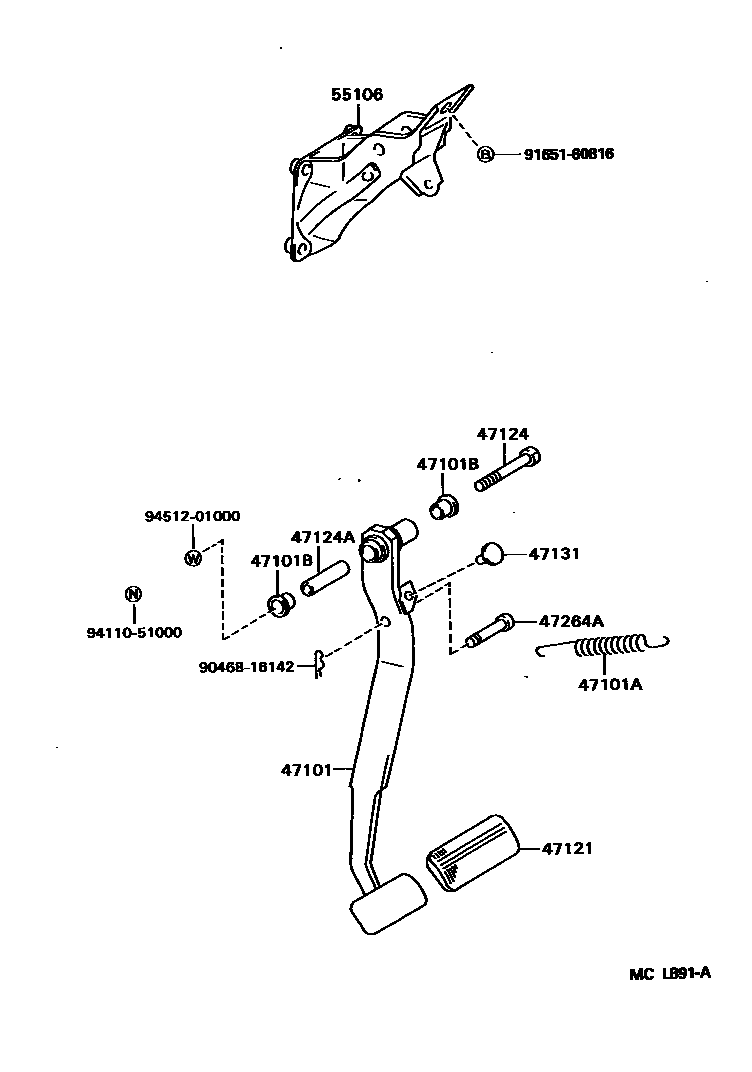

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-12470iAE101,EE100..LHD..MTM199205-199704

main47101-12480iAE10#,EE100..RHD..ATM199205-199505

main47101-12490iAE102..5F..ARL199505-199605

main47101-12500iAE101..4FC..GCC199207-199704

main47101-12510iAE10#,EE100..RHD..5F..GEN199505

main47101-12520iAE10#..4FC..GEN199505-199710

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14037iAE10#,EE100199205

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iAE10#,EE100199205

47121PAD, BRAKE PEDAL

main31321-12040iAE10#,EE100..MTM199205

main47121-12020iAE10#,EE100..ATM199205-199710

47124SHAFT, BRAKE PEDAL

main90101-10015iAE10#,EE100199205

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAE10#,EE100199205

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iAE10#,EE100199205

47264APIN(FOR PUSH ROD)

main47148-12020iAE10#,EE100199505

WAVE WASHER 1 PIECES

main47148-12040iAE10#,EE100199212

WAVE WASHER 3 PIECES

main47148-12050iAE10#,EE100199212-199505

WAVE WASHER 2 PIECES

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12600iAE10#,EE100..RHD199205-199505

main55106-12610iAE101,EE100..LHD199205-199704

main55106-12620iAE10#,EE100..RHD..GEN199505

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 2 diagrams in section
