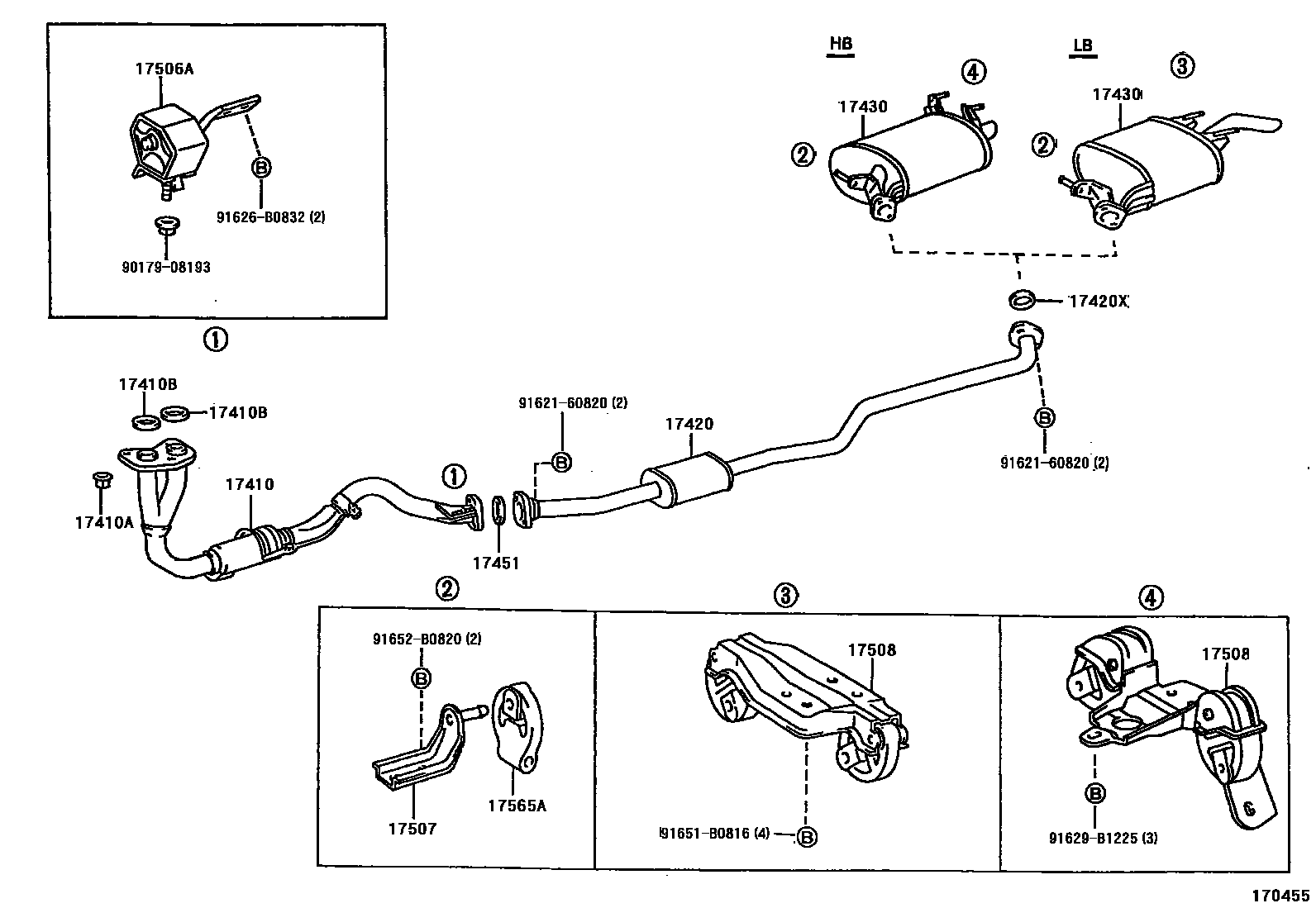

EXHAUST PIPE

0001 1 0003 1W(CONVERTER) 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-11580i2E..EE100199205-199710

main17410-16830i4AF#..AE101199205

main17410-1A030i4AFE..AE101..GLI199205-199710

W(CONVERTER)

main17410-1A090i7AFE..AE102..GEN199505-199710

main17410-1A150i7AFE..AE102..ARL199402-199605

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×2i7AFE..AE102..ARL199402-199605

17410BGASKET, EXHAUST PIPE

main90917-06061×2i4AFE..AE101..GLI199205-199710

W(CONVERTER)

main90917-06064×2i4AF#,7AFE..AE10#..GCC,GEN199205

main90917-06065i7AFE..AE102..ARL199402-199605

main90917-06069×2i2E..EE100199205-199710

17420PIPE ASSY, EXHAUST, CENTER

main17420-02100i7AFE..AE102..ARL199402-199605

main17420-11230i4AF#,7AFE,2E..AE10#,EE100..GCC,GEN199205

main17420-16590i4AFE..AE101..GLI199205-199710

W(CONVERTER)

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06039i7AFE..AE102..ARL199402-199605

main90917-06074i4AF#,7AFE,2E..AE10#,EE100..GCC,GEN199205

17430PIPE ASSY, EXHAUST, TAIL

main17430-11640i4AFE..AE101..GLI199205-199710

W(CONVERTER)

main17430-1A220i4AF#,7AFE,2E..AE10#,EE100..LB..GEN199205

main17430-1A290i4AFE,2E..AE101,EE100..HB199205-199710

main17430-1A430i7AFE..AE102..ARL199402-199605

17451GASKET, EXHAUST PIPE

main90917-06043i4AFE..AE101..GLI199205-199710

W(CONVERTER),FRONT

main90917-06045×2i7AFE..AE102..ARL199402-199605

main90917-06057i4AFE..AE101..GLI199205-199710

W(CONVERTER),REAR

main90917-06074i4AF#,7AFE,2E..AE10#,EE100..GCC,GEN199205

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-15070i4AF#,7AFE,2E..AE10#,EE100199205-199502

main17506-16120i4AF#,7AFE,2E..AE10#,EE100..LB199502-199505

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17507-15040i4AF#,7AFE,2E..AE10#,EE100199205

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-15050i4AF#,7AFE,2E..AE10#,EE100..LB199205

main17508-16070i4AFE,2E..AE101,EE100..GCC199505-199508

main17508-16080i4AFE,2E..AE101,EE100..HB199508-199710

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-16230i4AF#,7AFE,2E..AE10#,EE100199205

sub17565-28020

9017908193

main90179-08193

9162160820

main91621-60820

91626B0832

main91626-B0832

91629B1225

main91629-B1225

91651B0816

main91651-B0816

91652B0820

main91652-B0820

17 parts on this diagram · 4 diagrams in section
