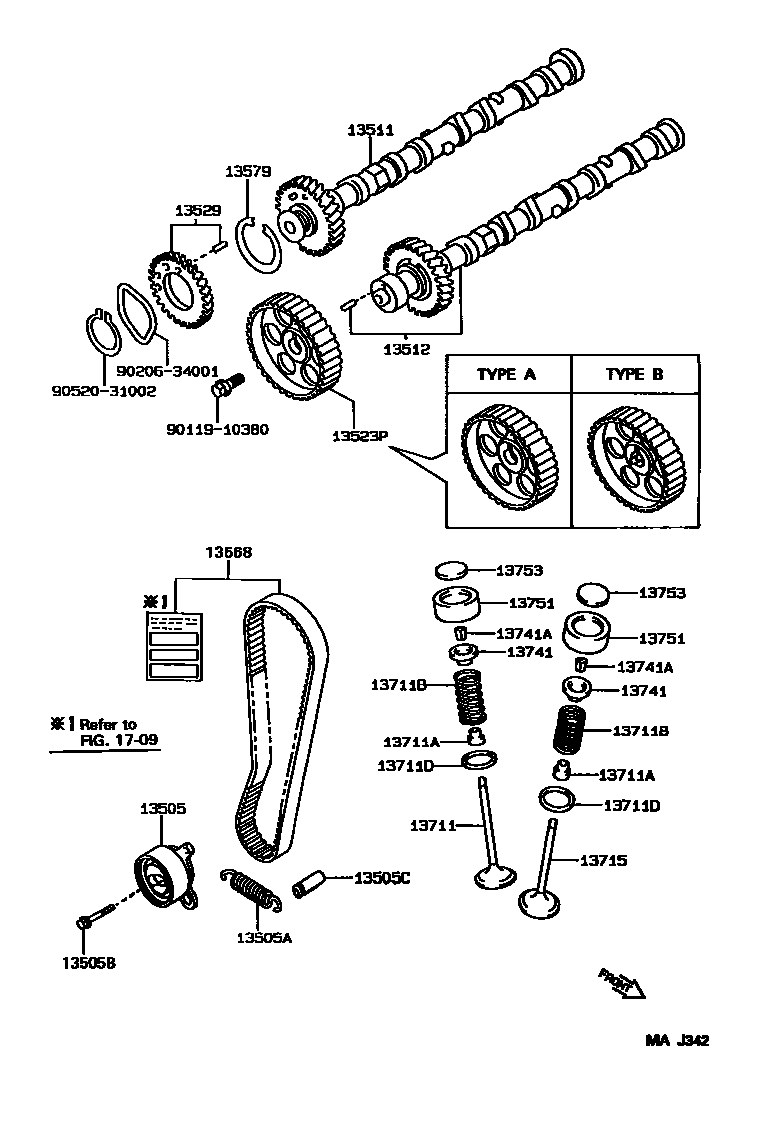

CAMSHAFT & VALVE
13505BBOLT, FLANGE (FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13511CAMSHAFT
SINGAPORE SPEC
13512CAMSHAFT, NO.2
SINGAPORE SPEC
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523PPULLEY, CAMSHAFT TIMING
TYPE A
TYPE B
13529GEAR, CAMSHAFT SUB
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13711VALVE, INTAKE
NO.1
SINGAPORE SPEC
NEW ZEALNAD SPEC
NEW ZEALNAD OR SINGAPORE SPEC
NO.2
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
EXHAUST SIDE
EXHAUST SIDE
INTAKE SIDE
INTAKE SIDE
13711BSPRING, COMPRESSION(FOR INNER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
NEW ZEALNAD SPEC
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.55
T=3.25
T=3.30
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
1709
9011910380
main90119-10380
9020634001
main90206-34001
9052031002
main90520-31002
24 parts on this diagram · 2 diagrams in section
