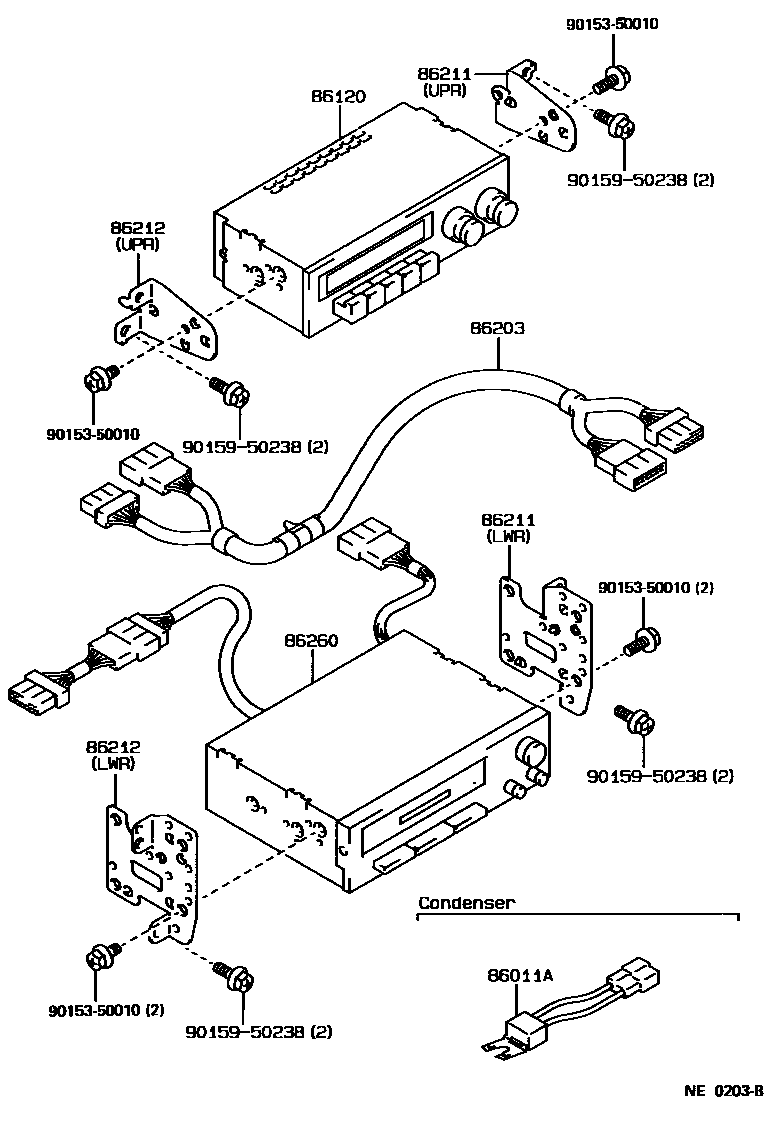

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04055iAE92..GT,GTI;EE90..GCC,GEN198705-199308

86120RECEIVER ASSY, RADIO

main86120-12550iAE92,EE90..GCC,GEN198705-199207

FUJITSU TEN,AM,TEN

main86120-12590iAE92,EE90..GCC,GEN198705-199207

PANASONIC,AM,MATSUSHITA

main86120-16430iAE92,EE90..(3FC,5F)..(GCC,GEN)199108-199207

FUJITSU TEN,AM/FM,2-SPEAKER

main86120-16460iAE92,EE90..GCC,GEN199108-199207

MATSUSHITA,ID=5108,MW/SW,1-SPEAKER

main86120-16470iAE92,EE90..GCC,GEN198705-199108

FUJITSU TEN,AM/FM,1-SPEAKER

86203WIRE, RADIO

main86203-12100iAE92,EE90..RHD..(3D,5D)..(GL,GTI,STD,XL)198705-198908

main86203-12200iAE92,EE90..LHD..(3D,5D)198705-199207

86211BRACKET, RADIO, NO.1

main86211-12200iAE92..XL..GEN198705-199106

LWR

main86211-12210iAE92,EE90..(3D,5D)..(GL,SR5,STD,XL)198705-199308

UPR

main86211-12220iAE92,EE90..3D,5D198705-199308

LWR

86212BRACKET, RADIO, NO.2

main86212-12180iAE92..XL..GEN198705-199106

LWR

main86212-12190iAE92,EE90..(3D,5D)..(GL,SR5,STD,XL)198705-199308

UPR

main86212-12200iAE92,EE90..3D,5D198705-199308

LWR

86260TAPE PLAYER ASSY

main86260-12160iAE92,EE90..GEN198705-199108

NON REVERSE TAPE PLAYER

main86260-16140iAE92,EE90..(3D,5D)..GEN198705-199108

AUTO REVERSE TAPE PLAYER

9015350010

main90153-50010

9015950238

main90159-50238

8 parts on this diagram · 1 diagram in section
