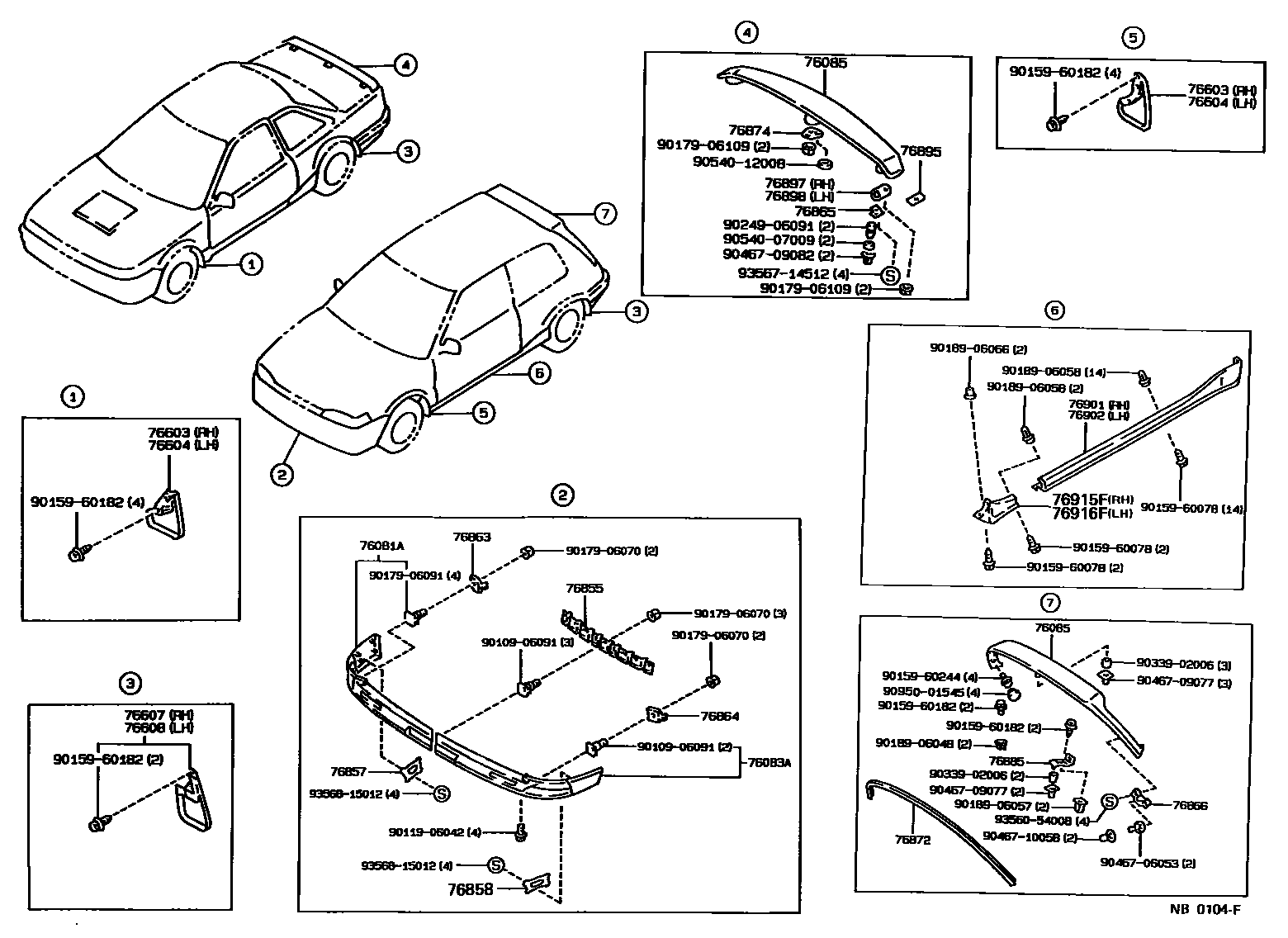

MUDGUARD & SPOILER
76081ASPOILER SUB-ASSY, FRONT RH
76083ASPOILER SUB-ASSY, FRONT LH
76085SPOILER SUB-ASSY, REAR
W(LAMP)
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
BLACK M,204
SURER RED 2,3E5
GRAY M,168
SURER WHITE 2,040
DARK BLUEISH GRAY M,183
DARK BLUE MICA M,8E9
BLUE MICA M,8G1
SUPER RED 2,3E5
GRAY M,168
DARK BLUE MICA M,8E9
BEIGE M,27E
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
DK BLUEISH GRAY M,183
DK BLUEISH GRAY M
DK BLUE MICA M,8J7
W(FRONT BUMPER TYPE G)
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
BLACK M,204
SUPER RED 2,3E5
GRAY M,168
SUPER WHITE 2,040
DARK BLUEISH GRAY M,183
DARK BLUE MICA M,8E9
BLUE MICA M,8G1
SUPER RED 2,3E5
GRAY M,168
DARK BLUE MICA M,8E9
BEIGE M,27E
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
DK BLUEISH GRAY M,183
DK BLUE MICA M,8J7
W(FRONT BUMPER TYPE G)
76855RETAINER, FRONT SPOILER, LOWER NO.1 CENTER
76857RETAINER, FRONT SPOILER SIDE, RH
76858RETAINER, FRONT SPOILER SIDE, LH
76863RETAINER, FRONT SPOILER, LOWER NO.2 RH
76864RETAINER, FRONT SPOILER, LOWER NO.2 LH
76865RETAINER, REAR SPOILER, NO.1
76866RETAINER, REAR SPOILER, NO.2
76872PROTECTOR, REAR SPOILER, NO.1
76885RETAINER, REAR SPOILER, NO.5
76895PROTECTOR, REAR SPOILER, NO.5
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
76901MUDGUARD SUB-ASSY, SIDE, RH
SUPER RED 2,3E5
GRAY M,168
DARK BLUE MICA M,8E9
BEIGE M,27E
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
DK BLUEISH GRAY M,183
DK BLUE MICA M,8J7
76902MUDGUARD SUB-ASSY, SIDE, LH
SUPER RED,3E5
GRAY M,168
DARK BLUE MICA M,8E9
BEIGE M,27E
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
DK BLUEISH GRAY M,183
DK BLUE MICA M,8J7
76915FMUDGUARD, SIDE, FR RH
W(COLORED MUDGUARD),SUPER RED 2,3E5
W(COLORED MUDGUARD),GRAY M,168
W(COLORED MUDGUARD),DARK BLUE MICA M,8E9
W(COLORED MUDGUARD),BEIGE M,27E
W(COLORED MUDGUARD),GRAYISH GREEN M,6K6
W(COLORED MUDGUARD),SUPER WHITE 2,040
W(COLORED MUDGUARD),DK BLUEISH GRAY M,183
W(COLORED MUDGUARD),DK BLUE MICA M,8J7
76916FMUDGUARD, SIDE, FR LH
W(COLORED MUDGUARD),SUPER RED 2,3E5
W(COLORED MUDGUARD),GRAY M,168
W(COLORED MUDGUARD),DARK BLUE MICA M,8E9
W(COLORED MUDGUARD),BEIGE M,27E
W(COLORED MUDGUARD),GRAYISH GREEN M,6K6
W(COLORED MUDGUARD),SUPER WHITE 2,040
W(COLORED MUDGUARD),DK BLUEISH GRAY M,183
W(COLORED MUDGUARD),DK BLUE MICA M,8J7
9010906091
main90109-06091
9011906042
main90119-06042
9015960078
main90159-60078
9015960182
main90159-60182
9015960244
main90159-60244
9017906070
main90179-06070
9017906091
main90179-06091
9017906109
main90179-06109
9018906048
main90189-06048
9018906057
main90189-06057
9018906058
main90189-06058
9018906066
main90189-06066
9024906091
main90249-06091
9033902006
main90339-02006
9046706053
main90467-06053
9046709077
main90467-09077
9046709082
main90467-09082
9046710058
main90467-10058
9054007009
main90540-07009
9054012008
main90540-12008
9095001545
main90950-01545
9356054008
main93560-54008
9356714512
main93567-14512
9356815012
main93568-15012
48 parts on this diagram · 2 diagrams in section
