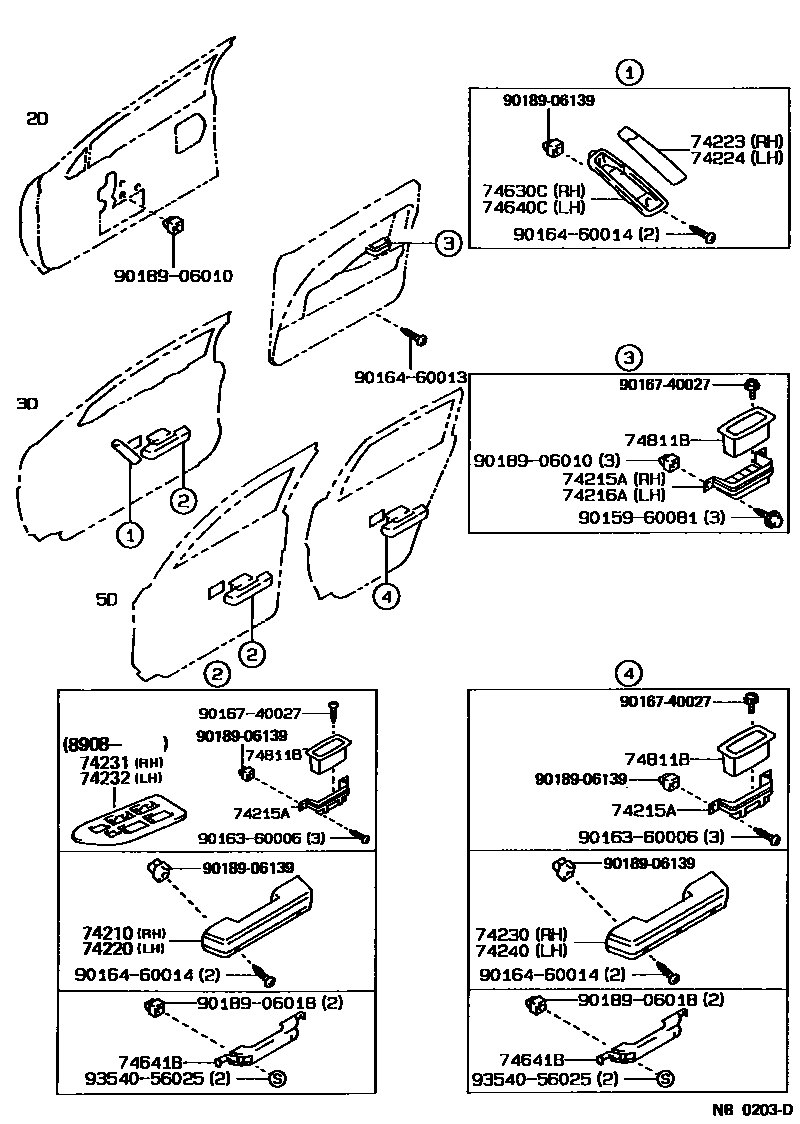

ARMREST & VISOR

0001 1 0002 1 0003 1

74210ARMREST ASSY, FRONT, RH

main74210-12110-03iAE92,EE90..5D..(SR5,XL)..(GCC,GEN)198705-199009

GRAY,TRIM1#

sub74210-12110

main74210-12110-05iEE90..5D..XL..(GCC,GEN)198705-198908

DARK BEIGE,TRIM4#

sub74210-12110

main74210-12110-24iEE90..LHD..5D..XL198705-198909

DARK BLUE,TRIM8#

sub74210-12110

main74210-12110-36iEE90..LHD..XL198908-198909

BROWN,TRIM4#

sub74210-12110

main74210-12110-B1iEE90..5F..GL199105-199206

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

sub74210-12110

main74210-12110-B1iAE92,EE90..5D..(SR5,XL)..(GCC,GEN)199008-199308

SHADOW GRAY,TRIM1#

sub74210-12110

main74210-12110-E0iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198909-199308

BROWN,TRIM4#

sub74210-12110

main74210-12110-J0iEE90..XL..(GCC,GEN)198909-199207

DARK BLUE,TRIM8#

sub74210-12110

main74210-12110-J0iEE90..5F..GL199105-199206

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

sub74210-12110

main74210-12130-03iEE90..RHD..5F..XL..GEN198908-199009

W(*PW & *EL),SHADOW GRAY,TRIM1#

sub74210-12130

main74210-12130-04iEE90..RHD..5F..XL..GEN198908-199001

W(*PW & *EL),DARK BLUE,TRIM8#

sub74210-12130

main74210-12130-06iEE90..LHD..XL198908-199001

W(*PW & *EL),BROWN,TRIM4#

sub74210-12130

main74210-12130-B0iEE90..3FC..XL;EE90..LHD..XL199009-199207

W(*PW & *EL),SHADOW GRAY,TRIM1#

sub74210-12130

main74210-12130-E0iEE90..LHD..XL199001-199207

W(*PW & *EL),BROWN,TRIM4#

sub74210-12130

main74210-12130-J0iEE90..RHD..5F..XL..GEN199001-199207

W(*PW & *EL),DARK BLUE,TRIM8#

sub74210-12130

main74210-22061-23iEE90..3D..XL198705-198908

GRAY,TRIM1#

sub74210-22061

main74210-22061-24iEE90..LHD..3D..XL198705-198908

DARK BLUE,TRIM8#

sub74210-22061

main74210-22061-25iEE90..3D..XL198705-198908

DARK BEIGE,TRIM4#

sub74210-22061

74215ABASE, DOOR ARMREST RH

main74215-12020iAE92..GT198908-199308

W(*PW & *EL),RH

main74215-12020iEE90..GL198908-199206

W(*PW),RH

main74215-12020iAE92,EE90..GL,GT198705-199308

main74215-12030iAE92..XL..GEN198705-199106

main74215-12040iEE90..GL198908-199206

W(*PW),LH

main74215-12040iAE92..GT198908-199308

W(*PW & *EL),LH

74216ABASE, DOOR ARMREST, LH

main74215-12030iAE92..XL..GEN198705-199106

74220ARMREST ASSY, FRONT, LH

main74210-12110-03iAE92,EE90..5D..(SR5,XL)..(GCC,GEN)198705-199009

GRAY,TRIM1#

sub74210-12110

main74210-12110-05iEE90..5D..XL..(GCC,GEN)198705-198908

DARK BEIGE,TRIM4#

sub74210-12110

main74210-12110-24iEE90..XL..(GCC,GEN)198705-198909

DARK BLUE,TRIM8#

sub74210-12110

main74210-12110-36iEE90..LHD..XL198908-198909

BROWN,TRIM4#

sub74210-12110

main74210-12110-B1iAE92,EE90..(STD,XL)..SA199008-199308

SHADOW GRAY

sub74210-12110

main74210-12110-B1iAE92,EE90..5D..(SR5,XL)..(GCC,GEN)199009-199308

SHADOW GRAY,TRIM1#

sub74210-12110

main74210-12110-B1iEE90..5F..GL199105-199206

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

sub74210-12110

main74210-12110-E0iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198909-199308

BROWN,TRIM4#

sub74210-12110

main74210-12110-J0iEE90..5F..GL199105-199206

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

sub74210-12110

main74210-12110-J0iEE90..XL..(GCC,GEN)198909-199207

DARK BLUE,TRIM8#

sub74210-12110

main74210-22061-23iEE90..3D..XL198705-198908

GRAY,TRIM1#

sub74210-22061

main74210-22061-24iEE90..LHD..3D..XL198705-198908

DARK BLUE,TRIM8#

sub74210-22061

main74210-22061-25iEE90..3D..XL198705-198908

DARK BEIGE,TRIM4#

sub74210-22061

main74220-12070-03iEE90..LHD..5F;EE90..(3FC,4F)..XL198908-199009

W(*PW & *EL),SHADOW GRAY,TRIM1#

sub74220-12070

main74220-12070-04iEE90..(3FC,4F)..XL;EE90..LHD..XL..GEN198908-199001

W(*PW & *EL),DARK BLUE,TRIM8#

sub74220-12070

main74220-12070-06iEE90..LHD..XL198908-199001

W(*PW & *EL),BROWN,TRIM4#

sub74220-12070

main74220-12070-B0iEE90..RHD..5F..XL..GEN199009-199207

W(*PW & *EL),SHADOW GRAY,TRIM1#

sub74220-12070

main74220-12070-E0iEE90..LHD..XL199001-199207

W(*PW & *EL),BROWN,TRIM4#

sub74220-12070

main74220-12070-J0iEE90..RHD..5F..XL..GEN199001-199207

W(*PW & *EL),DARK BLUE,TRIM8#

sub74220-12070

74223CAP, DOOR ARMREST, RH

main74223-12070-03iAE92..GTI198705-199205

SHADOW GRAY,TRIM1#

main74223-12080-03iEE90..XL..(GCC,GEN)198908-199009

SHADOW GRAY,TRIM1#

sub74223-12080

main74223-12080-04iEE90..XL..(GCC,GEN)198908-199001

DARK BLUE,TRIM8#

sub74223-12080

main74223-12080-06iEE90..LHD..XL198908-199001

BROWN,TRIM4#

sub74223-12080

main74223-12080-B0iEE90..XL..(GCC,GEN)199009-199207

SHADOW GRAY,TRIM1#

sub74223-12080

main74223-12080-E0iEE90..LHD..XL199001-199207

BROWN,TRIM4#

sub74223-12080

main74223-12080-J0iEE90..XL..(GCC,GEN)199001-199207

DARK BLUE,TRIM8#

sub74223-12080

main74223-12090-03iAE92..GTI198908-199205

W(*PW),SHADOW GRAY,TRIM1#,TYPE A

main74223-12100-03iAE92..GTI198908-199205

W(*PW),SHADOW GRAY,TRIM1#,TYPE B

74224CAP, DOOR ARMREST, LH

main74223-12100-03iAE92..GTI198908-199205

W(*PW),SHADOW GRAY,TRIM1#,TYPE B

main74224-12020-03iAE92..GTI198705-199205

SHADOW GRAY,TRIM1#

main74224-12030-03iEE90..XL..(GCC,GEN)198908-199009

SHADOW GRAY,TRIM1#

sub74224-12030

main74224-12030-04iEE90..LHD..XL198908-199001

DARK BLUE,TRIM8#

sub74224-12030

main74224-12030-06iEE90..LHD..XL198908-199001

BROWN,TRIM4#

sub74224-12030

main74224-12030-B0iEE90..XL..(GCC,GEN)199009-199207

SHADOW GRAY,TRIM1#

sub74224-12030

main74224-12030-E0iEE90..LHD..XL199001-199207

BROWN,TRIM4#

sub74224-12030

main74224-12030-J0iEE90..XL..(GCC,GEN)199001-199207

DARK BLUE,TRIM8#

sub74224-12030

main74224-12040-03iAE92..GTI198908-199205

W(*PW),SHADOW GRAY,TRIM1#,TYPE A

74230ARMREST ASSY, REAR, RH

main74210-12110-03iAE92,EE90..5D..(SR5,XL)..(GCC,GEN)198705-199009

GRAY,TRIM1#

sub74210-12110

main74210-12110-05iEE90..5D..XL..(GCC,GEN)198705-198908

DARK BEIGE,TRIM4#

sub74210-12110

main74210-12110-24iEE90..XL..(GCC,GEN)198705-198909

DARK BLUE,TRIM8#

sub74210-12110

main74210-12110-36iEE90..LHD..XL198908-198909

BROWN,TRIM4#

sub74210-12110

main74210-12110-B1iAE92,EE90..(STD,XL)..SA199008-199308

SHADOW GRAY

sub74210-12110

main74210-12110-B1iAE92,EE90..5D..(SR5,XL)..(GCC,GEN)199009-199308

SHADOW GRAY,TRIM1#

sub74210-12110

main74210-12110-E0iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198909-199308

BROWN,TRIM4#

sub74210-12110

main74210-12110-J0iEE90..XL..(GCC,GEN)198909-199207

DARK BLUE,TRIM8#

sub74210-12110

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12040-03iEE90..RHD..5F..XL..GEN198908-199206

SHADOW GRAY,TRIM1#

main74231-12040-04iEE90..RHD..5F..XL..GEN198908-199206

DARK BLUE,TRIM8#

main74231-12060-03iAE92,EE90..GL,GT198908-199308

SHADOW GRAY,TRIM1#

main74231-12060-04iEE90..GL198908-199206

DARK BLUE,TRIM8#

main74231-12090-03iAE92..GTI198908-199205

SHADOW GRAY,TRIM1#

main74231-12110-03iAE92..RHD..XL..GEN198908-199106

SHADOW GRAY,TRIM1#

main74231-12110-04iAE92..RHD..XL..GEN198908-199106

DARK BLUE,TRIM8#

main74231-12120-03iAE92..LHD..GEN198908-199106

SHADOW GRAY,TRIM1#

main74231-12120-04iAE92..LHD..GEN198908-199106

DARK BLUE,TRIM8#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74231-12050-03iEE90..LHD..XL198908-199009

W(*PW),SHADOW GRAY,TRIM1#

sub74231-12050

main74231-12050-04iEE90..LHD..XL198908-199001

W(*PW),DARK BLUE,TRIM8#

sub74231-12050

main74231-12050-06iEE90..LHD..XL198908-199001

W(*PW),BROWN,TRIM4#

sub74231-12050

main74231-12050-B0iEE90..LHD..XL199009-199207

W(*PW),SHADOW GRAY,TRIM1#

sub74231-12050

main74231-12050-E0iEE90..LHD..XL199001-199207

W(*PW),BROWN,TRIM4#

sub74231-12050

main74231-12050-J0iEE90..LHD..XL199001-199207

W(*PW),DARK BLUE,TRIM8#

sub74231-12050

main74232-12030-03iEE90..RHD..XL..GEN198910-199206

SHADOW GRAY,TRIM1#

main74232-12030-04iEE90..RHD..XL..GEN198910-199206

DARK BLUE,TRIM8#

main74232-12040-03iEE90..LHD..XL198908-199009

W(*PW & *EL),SHADOW GRAY,TRIM1#

sub74232-12040

main74232-12040-04iEE90..LHD..XL198908-199001

W(*PW & *EL),DARK BLUE,TRIM8#

sub74232-12040

main74232-12040-06iEE90..LHD..XL198908-199001

W(*PW & *EL),BROWN,TRIM4#

sub74232-12040

main74232-12040-B0iEE90..LHD..XL199009-199207

W(*PW & *EL),SHADOW GRAY,TRIM1#

sub74232-12040

main74232-12040-E0iEE90..LHD..XL199001-199207

W(*PW & *EL),BROWN,TRIM4#

sub74232-12040

main74232-12040-J0iEE90..LHD..XL199001-199207

W(*PW & *EL),DARK BLUE,TRIM8#

sub74232-12040

main74232-12050-03iAE92,EE90..GL,GT198908-199308

SHADOW GRAY,TRIM1#

main74232-12050-04iEE90..GL198908-199206

DARK BLUE,TRIM8#

main74232-12070-03iAE92..GTI198908-199205

SHADOW GRAY,TRIM1#

main74232-12090-03iAE92..RHD..XL..GEN198908-199106

SHADOW GRAY,TRIM1#

main74232-12090-04iAE92..RHD..XL..GEN198908-199106

DARK BLUE,TRIM8#

main74232-12100-03iAE92..LHD..GEN198908-199106

SHADOW GRAY,TRIM1#

main74232-12100-04iAE92..LHD..GEN198908-199106

DARK BLUE,TRIM8#

74240ARMREST ASSY, REAR, LH

main74210-12110-03iAE92,EE90..5D..(SR5,XL)..(GCC,GEN)198705-199009

GRAY,TRIM1#

sub74210-12110

main74210-12110-05iEE90..5D..XL..(GCC,GEN)198705-198908

DARK BEIGE,TRIM4#

sub74210-12110

main74210-12110-24iEE90..LHD..5D..XL198705-198909

DARK BLUE,TRIM8#

sub74210-12110

main74210-12110-36iEE90..LHD..XL198908-198909

BROWN,TRIM4#

sub74210-12110

main74210-12110-B1iEE90..5F..GL199009-199308

SHADOW GRAY,TRIM1#

sub74210-12110

main74210-12110-B1iAE92,EE90..(STD,XL)..SA199008-199308

SHADOW GRAY

sub74210-12110

main74210-12110-E0iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198909-199308

BROWN,TRIM4#

sub74210-12110

main74210-12110-J0iEE90..5F..GL198909-199207

DARK BLUE,TRIM8#

sub74210-12110

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-12010-03iAE92..GTI198705-199205

SHADOW GRAY,TRIM1#

main74630-12030-03iAE92..GTI198908-199205

W(*PW & *EL),SHADOW GRAY,TRIM1#

main74630-12040-03iAE92..XL..GEN198908-199106

SHADOW GRAY,TRIM1#

main74630-12040-04iAE92..XL..GEN198908-199106

DARK BLUE,TRIM8#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-12010-03iAE92..GTI198705-199205

SHADOW GRAY,TRIM1#

main74640-12030-03iAE92..GTI198908-199205

W(*PW & *EL),SHADOW GRAY,TRIM1#

main74640-12040-03iAE92..XL..GEN198908-199106

SHADOW GRAY,TRIM1#

main74640-12040-04iAE92..XL..GEN198908-199106

DARK BLUE,TRIM8#

74641BGRIP, DOOR ASSIST

main74641-16010-15iEE90..5D..STD..GEN198708-198908

DARK BEIGE,TRIM4#

sub74641-16010

main74641-16010-23iEE90..5D..STD..GEN198705-199205

GRAY,TRIM1#

sub74641-16010

main74641-16010-44iEE90..STD..GEN198908-199205

DARK BLUE,TRIM8#

sub74641-16010

74811BHANDLE, DOOR PULL

main74811-12040-03iAE92,EE90..GL,GT198705-199308

SHADOW GRAY,TRIM1#

sub74811-12040

main74811-12040-04iEE90..GL198705-199206

DARK BLUE,TRIM8#

sub74811-12040

main74811-12040-05iEE90..GL198705-198908

DARK BEIGE,TRIM4#

sub74811-12040

main74811-12050-03iAE92..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

sub74811-12050

main74811-12050-04iAE92..XL..GEN198705-199106

DARK BLUE,TRIM8#

sub74811-12050

main74811-12050-05iAE92..LHD..XL198705-198908

DARK BEIGE,TRIM4#

sub74811-12050

9015960081

main90159-60081

9016360006

main90163-60006

9016460013

main90164-60013

9016460014

main90164-60014

9016740027

main90167-40027

9018906010

main90189-06010

9018906018

main90189-06018

9018906139

main90189-06139

9354056025

main93540-56025

23 parts on this diagram · 3 diagrams in section
