EPC Data

FRONT SEAT & SEAT TRACK

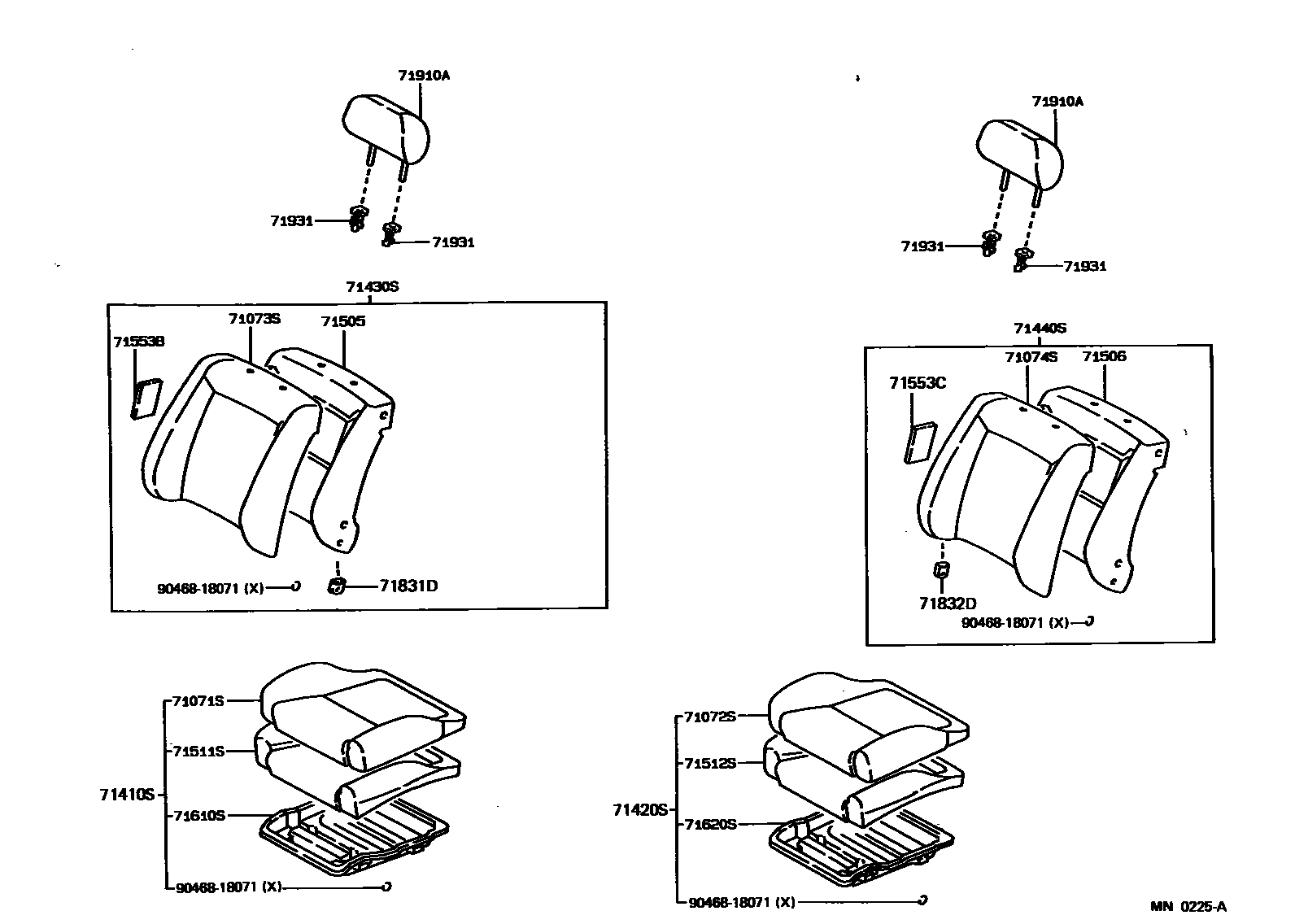

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1H140-03i198705-198908
SADOW GRAY,TRIM1#
main71071-1H141-03i198908-199205
SHADOW GRAY,TRIM1#
main71071-1H150-03i198705-199206
SHADOW GRAY,TRIM1#
main71071-1H150-04i198908-199206
DARK BLUE,TRIM8#
main71071-1H150-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1H170-03i198705-198908
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H170-05i198705-198908
W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H171-03i198908-199206
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H171-04i198908-199206
W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H180-03i198705-198908
SHADOW GRAY,TRIM1#
main71071-1H180-04i198705-198908
BLUE,TRIM8#
main71071-1H180-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1H181-03i198908-199206
SHADOW GRAY,TRIM1#
main71071-1H181-04i198908-199206
DARK BLUE,TRIM8#
main71071-1H210-03i198705-198908
SADOW GRAY,TRIM1#
main71071-1H280-03i198808-198811
W(FULL FABRIC),SHADOW GRAY,TRIM1#
main71071-1H280-04i198808-198811
W(FULL FABRIC),BLUE,TRIM8#
main71071-1H280-05i198811-198908
W(FULL FABRIC),DARK BEIGE,TRIM4#
main71071-1H281-03i198908-199205
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H281-04i198908-199205
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1H281-06i198908-199206
W(FULL FABRIC),BROWN,TRIM4#
main71071-1H340-03i198810-198908
W(FULL FABRIC & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H340-05i198705-198810
W(FULL FABRIC & 2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H341-03i198908-199206
W(FULL FABRIC & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H341-04i198908-199206
W(FULL FABRIC & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H470-03i198705-198908
SHADOW GRAY,TRIM1#
main71071-1H470-04i198705-198908
DARK BLUE,TRIM8#
main71071-1H470-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1H520-03i198705-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H520-04i198705-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1H520-05i198705-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71071-1H550-03i198705-198908
SHADOW GRAY,TRIM1#
main71071-1H550-04i198705-198908
DARK BLUE,TRIM8#
main71071-1H550-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1K010-03i198708-198908
W(FULL FABRIC),SHADOW GRAY,TRIM1#
main71071-1K010-04i198708-198908
W(FULL FABRIC),DARK BLUE,TRIM8#
main71071-1K010-05i198708-198908
W(FULL FABRIC),DARK BEIGE,TRIM4#
main71071-1K011-03i198908-199207
W(FULL FABRIC),SHADOW GRAY,TRIM1#
main71071-1K011-04i198908-199207
W(FULL FABRIC),DARK BLUE,TRIM8#
main71071-1K011-06i198908-199207
W(FULL FABRIC),BROWN,TRIM4#
main71071-1K020-03i198708-199207
SHADOW GRAY,TRIM1#
main71071-1K020-04i198708-199207
DARK BLUE,TRIM8#
main71071-1K020-05i198708-198908
DARK BEIGE,TRIM4#
main71071-1K140-03i198908-199106
SHADOW GRAY,TRIM1#
main71071-1K140-04i198908-199106
DARK BLUE,TRIM8#
main71071-1K170-03i198908-199106
SHADOW GRAY,TRIM1#
main71071-1K170-04i198908-199106
DARK BLUE,TRIM8#
main71071-1K330-03i198908-199207
SHADOW GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-1H150-03i198705-199206
SHADOW GRAY,TRIM1#
main71071-1H150-04i198908-199206
DARK BLUE,TRIM8#
main71071-1H150-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1H180-03i198705-198908
SHADOW GRAY,TRIM1#
main71071-1H180-04i198705-198908
BLUE,TRIM8#
main71071-1H180-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1H210-03i198705-198908
SADOW GRAY,TRIM1#
main71071-1H211-03i198908-199205
SHADOW GRAY,TRIM1#
main71071-1H230-03i198705-198908
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H230-04i198705-198908
W(2WAY VERTICAL SEAT),BLUE,TRIM8#
main71071-1H230-05i198705-198908
W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H280-03i198811-198908
W(FULL FABRIC),SHADOW GRAY,TRIM1#
main71071-1H280-04i198705-198808
W(FULL FABRIC),BLUE,TRIM8#
main71071-1H280-05i198811-198908
W(FULL FABRIC),DARK BEIGE,TRIM4#
main71071-1H281-03i198908-199206
W(FULL FABRIC),SHADOW GRAY,TRIM1#
main71071-1H281-04i198908-199206
W(FULL FABRIC),DARK BLUE,TRIM8#
main71071-1H281-06i198908-199206
W(FULL FABRIC),BROWN,TRIM4#
main71071-1H330-03i198705-198908
W(FULL FABRIC & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H330-04i198705-198908
W(FULL FABRIC & 2 WAY VERTICAL SEAT),BLUE,TRIM8#
main71071-1H330-05i198705-198908
W(FULL FABRIC & 2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H331-03i198908-199206
W(FULL FABRIC & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H331-04i198908-199206
W(FULL FABRIC & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H331-06i198908-199206
W(FULL FABRIC & 2 WAY VERTICAL SEAT),BROWN,TRIM4#
main71071-1H350-03i198705-198908
SADOW GRAY,TRIM1#
main71071-1H470-03i198705-198908
SHADOW GRAY,TRIM1#
main71071-1H470-04i198705-198908
DARK BLUE,TRIM8#
main71071-1H470-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1H520-03i198705-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H520-04i198705-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1H520-05i198705-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71071-1H550-03i198705-198908
SHADOW GRAY,TRIM1#
main71071-1H550-04i198705-198908
DARK BLUE,TRIM8#
main71071-1H550-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1H890-03i198708-198908
W(FULL FABRIC & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H890-04i198708-198908
W(FULL FABRIC & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H890-05i198708-198908
W(FULL FABRIC & 2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H891-03i198908-199207
W(FULL FABRIC & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H891-04i198908-199207
W(FULL FABRIC & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H891-06i198908-199207
W(FULL FABRIC & 2 WAY VERTICAL SEAT),BROWN,TRIM4#
main71071-1K010-03i198708-198908
W(FULL FABRIC),SHADOW GRAY,TRIM1#
main71071-1K010-04i198708-198908
W(FULL FABRIC),DARK BLUE,TRIM8#
main71071-1K010-05i198708-198908
W(FULL FABRIC),DARK BEIGE,TRIM4#
main71071-1K011-03i198908-199207
W(FULL FABRIC),SHADOW GRAY,TRIM1#
main71071-1K011-04i198908-199207
W(FULL FABRIC),DARK BLUE,TRIM8#
main71071-1K011-06i198908-199207
W(FULL FABRIC),BROWN,TRIM4#
main71071-1K020-03i198708-199207
SHADOW GRAY,TRIM1#
main71071-1K020-04i198708-199207
DARK BLUE,TRIM8#
main71071-1K020-05i198708-198908
DARK BEIGE,TRIM4#
main71071-1K100-03i198908-199206
SHADOW GRAY,TRIM1#
main71071-1K100-04i198908-199206
DARK BLUE,TRIM8#
main71071-1K140-03i198908-199106
SHADOW GRAY,TRIM1#
main71071-1K140-04i198908-199106
DARK BLUE,TRIM8#
main71071-1K170-03i198908-199106
SHADOW GRAY,TRIM1#
main71071-1K170-04i198908-199106
DARK BLUE,TRIM8#
main71071-1K340-03i198908-199207
SHADOW GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1H200-03i198908-199308
SHADOW GRAY,TRIM1#
main71073-1H201-03i198908-199205
SHADOW GRAY,TRIM1#
main71073-1H210-03i198705-199206
W(HEADREST),SHADOW GRAY,TRIM1#
main71073-1H210-04i198908-199206
W(HEADREST),DARK BLUE,TRIM8#
main71073-1H210-05i198705-198908
W(HEADREST),DARK BEIGE,TRIM4#
main71073-1H280-03i198805-198908
W(FULL FABRIC SEAT & HEADREST),SHADOW GRAY,TRIM1#
main71073-1H280-04i198705-198908
W(FULL FABRIC SEAT),BLUE,TRIM8#
main71073-1H280-05i198705-198905
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71073-1H281-03i198908-199206
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71073-1H281-04i198908-199205
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71073-1H281-06i198908-199206
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71073-1H310-03i198705-198908
SHADOW GRAY,TRIM1#
main71073-1H310-04i198705-198908
BLUE,TRIM8#
main71073-1H310-05i198705-198908
DARK BEIGE,TRIM4#
main71073-1H311-03i198908-199206
SHADOW GRAY,TRIM1#
main71073-1H311-04i198908-199206
DARK BLUE,TRIM8#
main71073-1H320-03i198705-198908
W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71073-1H320-05i198705-198908
W(2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71073-1H360-03i198705-199206
SHADOW GRAY,TRIM1#
main71073-1H360-04i198908-199206
DARK BLUE,TRIM8#
main71073-1H360-05i198705-198908
DARK BEIGE,TRIM4#
main71073-1H400-03i198705-198908
SHADOW GRAY,TRIM1#
main71073-1H400-04i198705-198908
DARK BLUE,TRIM8#
main71073-1H400-05i198705-198908
DARK BEIGE,TRIM4#
main71073-1H440-03i198705-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71073-1H440-04i198705-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71073-1H440-05i198705-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71073-1H480-03i198705-198908
SHADOW GRAY,TRIM1#
main71073-1H480-04i198705-198908
DARK BLUE,TRIM8#
main71073-1H480-05i198705-198908
DARK BEIGE,TRIM4#
main71073-1H510-03i198705-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71073-1H510-05i198705-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71073-1H610-03i198708-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71073-1H610-04i198708-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71073-1H610-05i198708-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71073-1H611-03i198908-199207
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71073-1H611-04i198908-199207
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71073-1H611-06i198908-199207
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71073-1H620-03i198708-199207
SHADOW GRAY,TRIM1#
main71073-1H620-04i198708-199207
DARK BLUE,TRIM8#
main71073-1H620-05i198708-198905
DARK BEIGE,TRIM4#
main71073-1H720-03i198908-199106
SHADOW GRAY,TRIM1#
main71073-1H720-04i198908-199106
DARK BLUE,TRIM8#
main71073-1H750-03i198908-199106
SHADOW GRAY,TRIM1#
main71073-1H750-04i198908-199106
DARK BLUE,TRIM8#
main71073-1H830-03i198908-199207
SHADOW GRAY,TRIM1#
main71074-1E160-03i198705-198908
SHADOW GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-1H750-03i198908-199106
SHADOW GRAY,TRIM1#
main71073-1H750-04i198908-199106
DARK BLUE,TRIM8#
main71074-1E160-03i198705-198908
SHADOW GRAY,TRIM1#
main71074-1E161-03i198908-199205
SHADOW GRAY,TRIM1#
main71074-1E170-03i198705-199206
W(HEADREST),SHADOW GRAY,TRIM1#
main71074-1E170-04i198908-199206
W(HEADREST),DARK BLUE,TRIM8#
main71074-1E170-05i198705-198908
W(HEADREST),DARK BEIGE,TRIM4#
main71074-1E190-03i198705-198908
W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71074-1E190-04i198705-198908
W(2 WAY VERTICAL SEAT),BLUE,TRIM8#
main71074-1E190-05i198705-198908
W(2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71074-1E200-03i198705-198908
SHADOW GRAY,TRIM1#
main71074-1E240-03i198805-198908
W(FULL FABRIC SEAT & HEADREST),SHADOW GRAY,TRIM1#
main71074-1E240-04i198705-198908
W(FULL FABRIC SEAT),BLUE,TRIM8#
main71074-1E240-05i198805-198908
W(FULL FABRIC SEAT & HEADREST),DARK BEIGE,TRIM4#
main71074-1E241-03i198908-199205
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71074-1E241-04i198908-199205
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71074-1E241-06i198908-199206
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71074-1E270-03i198705-198908
SHADOW GRAY,TRIM1#
main71074-1E270-04i198705-198908
BLUE,TRIM8#
main71074-1E270-05i198705-198908
DARK BEIGE,TRIM4#
main71074-1E271-03i198908-199206
SHADOW GRAY,TRIM1#
main71074-1E271-04i198908-199206
DARK BLUE,TRIM8#
main71074-1E320-03i198705-199206
SHADOW GRAY,TRIM1#
main71074-1E320-04i198908-199206
DARK BLUE,TRIM8#
main71074-1E320-05i198705-198908
DARK BEIGE,TRIM4#
main71074-1E340-03i198705-198908
SHADOW GRAY,TRIM1#
main71074-1E340-04i198705-198908
DARK BLUE,TRIM8#
main71074-1E340-05i198705-198908
DARK BEIGE,TRIM4#
main71074-1E380-03i198705-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71074-1E380-04i198705-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71074-1E380-05i198705-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71074-1E430-03i198705-198908
SHADOW GRAY,TRIM1#
main71074-1E430-04i198705-198908
DARK BLUE,TRIM8#
main71074-1E430-05i198705-198908
DARK BEIGE,TRIM4#
main71074-1E470-03i198705-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71074-1E470-05i198705-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71074-1E570-03i198708-199207
SHADOW GRAY,TRIM1#
main71074-1E570-04i198708-199207
DARK BLUE,TRIM8#
main71074-1E570-05i198708-198908
DARK BEIGE,TRIM4#
main71074-1E580-03i198708-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71074-1E580-04i198708-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71074-1E580-05i198708-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71074-1E581-03i198908-199207
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71074-1E581-04i198908-199207
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71074-1E581-06i198908-199207
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71074-1E710-03i198908-199106
SHADOW GRAY,TRIM1#
main71074-1E710-04i198908-199106
DARK BLUE,TRIM8#
main71074-1E820-03i198908-199207
SHADOW GRAY,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-1H480-03i198705-198908
***,SADOW GRAY,TRIM1#
main71410-1H481-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71410-1H490-03i198705-198908
***,SADOW GRAY,TRIM1#
main71410-1H500-03i198705-199206
***,SHADOW GRAY,TRIM1#
main71410-1H500-04i198908-199206
***,DARK BLUE,TRIM8#
main71410-1H500-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1H510-03i198705-198908
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H510-05i198705-198908
***,W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H511-03i198908-199206
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H511-04i198908-199206
***,W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1H520-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71410-1H520-04i198705-198908
***,BLUE,TRIM8#
main71410-1H520-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1H521-03i198908-199206
***,SHADOW GRAY,TRIM1#
main71410-1H521-04i198908-199206
***,DARK BLUE,TRIM8#
main71410-1H660-03i198705-198808
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H660-04i198705-198908
***,W(FULL FABRIC SEAT),BLUE,TRIM8#
main71410-1H660-05i198808-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71410-1H661-03i198908-199205
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1H661-04i198908-199206
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1H661-06i198908-199206
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71410-1H730-03i198901-198908
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H730-05i198901-198908
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H731-03i198908-199206
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H731-04i198908-199206
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1H870-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71410-1H870-04i198705-198908
***,DARK BLUE,TRIM8#
main71410-1H870-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1H891-03i198908-199106
***,SHADOW GRAY,TRIM1#
main71410-1H891-04i198908-199106
***,DARK BLUE,TRIM8#
main71410-1K030-03i198705-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K030-04i198705-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1K030-05i198705-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71410-1K060-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71410-1K060-04i198705-198908
***,DARK BLUE,TRIM8#
main71410-1K060-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1K400-03i198708-199207
***,SHADOW GRAY,TRIM1#
main71410-1K400-04i198708-199207
***,DARK BLUE,TRIM8#
main71410-1K400-05i198708-198908
***,DARK BEIGE,TRIM4#
main71410-1K410-03i198708-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K410-04i198708-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1K410-05i198708-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71410-1K411-03i198908-199207
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K411-04i198908-199207
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1K411-06i198908-199207
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71410-1K530-03i198908-199207
***,SHADOW GRAY,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-1H490-03i198705-198908
***,SADOW GRAY,TRIM1#
main71410-1H491-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71410-1H500-03i198705-199206
***,SHADOW GRAY,TRIM1#
main71410-1H500-04i198705-198908
***,DARK BLUE,TRIM8#
main71410-1H500-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1H520-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71410-1H520-04i198705-198908
***,BLUE,TRIM8#
main71410-1H520-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1H530-03i198705-198908
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H530-04i198705-198908
***,W(2WAY VERTICAL SEAT),BLUE,TRIM8#
main71410-1H530-05i198705-198908
***,W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H560-03i198705-198908
***,SADOW GRAY,TRIM1#
main71410-1H660-03i198705-198808
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H660-04i198705-198908
***,W(FULL FABRIC SEAT),BLUE,TRIM8#
main71410-1H660-05i198705-198808
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H661-03i198908-199205
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1H661-04i198908-199206
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1H661-06i198908-199206
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71410-1H740-03i198901-198908
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H740-04i198705-198908
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),BLUE,TRIM8#
main71410-1H740-05i198901-198908
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H741-03i198908-199206
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H741-04i198908-199206
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1H741-06i198908-199206
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),BROWN,TRIM4#
main71410-1H870-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71410-1H870-04i198705-198908
***,DARK BLUE,TRIM8#
main71410-1H870-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1H891-03i198908-199106
***,SHADOW GRAY,TRIM1#
main71410-1H891-04i198908-199106
***,DARK BLUE,TRIM8#
main71410-1K030-03i198705-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K030-04i198705-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1K030-05i198705-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71410-1K060-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71410-1K060-04i198705-198908
***,DARK BLUE,TRIM8#
main71410-1K060-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1K280-03i198908-199206
***,SHADOW GRAY,TRIM1#
main71410-1K280-04i198908-199206
***,DARK BLUE,TRIM8#
main71410-1K400-03i198708-199207
***,SHADOW GRAY,TRIM1#
main71410-1K400-04i198708-199207
***,DARK BLUE,TRIM8#
main71410-1K400-05i198708-198908
***,DARK BEIGE,TRIM4#
main71410-1K410-03i198708-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K410-04i198708-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1K410-05i198708-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71410-1K411-03i198908-199207
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K411-04i198908-199207
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1K411-06i198908-199207
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71410-1K420-03i198708-198908
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1K420-04i198708-198908
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1K420-05i198708-198908
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1K421-03i198908-199207
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1K421-04i198908-199207
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1K421-06i198908-199207
***,W(FULL FABRIC SEAT & 2WAY VERTICAL SEAT),BROWN,TRIM4#
main71410-1K540-03i198908-199207
***,SHADOW GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-1H510-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71430-1H511-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71430-1H520-03i198705-199206
***,W(HEADREST),SHADOW GRAY,TRIM1#
main71430-1H520-04i198705-198908
***,W(HEADREST),DARK BLUE,TRIM8#
main71430-1H520-05i198705-198908
***,W(HEADREST),DARK BEIGE,TRIM4#
main71430-1H530-03i198705-198908
***,W(2 WAY VERTICAL SEAT),SHADOW GRAY,SHADOW GRAY,TRIM1#
main71430-1H530-05i198705-198908
***,W(2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71430-1H531-03i198908-199206
***,W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71430-1H531-04i198908-199206
***,W(2 WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71430-1H540-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71430-1H540-04i198705-198908
***,BLUE,TRIM8#
main71430-1H540-05i198705-198908
***,DARK BEIGE,TRIM4#
main71430-1H541-03i198908-199206
***,SHADOW GRAY,TRIM1#
main71430-1H541-04i199105-199206
***,NEW ZEALAND SPEC & W(VINYL HEAD REST),DARK BLUE,TRIM8#
main71430-1H610-03i198805-198908
***,W(FULL FABRIC SEAT & HEADREST),SHADOW GRAY,TRIM1#
main71430-1H610-04i198705-198908
***,W(FULL FABRIC SEAT),BLUE,TRIM8#
main71430-1H610-05i198705-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71430-1H611-03i198908-199206
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71430-1H611-04i198908-199205
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71430-1H611-06i198908-199206
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71430-1H680-03i198705-199206
***,SHADOW GRAY,TRIM1#
main71430-1H680-04i198908-199206
***,DARK BLUE,TRIM8#
main71430-1H680-05i198705-198908
***,DARK BEIGE,TRIM4#
main71430-1H750-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71430-1H750-04i198705-198908
***,DARK BLUE,TRIM8#
main71430-1H750-05i198705-198908
***,DARK BEIGE,TRIM4#
main71430-1H771-03i198908-199106
***,SHADOW GRAY,TRIM1#
main71430-1H771-04i198908-199106
***,DARK BLUE,TRIM8#
main71430-1H800-03i198705-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71430-1H800-04i198705-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71430-1H800-05i198705-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71430-1H830-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71430-1H830-04i198705-198908
***,DARK BLUE,TRIM8#
main71430-1H830-05i198705-198908
***,DARK BEIGE,TRIM4#
main71430-1H860-03i198705-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71430-1H860-05i198705-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71430-1K080-03i198708-199207
***,SHADOW GRAY,TRIM1#
main71430-1K080-04i198708-199207
***,DARK BLUE,TRIM8#
main71430-1K080-05i198708-198908
***,DARK BLUE,TRIM4#
main71430-1K090-03i198708-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71430-1K090-04i198708-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71430-1K090-05i198708-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71430-1K091-03i198908-199207
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71430-1K091-04i198908-199207
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71430-1K091-06i198908-199207
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71430-1K160-03i198908-199207
***,SHADOW GRAY,TRIM1#
main71440-1H450-03i198705-198908
***,SHADOW GRAY,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-1H450-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71440-1H451-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71440-1H460-03i198705-199206
***,W(HEADREST),SHADOW GRAY,TRIM1#
main71440-1H460-04i198705-198908
***,W(HEADREST),DARK BLUE,TRIM8#
main71440-1H460-05i198705-198908
***,W(HEADREST),DARK BEIGE,TRIM4#
main71440-1H470-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71440-1H470-04i198705-198908
***,BLUE,TRIM8#
main71440-1H470-05i198705-198908
***,DARK BEIGE,TRIM4#
main71440-1H471-03i198908-199206
***,SHADOW GRAY,TRIM1#
main71440-1H471-04i198908-199206
***,DARK BLUE,TRIM8#
main71440-1H480-03i198705-198908
***,W(2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71440-1H480-04i198705-198908
***,W(2 WAY VERTICAL SEAT),BLUE,TRIM8#
main71440-1H480-05i198705-198908
***,W(2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71440-1H490-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71440-1H540-03i198805-198908
***,W(FULL FABRIC SEAT & HEADREST),SHADOW GRAY,TRIM1#
main71440-1H540-04i198705-198908
***,W(FULL FABRIC SEAT),BLUE,TRIM8#
main71440-1H540-05i198705-198805
***,W(FULL FABRIC SEAT & HEADREST),DARK BEIGE,TRIM4#
main71440-1H541-03i198908-199205
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71440-1H541-04i198908-199205
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71440-1H541-06i198908-199206
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71440-1H600-03i198705-199206
***,SHADOW GRAY,TRIM1#
main71440-1H600-04i198705-198908
***,DARK BLUE,TRIM8#
main71440-1H600-05i198705-198908
***,DARK BEIGE,TRIM4#
main71440-1H650-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71440-1H650-04i198705-198908
***,DARK BLUE,TRIM8#
main71440-1H650-05i198705-198908
***,DARK BEIGE,TRIM4#
main71440-1H671-03i198908-199106
***,SHADOW GRAY,TRIM1#
main71440-1H671-04i198908-199106
***,DARK BLUE,TRIM8#
main71440-1H690-03i198705-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71440-1H690-04i198705-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71440-1H690-05i198705-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71440-1H750-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71440-1H750-04i198705-198908
***,DARK BLUE,TRIM8#
main71440-1H750-05i198705-198908
***,DARK BEIGE,TRIM4#
main71440-1H780-03i198705-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71440-1H780-05i198705-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71440-1H880-03i198708-199207
***,SHADOW GRAY,TRIM1#
main71440-1H880-04i198708-199207
***,DARK BLUE,TRIM8#
main71440-1H880-05i198708-198908
***,DARK BEIGE,TRIM4#
main71440-1H890-03i198708-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71440-1H890-04i198708-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71440-1H890-05i198708-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71440-1H891-03i198908-199207
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71440-1H891-04i198908-199207
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71440-1H891-06i198908-199207
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71440-1K200-03i198908-199207
***,SHADOW GRAY,TRIM1#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-12030i198705-199206
W(2WAY VERTICAL SEAT)
main71505-12050i198705-199308
main71505-12060i198705-199206
main71505-12070i198705-199106
main71505-12090i198705-199106
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71505-12070i198705-199106
main71506-12030i198705-198908
W(2 WAY VERTICAL SEAT)
main71506-12040i198705-199308
main71506-12050i198705-199206
main71506-12060i198705-199106
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12580i198705-199308
main71511-12590i198705-199308
main71511-12610i198705-199206
main71511-12640i198705-198908
main71511-12730i198908-199106
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-12580i198705-199308
main71511-12590i198705-199308
main71511-12610i198705-199206
main71511-12640i198705-198908
main71511-12730i198908-199106
71553BPAD, FRONT SEATBACK, B
main71553-12200i198705-198908
main71553-12220i198908-199106
main71553-12230×8i198705-198908
71553CPAD, FRONT SEATBACK, C
main71553-12200i198705-198908
main71553-12220i198908-199106
main71553-12230×4i198908-199106
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-12300i198705-199106
main71610-12320i198705-199106
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-12300i198705-199106
main71610-12320i198705-199106
71831DCOVER, FRONT SEAT HINGE, RH
main71831-12010i198705-199308
71832DCOVER, FRONT SEAT HINGE, LH
main71831-12010i198705-199308
71910AHEADREST ASSY, FRONT SEAT
main71910-12710-03×2i198705-198804
SHADOW GRAY,TRIM1#
main71910-12710-04×2i198705-198804
BLUE,TRIM8#
main71910-12710-05×2i198705-198804
DARK BEIGE,TRIM4#
main71910-12710-13×2i198804-198908
SHADOW GRAY,TRIM1#
main71910-12710-14×2i198804-198908
DARK BLUE,TRIM8#
main71910-12710-15×2i198804-198908
DARK BEIGE,TRIM4#
main71910-12711-03×2i198908-199206
SHADOW GRAY,TRIM1#
main71910-12711-04×2i198908-199206
DARK BLUE,TRIM8#
main71910-12760-03×2i198705-198808
SHADOW GRAY,TRIM1#
main71910-12760-04×2i198708-198908
DARK BLUE,TRIM8#
main71910-12760-05×2i198705-198808
DARK BEIGE,TRIM4#
main71910-12780-03×2i198705-198708
SHADOW GRAY,TRIM1#
main71910-12780-04×2i198705-198708
DARK BLUE,TRIM8#
main71910-12780-05×2i198705-198708
DARK BEIGE,TRIM4#
main71910-12790-03×2i198808-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71910-12790-04×2i198705-198908
W(FULL FABRIC SEAT),BLUE,TRIM8#
main71910-12790-05×2i198705-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71910-12791-03×2i198908-199207
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71910-12791-04×2i198908-199207
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71910-12791-06×2i198908-199207
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71910-12830-03×2i198705-198908
SHADOW GRAY,TRIM1#
main71910-12830-04×2i198705-198908
DARK BLUE,TRIM8#
main71910-12830-05×2i198705-198908
DARK BEIGE,TRIM4#
main71910-12840-13×2i198908-199308
SHADOW GRAY,TRIM1#
main71910-12871-01×2i198908-199205
BLACK,TRIM1#
main71910-1A101-03×2i198908-199207
SHADOW GRAY,TRIM1#
main71910-1A110-03×2i198908-199008
SHADOW GRAY,TRIM1#
main71910-1A110-06×2i198908-198909
BROWN,TRIM4#
main71910-1A110-B0×2i199008-199206
W(VINYL HEADREST),SHADOW GRAY,TRIM1#
main71910-1A110-E1×2i198909-199206
W(VINYL HEADREST),BROWN,TRIM4#
main71910-1A110-J0×2i198908-199207
DARK BLUE,TRIM8#
main71910-1A151-03×2i198908-199106
SHADOW GRAY,TRIM1#
main71910-1A151-04×2i198908-199106
DARK BLUE,TRIM8#
main71910-1A160-03×2i198708-198908
SHADOW GRAY,TRIM1#
main71910-1A160-04×2i198708-198908
DARK BLUE,TRIM8#
main71910-1A160-05×2i198708-198908
DARK BEIGE,TRIM4#
main71910-1A250-03×2i198908-199007
SHADOW GRAY,TRIM1#
main71910-1A250-04×2i198908-199007
DARK BLUE,TRIM8#
71931SUPPORT, FRONT SEAT HEADREST
main71930-12050-03×2i199107-199308
W(LOCK),SHADOW GRAY,TRIM1#
main71930-12050-04×2i198908-199207
W(LOCK),DARK BLUE,TRIM8#
main71930-12050-05×2i198705-198908
W(LOCK),DARK BEIGE,TRIM4#
main71930-12050-16×2i199107-199308
W(LOCK),BROWN,TRIM4#
main71930-12060-03×2i198705-199308
W(LOCK),SHADOW GRAY,TRIM1#
main71931-12010-03×2i199107-199308
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-12010-04×2i198705-198908
W/O(LOCK),DARK BLUE,TRIM8#
main71931-12010-05×2i198705-198908
W/O(LOCK),DARK BEIGE,TRIM4#
main71931-12010-16×2i198908-199107
W/O(LOCK),BROWN,TRIM4#
main71931-12030-03×2i198705-199308
W/O(LOCK),SHADOW GRAY,TRIM1#
9046818071
main90468-18071

21 parts on this diagram · 6 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
