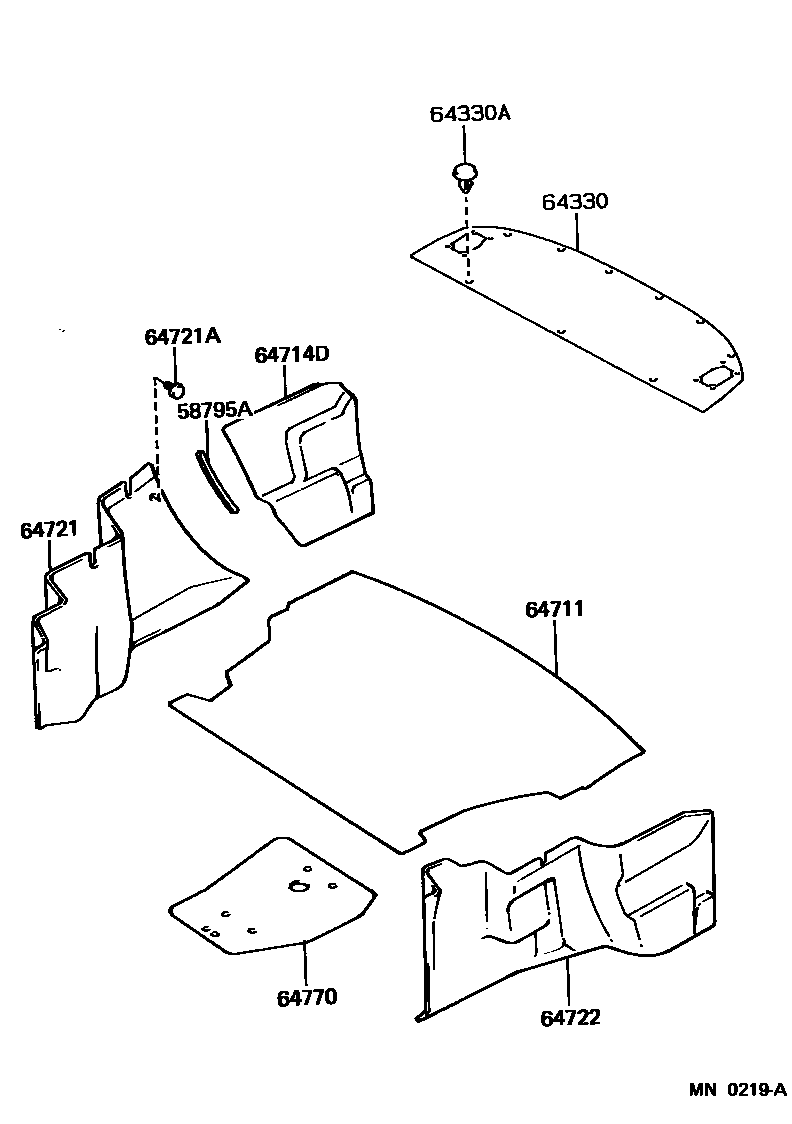

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58795ATRIM, JACK HOUSE OPENING

main58795-16020iAE92..XL..GEN198705-198908

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-1A070-03iAE92..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

sub64330-1A080

main64330-1A070-04iAE92..XL..GEN198705-199106

DARK BLUE,TRIM8#

sub64330-1A080

main64330-1A070-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

sub64330-1A080

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-03×3iAE92..XL..GEN198705-199009

GRAY,TRIM1#

sub90467-08037

main90467-08046-05×3iAE92..XL..GEN198705-198809

DARK BEIGE,TRIM4#

sub90467-08037

main90467-08046-24×3iAE92..XL198705-198807

DARK BLUE,TRIM8#

sub90467-08037

main90467-08046-B1×3iAE92..XL..GEN199009-199106

SHADOW GRAY,TRIM1#

sub90467-08037

main90467-08046-E1×3iAE92..XL..GEN198809-198908

DARK BEIGE,TRIM4#

sub90467-08037

main90467-08046-J0×3iAE92..XL..GEN198807-199106

LIGHT BLUE,TRIM8#

sub90467-08037

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-12230-03iAE92..XL..GEN198705-198908

GRAY,TRIM1#,4#,8#

main64711-12280-03iAE92..XL..GEN198908-199106

GRAY,TRIM1#,8#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-12110-03iAE92..XL..GEN198908-199106

GRAY,TRIM1#,8#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-12060-03iAE92..XL..GEN198908-199106

GRAY,TRIM1#,8#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-B0×2iAE92..XL..GEN198908-199106

LIGHT GRAY,TRIM1#,8#

sub90467-06175

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-12070-03iAE92..XL..GEN198908-199106

GRAY,TRIM1#,8#

64770COVER ASSY, SPARE WHEEL

main64770-12110iAE92..XL..GEN198705-199106

9 parts on this diagram · 1 diagram in section
