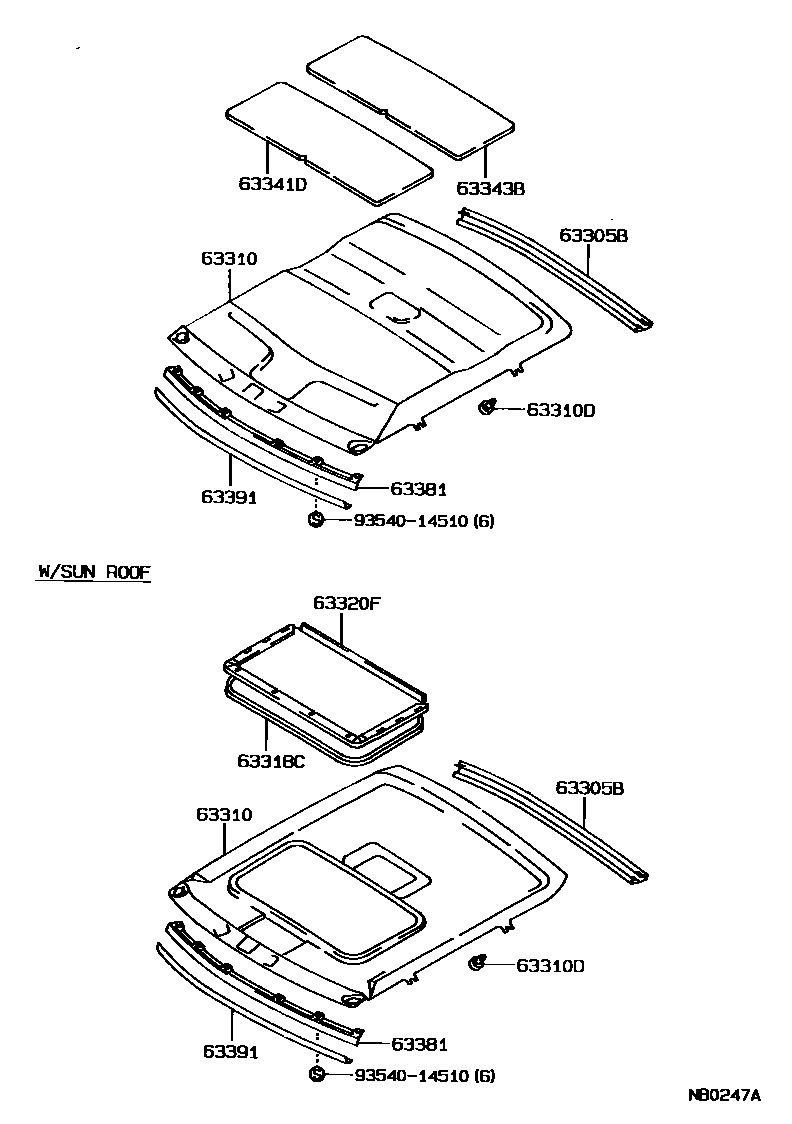

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-12110-03iAE92,EE90..3D,5D198705-199308

SHADOW GRAY,TRIM1#

main63305-12110-04iEE90..LHD..(GL,XL)198705-199207

DARK BLUE,TRIM8#

main63305-12110-05iAE92,EE90..(3D,5D)..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

main63305-12110-06iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198908-199308

BROWN,TRIM4#

main63305-12120-03iAE92..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

main63305-12120-04iAE92..XL..GEN198705-199106

DARK BLUE,TRIM8#

main63305-12120-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

63310HEADLINING ASSY, ROOF

main63310-1A030-03iAE92,EE90..(STD,XL)..SA198705-199308

LIGHT GRAY,TRIM1#,4#

main63310-1A030-03iAE92,EE90..(3D,5D)..(SR5,STD,XL)..(GCC,GEN)198705-199308

LIGHT GRAY,TRIM1#

main63310-1A030-04iEE90..(STD,XL)..(GCC,GEN)198705-199207

LIGHT BLUE,TRIM8#

main63310-1A030-05iEE90..(STD,XL)..(GCC,GEN)198705-198908

LIGHT BEIGE,TRIM4#

main63310-1A030-06iEE90..LHD..XL198908-199207

LIGHT BROWN,TRIM4#

main63310-1A040-03iAE92,EE90..GL,GT,GTI198705-199308

LIGHT GRAY,TRIM1#

main63310-1A040-04iEE90..GL198705-199206

LIGHT BLUE,TRIM8#

main63310-1A040-05iEE90..GL198705-198908

LIGHT BEIGE,TRIM4#

main63310-1A050-03iEE90..RHD..5D..(STD,XL)..GEN198705-199206

W(SUSPENDED HEADLINING),LIGHT GRAY,TRIM1#

main63310-1A050-05iEE90..LHD..5D..(STD,XL)..GEN198705-198908

W(SUSPENDED HEADLINING),LIGHT BEIGE,TRIM4#

main63310-1A050-06iEE90..LHD..XL..GEN198908-199206

W(SUSPENDED HEADLINING),LIGHT BROWN,TRIM4#

main63310-1A060-03iAE92,EE90..(3D,5D)..(GL,GTI,SR5,XL)..(GCC,GEN)198705-199207

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A060-04iEE90..5D..(GCC,GEN)198705-199207

W(SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A060-05iEE90..(GL,XL)..(GCC,GEN)198705-198908

W(SUN ROOF),LIGHT BEIGE,TRIM4#

main63310-1A060-06iEE90..LHD..XL198908-199207

W(SUN ROOF),LIGHT BROWN,TRIM4#

main63310-1A110-03iAE92..XL..GEN198705-199106

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A110-04iAE92..XL..GEN198705-199106

W(SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A110-05iAE92..XL..GEN198705-198908

W(SUN ROOF),LIGHT BEIGE,TRIM4#

main63311-12780-03iAE92..XL..GEN198705-199106

LIGHT GRAY,TRIM1#

main63311-12780-04iAE92..XL..GEN198705-199106

LIGHT BLUE,TRIM8#

main63311-12780-05iAE92..XL..GEN198705-198908

LIGHT BEIGE,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-07034iAE92..XL..GEN198705-199106

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-12030-03iAE92,EE90..(3D,5D)..(GL,GTI,XL)..(GCC,GEN)198705-198908

LIGHT GRAY,TRIM1#

sub63318-12030

main63318-12030-04iEE90..LHD..(GL,XL)198705-198908

LIGHT BLUE,TRIM8#

sub63318-12030

main63318-12030-05iEE90..(GL,XL)..(GCC,GEN)198705-198908

LIGHT BEIGE,TRIM4#

sub63318-12030

main63318-12030-06iEE90..LHD..XL198908-198909

LIGHT BROWN,TRIM4#

sub63318-12030

main63318-12030-B3iAE92,EE90..(3D,5D)..(GL,GTI,SR5,XL)..(GCC,GEN)198908-199207

LIGHT GRAY,TRIM1#

sub63318-12030

main63318-12030-E4iEE90..LHD..XL198909-199207

LIGHT BROWN,TRIM4#

sub63318-12030

main63318-12030-J2iEE90..5D..(GCC,GEN)198908-199207

LIGHT BLUE,TRIM8#

sub63318-12030

main63318-12060-03iAE92..XL..GEN198705-199106

LIGHT GRAY,TRIM1#

main63318-12060-04iAE92..XL..GEN198705-199106

LIGHT BLUE,TRIM8#

main63318-12060-05iAE92..XL..GEN198705-198908

LIGHT BEIGE,TRIM4#

63320FHEADLINING ASSY, SUN ROOF

main63320-12070-03iAE92,EE90..(3D,5D)..(GL,GTI,XL)..(GCC,GEN)198705-198809

LIGHT GRAY,TRIM1#

sub63320-12070

main63320-12070-04iEE90..LHD..(GL,XL)198705-198809

LIGHT BLUE,TRIM8#

sub63320-12070

main63320-12070-05iEE90..(GL,XL)..(GCC,GEN)198705-198809

LIGHT BEIGE,TRIM4#

sub63320-12070

main63320-12070-06iEE90..LHD..XL198908-199207

LIGHT BROWN,TRIM4#

sub63320-12070

main63320-12070-B1iAE92,EE90..(3D,5D)..(GL,GTI,SR5,XL)..(GCC,GEN)198809-199207

LIGHT GRAY,TRIM1#

sub63320-12070

main63320-12070-E1iEE90..(GL,XL)..(GCC,GEN)198809-198908

LIGHT BEIGE,TRIM4#

sub63320-12070

main63320-12070-J1iEE90..5D..(GCC,GEN)198809-199207

LIGHT BLUE,TRIM8#

sub63320-12070

main63320-12080-03iAE92..XL..GEN198705-199106

LIGHT GRAY,TRIM1#

main63320-12080-04iAE92..XL..GEN198705-199106

LIGHT BLUE,TRIM8#

main63320-12080-05iAE92..XL..GEN198705-198908

LIGHT BEIGE,TRIM4#

63341PAD, ROOF SILENCER, NO.1

main63341-12100iEE90..RHD..5D..(STD,XL)..GEN198705-199206

63341DPAD, ROOF SILENCER, FRONT

main63341-12110iEE90..5D..(STD,XL)..GEN198705-198904

W(SUSPENDED ROOF HEADLINING & VINYL TYPE)

main63343-12050iAE92..XL..GEN198705-199106

63343BPAD, ROOF SILENCER, REAR

main63343-12050iAE92..XL..GEN198705-199106

63381RETAINER, HEADLINING, FRONT

main63381-12180iAE92..XL..GEN198705-199106

main63381-12190iAE92,EE90..3D,5D198705-199308

63391TRIM, ROOF HEADLINING, FRONT

main63391-12060-03iAE92,EE90..3D,5D198705-199009

SHADOW GRAY,TRIM1#

sub63391-12060

main63391-12060-04iEE90..LHD..(GL,XL)198705-198809

DARK BLUE,TRIM8#

sub63391-12060

main63391-12060-05iAE92,EE90..(3D,5D)..(GL,STD,XL)198705-198809

DARK BEIGE,TRIM4#

sub63391-12060

main63391-12060-06iEE90..LHD..XL..GEN;AE92,EE90..(3FC,4F)..(GCC,SA)198908-198909

BROWN,TRIM4#

sub63391-12060

main63391-12060-B0iAE92,EE90..(3D,5D)..(GCC,GEN)199009-199207

SHADOW GRAY,TRIM1#

sub63391-12060

main63391-12060-E0iAE92,EE90..(3D,5D)..(GL,STD,XL)198809-198908

DARK BEIGE,TRIM4#

sub63391-12060

main63391-12060-E1iEE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)198909-199308

BROWN,TRIM4#

sub63391-12060

main63391-12060-J0iEE90..LHD..(GL,XL)198809-199207

DARK BLUE,TRIM8#

sub63391-12060

main63391-12100-03iAE92..XL..GEN198705-199106

SHADOW GRAY,TRIM1#

sub63391-12100

main63391-12100-04iAE92..XL..GEN198705-199106

DARK BLUE,TRIM8#

sub63391-12100

main63391-12100-05iAE92..XL..GEN198705-198908

DARK BEIGE,TRIM4#

sub63391-12100

main63391-12110-03iEE90..RHD..5D..(STD,XL)..GEN198905-199206

W(SUSPENDED ROOF HEADLINING),SHADOW GRAY,TRIM1#

sub63391-12110

main63391-12110-03iEE90..5D..(STD,XL)..GEN198904-199206

CKD COUNTRIES,SHADOW GRAY,TRIM1#

sub63391-12110

main63391-12110-06iEE90..LHD..XL..GEN198908-199206

CKD COUNTRIES,BROWN,TRIM4#

sub63391-12110

main63391-12110-E0iEE90..RHD..GL198904-198908

CKD COUNTRIES,DARK BEIGE,TRIM4#

sub63391-12110

main63391-12110-E0iEE90..RHD..5D..(STD,XL)..GEN198905-198908

W(SUSPENDED ROOF HEADLINING),DARK BEIGE,TRIM4#

sub63391-12110

main63391-12110-J0iEE90..LHD..5D..XL..GEN198904-198908

CKD COUNTRIES,DARK BLUE,TRIM8#

sub63391-12110

9354014510

main93540-14510

11 parts on this diagram · 3 diagrams in section
