MAT & CARPET

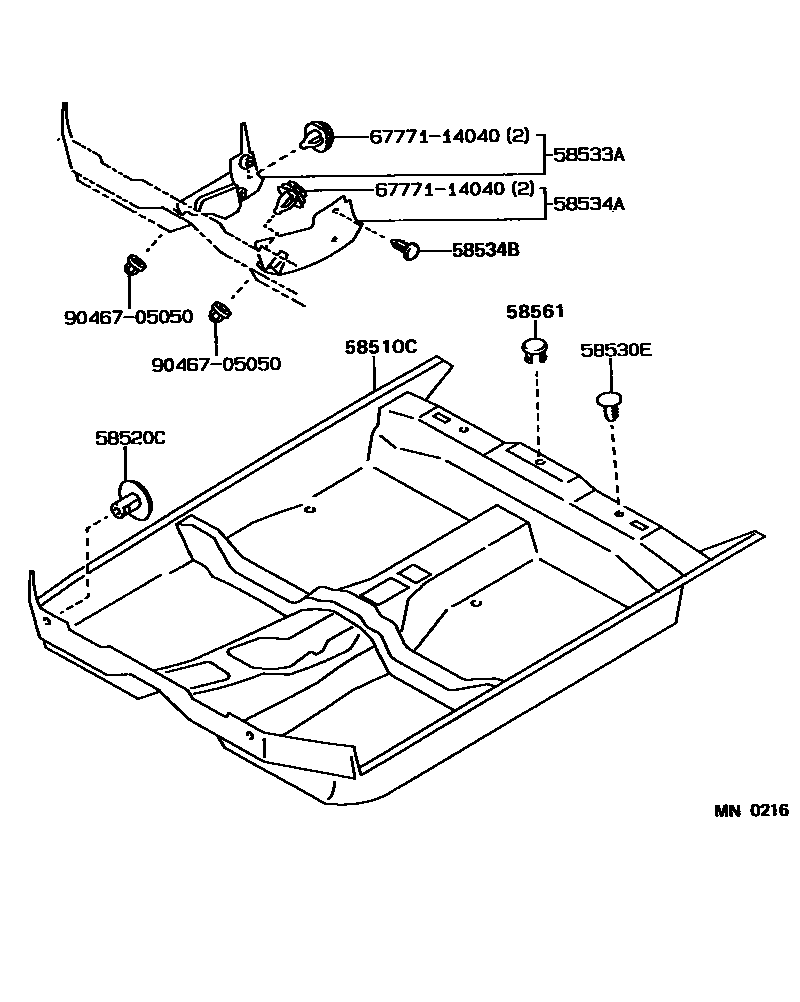

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-1A010-03i198705-199206
SHADOW GRAY,TRIM1#
main58510-1A010-03i198705-199206
W(FOOTREST),SHADOW GRAY,TRIM1#
main58510-1A010-04i198908-199206
W(FOOTREST),DARK BLUE,TRIM8#
main58510-1A010-04i198908-199206
DARK BLUE,TRIM8#
main58510-1A010-05i198705-198908
W(FOOTREST),DARK BEIGE,TRIM4#
main58510-1A010-05i198705-198908
DARK BEIGE,TRIM4#
main58510-1A030-03i198705-198908
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A030-03i198705-199206
W(FOOTREST & FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A030-04i198708-199206
W(FOOTREST & FRONT SEAT BELT),DARK BLUE,TRIM8#
main58510-1A030-04i198705-198908
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
main58510-1A030-05i198705-198908
W(FRONT SEAT BELT),DARK BEIGE,TRIM4#
main58510-1A030-05i198705-198908
W(FOOTREST & FRONT SEAT BELT),DARK BEIGE,TRIM4#
main58510-1A030-06i198908-199206
W(FOOTREST & FRONT SEAT BELT),BROWN,TRIM4#
main58510-1A150-03i198705-199206
SHADOW GRAY,TRIM1#
main58510-1A150-04i198705-199206
DARK BLUE,TRIM8#
main58510-1A150-05i198705-198908
DARK BEIGE,TRIM4#
main58510-1A150-06i198908-199206
BROWN,TRIM4#
main58510-1A160-03i198705-199206
W(FOOTREST),SHADOW GRAY,TRIM1#
main58510-1A160-03i198705-198908
SHADOW GRAY,TRIM1#
main58510-1A160-04i198705-199206
W(FOOTREST),DARK BLUE,TRIM8#
main58510-1A160-04i198705-198908
DARK BLUE,TRIM8#
main58510-1A160-05i198705-198908
DARK BEIGE,TRIM4#
main58510-1A160-05i198705-198908
W(FOOTREST),DARK BEIGE,TRIM4#
main58510-1A160-06i198908-199206
W(FOOTREST),BROWN,TRIM4#
main58510-1A180-03i198705-199206
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A180-03i198708-199207
SHADOW GRAY,TRIM1#
main58510-1A180-04i198708-199206
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
main58510-1A180-04i198708-199207
DARK BLUE,TRIM8#
main58510-1A180-05i198708-198908
DARK BEIGE,TRIM4#
main58510-1A180-05i198705-198908
W(FRONT SEAT BELT),DARK BEIGE,TRIM4#
main58510-1A180-06i198908-199207
BROWN,TRIM4#
main58510-1A180-06i198908-199206
W(FRONT SEAT BELT),BROWN,TRIM4#
main58510-1A250-03i198705-199206
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A250-04i198908-199206
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
main58510-1A250-05i198705-198908
W(FRONT SEAT BELT),DARK BEIGE,TRIM4#
main58510-1A260-03i198705-199206
W(FOOTREST & FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A260-03i198705-199206
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A260-03i198808-199308
SHADOW GRAY,TRIM1#
main58510-1A260-04i198908-199206
W(FOOTREST & FRONT SEAT BELT),DARK BLUE,TRIM8#
main58510-1A260-04i198908-199206
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
main58510-1A260-05i198705-198908
W(FOOTREST & FRONT SEAT BELT),DARK BEIGE,TRIM4#
main58510-1A260-05i198705-198908
W(FRONT SEAT BELT),DARK BEIGE,TRIM4#
main58510-1A290-03i198705-199106
SHADOW GRAY,TRIM1#
main58510-1A290-04i198705-199106
DARK BLUE,TRIM8#
main58510-1A290-05i198705-198908
DARK BEIGE,TRIM4#
main58510-1A350-03i198705-198908
MAROON,TRIM1#
main58510-1A350-05i198705-198908
DARK BEIGE,TRIM4#
main58510-1A351-03i198908-199205
SHADOW GRAY,TRIM1#
main58510-1A351-04i198908-199205
DARK BLUE,TRIM8#
main58510-1A360-03i198705-198908
SHADOW GRAY,TRIM1#
main58510-1A360-04i198705-198908
DARK BLUE,TRIM8#
main58510-1A360-05i198705-198908
DARK BEIGE,TRIM4#
main58510-1A361-03i198908-199205
SHADOW GRAY,TRIM1#
main58510-1A361-04i198908-199205
DARK BLUE,TRIM8#
main58510-1A370-03i198705-198908
W(FOOTREST),SHADOW GRAY,TRIM1#
main58510-1A370-03i198705-198908
SHADOW GRAY,TRIM1#
main58510-1A370-05i198705-198908
W(FOOTREST),DARK BEIGE,TRIM4#
main58510-1A371-03i198908-199205
W(FOOTREST),SHADOW GRAY,TRIM1#
main58510-1A371-03i198908-199205
SHADOW GRAY,TRIM1#
main58510-1A371-04i198908-199205
W(FOOTREST),DARK BLUE,TRIM8#
main58510-1A380-03i198705-198908
SHADOW GRAY,TRIM1#
main58510-1A380-03i198705-198908
W(FOOTREST),SHADOW GRAY,TRIM1#
main58510-1A380-04i198705-198908
W(FOOTREST),DARK BLUE,TRIM8#
main58510-1A380-05i198705-198908
W(FOOTREST),DARK BEIGE,TRIM4#
main58510-1A381-03i198908-199205
W(FOOTREST),SHADOW GRAY,TRIM1#
main58510-1A381-04i198908-199205
W(FOOTREST),DARK BLUE,TRIM8#
main58510-1A390-03i198705-199106
SHADOW GRAY,TRIM1#
main58510-1A390-04i198705-199106
DARK BLUE,TRIM8#
main58510-1A390-05i198705-198908
DARK BEIGE,TRIM4#
main58510-1A450-03i198705-198908
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A450-05i198705-198908
W(FRONT SEAT BELT),DARK BEIGE,TRIM4#
main58510-1A451-03i198908-199205
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A451-04i198908-199205
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
main58510-1A460-03i198705-198908
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A460-04i198705-198908
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
main58510-1A460-05i198705-198908
W(FRONT SEAT BELT),DARK BEIGE,TRIM4#
main58510-1A461-03i198908-199205
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A461-04i198908-199205
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
main58510-1A470-03i198705-198908
W(FOOTREST & FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A470-03i198705-198908
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A470-05i198705-198908
W(FOOTREST & FRONT SEAT BELT),DARK BEIGE,TRIM4#
main58510-1A471-03i198908-199205
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A471-03i198908-199205
W(FOOTREST & FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A471-04i198908-199205
W(FOOTREST & FRONT SEAT BELT),DARK BLUE,TRIM8#
main58510-1A480-03i198705-198908
W(FOOTREST & FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A480-03i198705-198908
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A480-04i198705-198908
W(FOOTREST & FRONT SEAT BELT),DARK BLUE,TRIM8#
main58510-1A480-05i198705-198908
W(FOOTREST & FRONT SEAT BELT),DARK BEIGE,TRIM4#
main58510-1A481-03i198908-199205
W(FOOTREST & FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main58510-1A481-04i198908-199205
W(FOOTREST & FRONT SEAT BELT),DARK BLUE,TRIM8#
main58510-1A510-03i198705-199206
SHADOW GRAY,TRIM1#
main58510-1A510-04i198908-199206
BROWN,TRIM8#
main58510-1A510-05i198705-198908
DARK BEIGE,TRIM4#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-09068-01i198705-199308
BLACK,TRIM1#
main90467-09068-01i198705-198708
BLACK,TRIM1#,8#
main90467-09068-01i198705-199308
BLACK,TRIM1#,4#
main90467-09068-01i198705-198908
BLACK,TRIM1#,4#,8#
main90467-09068-11i198908-199207
BLACK,TRIM1#,8#
main90467-09068-11i198908-199207
BLACK,TRIM1#,4#,8#
main90467-09068-11i198908-199207
BLACK,TRIM1#
58530ECLIP(FOR FRONT FLOOR REAR CARPET)
main90467-06049-01i198705-199308
BLACK,TRIM1#,4#
main90467-06049-01i198705-199308
BLACK,TRIM1#
main90467-06049-01i198705-199308
BLACK,TRIM1#,4#,8#
main90467-06049-01i198908-199308
BLACK,TRIM1#,8#
main90467-06049-03i198705-198912
GRAY,TRIM1#
main90467-06049-15i198705-198809
DARK BEIGE,TRIM4#
main90467-06049-16i198908-198909
BROWN,TRIM4#
main90467-06049-24i198705-198809
DARK BLUE,TRIM8#
main90467-06049-B0i198908-199207
SHADOW GRAY,TRIM1#
main90467-06049-E0i198809-198908
DARK BEIGE,TRIM4#
main90467-06049-E4i198909-199308
BROWN,TRIM4#
main90467-06049-J1i198809-199207
DARK BLUE,TRIM8#
58533ACOVER, FLOOR CARPET, CENTER RH
main58533-12010i198705-199207
main58533-12020i198705-199308
58534AMAT, TRANSMISSION COVER
main58534-12010i198705-199308
main58534-12020i198705-199207
58534BCLIP(FOR FLOOR CARPET CENTER COVER)
main90467-10034-01i198705-198908
BLACK,TRIM1#,4#
main90467-10034-01i198705-199207
BLACK,TRIM1#
main90467-10034-01i198705-199207
BLACK,TRIM1#,4#,8#
main90467-10034-01i199008-199207
BLACK,TRIM1#,8#
58561RETAINER, FLOOR MAT, NO.1
main58561-12010i198712-199106
6777114040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-14040
9046705050
main90467-05050

9 parts on this diagram · 2 diagrams in section
