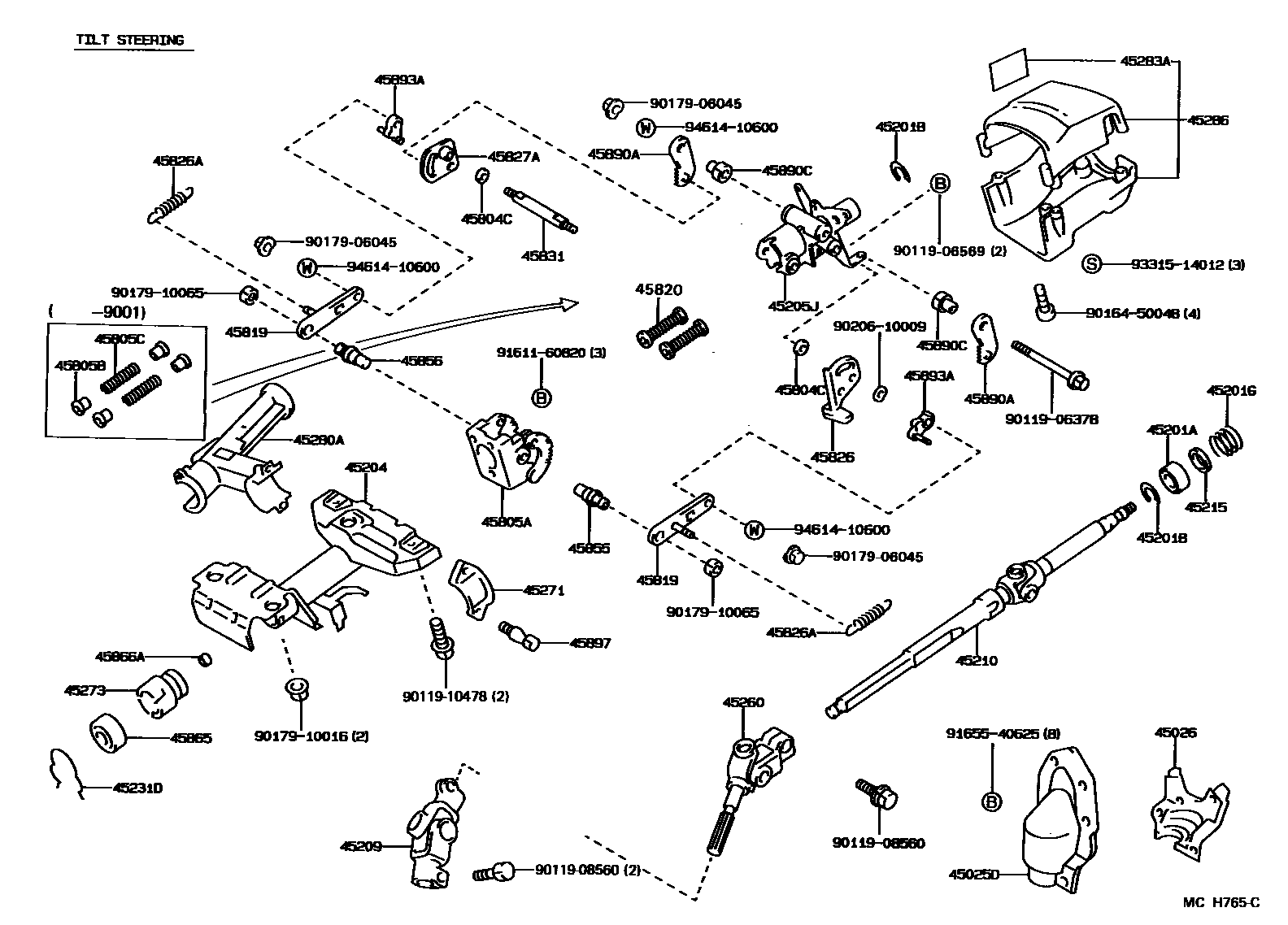

STEERING COLUMN & SHAFT

0001 1 0003 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12170iAE92,EE90..RHD198705-199308

main45025-12180iAE92..RHD;EE90..RHD..GEN198705-199308

W(POWER STEERING)

main45025-12190iAE92,EE90..LHD198705-199207

main45025-12200iAE92,EE90..LHD198705-199009

W(POWER STEERING)

sub45025-12201

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-12010iAE92,EE90..RHD198705-199308

main45026-12020iAE92..RHD;EE90..RHD..GEN198705-199308

W(POWER STEERING)

main45026-12030iAE92,EE90..LHD198705-199207

main45026-12040iAE92,EE90..LHD199106-199207

W(POWER STEERING)

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18004iEE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN)198705-198809

main90363-18005iAE92,EE90198809-199009

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iAE92,EE90198705-198808

T=1.20

main90520-17196×2iAE92,EE90..RHD..(GL,GT,STD,XL)199009-199106

T=1.35-1.45

main90520-17269iAE92,EE90199304-199308

T=1.20,T=1.20,UPR

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)198705-199009

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-12090iEE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN)198705-198905

main45204-12091iAE92,EE90..RHD..(3FC,5F)..GEN198905-198908

main45204-12092iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)199006-199009

sub45204-12093

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-12250iAE92,EE90..RHD..(3FC,5F)..GEN198705-198809

main45205-12251iAE92,EE90..RHD..(GL,GTI,XL)..GEN198809-199101

main45205-12260iAE92,EE90..LHD198705-198809

main45205-12261iAE92,EE90..LHD198809-199009

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12050iAE92..RHD;EE90..RHD..GEN198908-199009

W(POWER STEERING)

main45209-32010iAE92,EE90..RHD..(GL,GT,STD,XL)199009-199106

sub45209-10020

45210SHAFT ASSY, STEERING MAIN

main45210-12300iAE92,EE90..RHD..(GL,GT,STD,XL)198705-199308

sub45210-12420

main45210-12320iEE90..RHD..GEN;AE92..RHD..(2D,5D)198705-199308

W(POWER STEERING)

main45210-12340iAE92,EE90..LHD..(GL,SR5,STD,XL)198705-199009

sub45210-12490

main45210-12400iEE90..LHD..STD198705-199009

W(TILT STEERING)

sub45210-12560

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iAE92,EE90..RHD..(GL,GTI,XL)..GEN199009-199101

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-01005iEE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN)198808-198908

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12150iAE92..GEN199106-199205

sub45260-12250

main45260-12170iAE92,EE90..RHD..(GL,XL)..GEN198705-199009

W(TILT STEERING & POWER STEERING)

main45260-12190iAE92,EE90..LHD..5D199106-199207

W(TILT STEERING)

sub45260-12360

main45260-12210iEE90..LHD..STD198908-199009

W(TILT STEERING & POWER STEERING)

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iAE92,EE90..GL,GT,SR5,STD,XL198705-199009

main45271-12060iEE90..LHD..STD198705-199009

W(TILT STEERING)

main45271-12070iAE92..SA199108-199308

W(TILT STEERING)

main45271-12080iEE90..RHD..5D..GEN199106-199206

W(TILT STEERING & POWER STEERING)

45273BUSH, STEERING MAIN SHAFT

main45273-16010iAE92,EE90198908-199006

main45273-22020iEE90..LHD..STD199006-199009

W(TILT STEERING)

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12100iAE92,EE90..SA199104-199106

main45280-12110iAE92,EE90..RHD..(GL,STD,XL)..GEN199104-199108

main45280-12120iEE90..LHD..STD198705-199009

W(TILT STEERING)

main45280-12130iAE92..GEN199106-199205

W(TILT STEERING)

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iAE92,EE90..RHD198705-199101

45286COVER, STEERING COLUMN

main45286-12940-01iAE92..GT198808-199308

BLACK,TRIM1#

main45286-12940-03iAE92,EE90..RHD..(GL,STD,XL)198705-198908

SHADOW GRAY,TRIM1#

main45286-12940-04iAE92,EE90..RHD..(GL,STD,XL)..GEN198908-199206

DARK BLUE,TRIM8#

main45286-12940-05iAE92,EE90..RHD..(GL,STD,XL)198705-198908

BEIGE,TRIM4#

main45286-12940-06iAE92,EE90..(STD,XL)..SA198908-199308

BROWN,TRIM4#

main45286-12941-03iAE92,EE90..LHD..(GL,SR5,STD,XL)198705-199207

SHADOW GRAY,TRIM1#

main45286-12941-04iAE92,EE90..LHD..(GL,XL)198705-198908

DARK BLUE,TRIM8#

main45286-12941-05iAE92,EE90..LHD..(GL,STD,XL)198705-198908

BEIGE,TRIM4#

main45286-12941-06iEE90..LHD..XL198908-199207

BROWN,TRIM4#

main45286-12942-01iAE92..RHD..GTI198705-199205

BLACK,TRIM1#

main45286-12942-03iAE92,EE90..RHD..(GL,XL)..GEN198705-199206

W(TILT STEERING),SHADOW GRAY,TRIM1#

main45286-12942-04iAE92,EE90..RHD..(GL,XL)..GEN198908-199206

W(TILT STEERING),DARK BLUE,TRIM8#

main45286-12942-05iAE92,EE90..RHD..(GL,XL)..GEN198705-198908

W(TILT STEERING),BEIGE,TRIM4#

main45286-12943iAE92..LHD..GTI198705-198710

main45286-12943-01iAE92..LHD..GTI198710-198908

BLACK,TRIM1#

main45286-12943-03iAE92,EE90..LHD..(GL,XL)198705-198809

W(TILT STEERING),SHADOW GRAY,TRIM1#

main45286-12943-04iAE92,EE90..LHD..(GL,XL)198705-198908

W(TILT STEERING),DARK BLUE,TRIM8#

main45286-12943-05iAE92,EE90..LHD..(GL,STD,XL)198705-198908

W(TILT STEERING),BEIGE,TRIM4#

main45286-12943-06iEE90..LHD..XL198908-199207

W(TILT STEERING),BROWN,TRIM4#

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-10283×2iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)198705-199009

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-12010iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)198705-199009

45805BBUSH(FOR TILT STEERING SUPPORT)

main90386-06031×4iEE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN)198705-198908

45805CSPRING, COMPRESSION(FOR TILT STEERING SUPPORT)

main90501-20072×2iEE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN)198705-198908

45819RETAINER, TILT LEVER

main45819-12010×2iEE90..LHD..STD;AE92,EE90..GL,GTI,XL198705-198802

main45819-12020×2iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12010×2iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)199001-199009

45826LEVER, STEERING TILT

main45826-12020iEE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN)198705-198905

main45826-12021iAE92,EE90..RHD..(GL,GTI,XL)..GEN199009-199101

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-12029×2iAE92,EE90..RHD..(GL,GTI,XL)..GEN199009-199101

45827ALEVER, STEERING TILT SUB

main45827-12010iEE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN)198705-198905

main45827-12011iEE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN)198905-198908

main45827-12020iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12010iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)198705-199009

45855BOLT, TILT STEERING, NO.1

main45855-12010iEE90..LHD..STD;AE92,EE90..GL,GTI,XL198705-198802

OD=9.989-9.998

main45855-12020iEE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN)198808-198908

OD=9.998-10.007

main45855-12030iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

OD=9.989-9.998

main45855-12040iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

OD=9.998-10.007

45856BOLT, TILT STEERING, NO.2

main45856-12010iAE92,EE90..LHD;AE92..RHD..GTI198802-198808

OD=9.989-9.998

main45856-12020iEE90..LHD..STD;AE92,EE90..GL,GTI,XL198705-198802

OD=9.998-10.007

main45856-12030iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

OD=9.989-9.998

main45856-12040iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

OD=9.998-10.007

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iEE90..LHD..STD;AE92,EE90..GL,GTI,XL198705-198802

main45865-12060iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-12010iEE90..LHD..STD;AE92,EE90..GL,GTI,XL198705-198802

45890APAWL ASSY, TILT STEERING

main45890-12020iEE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN)198705-198905

LH

sub45890-12H00

main45890-12021iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)198905-199009

LH

main45890-12030iEE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN)198705-198905

RH

sub45890-12H00

main45890-12031iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

RH

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-07004iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)198705-199009

MARK 0

main90389-07005iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)198705-199009

MARK 2

main90389-07006iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

MARK 3

main90389-07007iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)198705-199009

MARK 4

main90389-07008iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)198705-199009

MARK A

main90389-07009iAE92,EE90..RHD..(GL,GTI,XL)..GEN199009-199101

MARK 6

main90389-07010iAE92,EE90..RHD..(GL,GTI,XL)..GEN199009-199101

MARK 7

main90389-07011iAE92,EE90..RHD..(GL,GTI,XL)..GEN199009-199101

MARK 8

45893ASTOPPER, TILT STEERING PAWL

main45893-12020iEE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN)198705-198905

LH

main45893-12021iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

MARK A,LH

main45893-12070iEE90..LHD..STD;AE92,EE90..(GL,GTI,XL)..(GCC,GEN)198705-198905

RH

main45893-12071iAE92,EE90..RHD..(GL,GTI,XL)..GEN199009-199101

MARK F OR 11,RH

main45893-12120iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

MARK B,LH

main45893-12130iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

MARK C,LH

main45893-12140iAE92,EE90..RHD..(GL,GTI,XL)..GEN199009-199101

MARK D,LH

main45893-12150iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

MARK E,LH

main45893-12160iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)198905-199009

MARK G OR 12,RH

main45893-12170iEE90..LHD..STD;AE92,EE90..(3FC,5F)..(GCC,GEN)199106-199207

MARK H OR 13,RH

main45893-12180iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)198905-199009

MARK I OR 14,RH

main45893-12190iEE90..LHD..STD;AE92,EE90..(GL,GTI,SR5,XL)..(GCC,GEN)198905-199009

MARK J OR 15,RH

45897BOLT, STEERING LOCK SET

main45897-12020iEE90..LHD..STD198705-198707

W(TILT STEERING)

9011906378

main90119-06378

9011906569

main90119-06569

9011908560

main90119-08560

9011910478

main90119-10478

9016450048

main90164-50048

9017906045

main90179-06045

9017910016

main90179-10016

9017910065

main90179-10065

9020610009

main90206-10009

9161160820

main91611-60820

9165540625

main91655-40625

9331514012

main93315-14012

9461410600

main94614-10600

48 parts on this diagram · 2 diagrams in section
