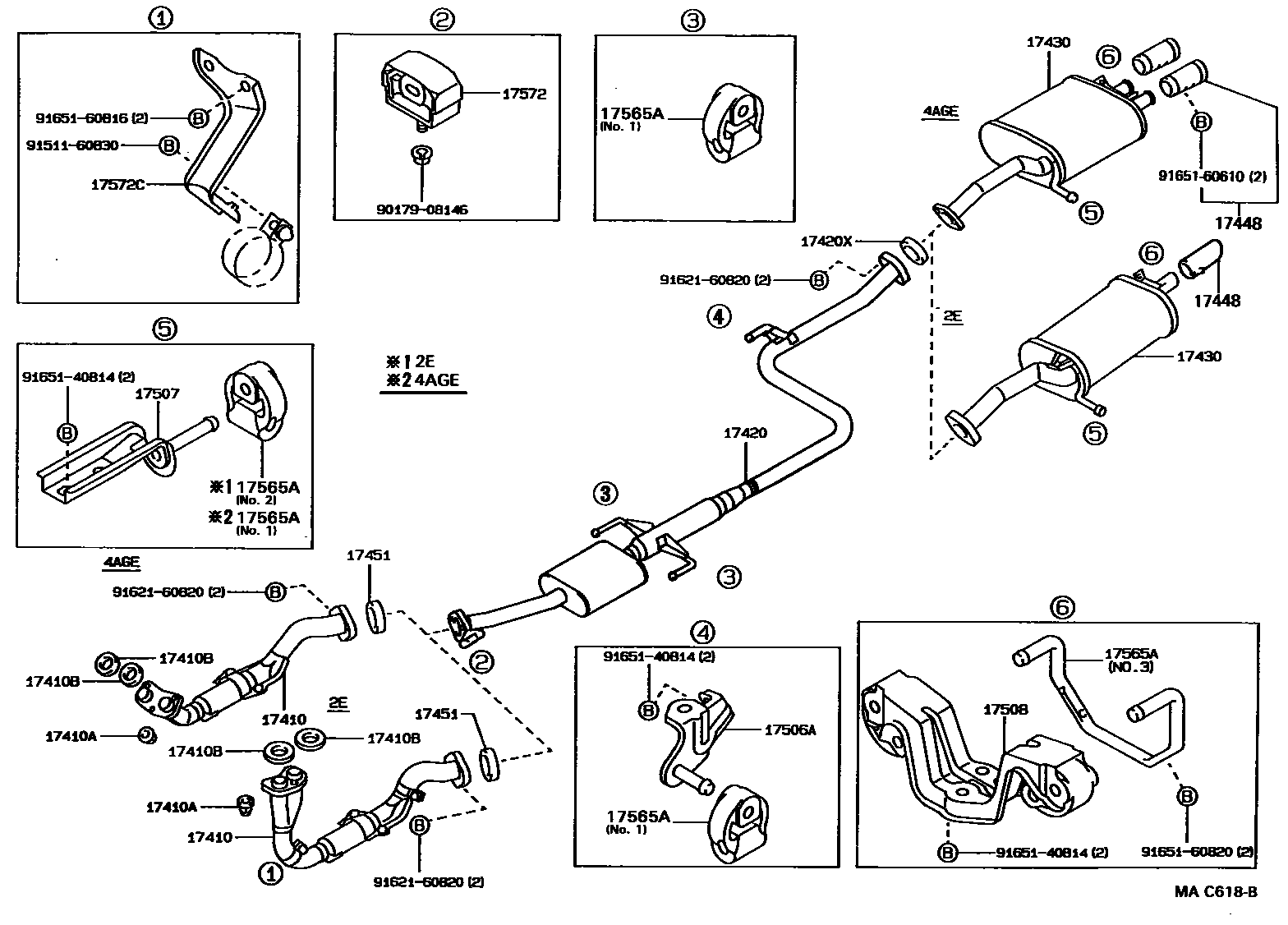

EXHAUST PIPE
17410ANUT, EXHAUST PIPE SET STUD BOLT
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.3
NO.2
NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
9017908146
main90179-08146
9151160830
main91511-60830
9162160820
main91621-60820
9165140814
main91651-40814
9165160610
main91651-60610
9165160816
main91651-60816
9165160820
main91651-60820
21 parts on this diagram · 2 diagrams in section
