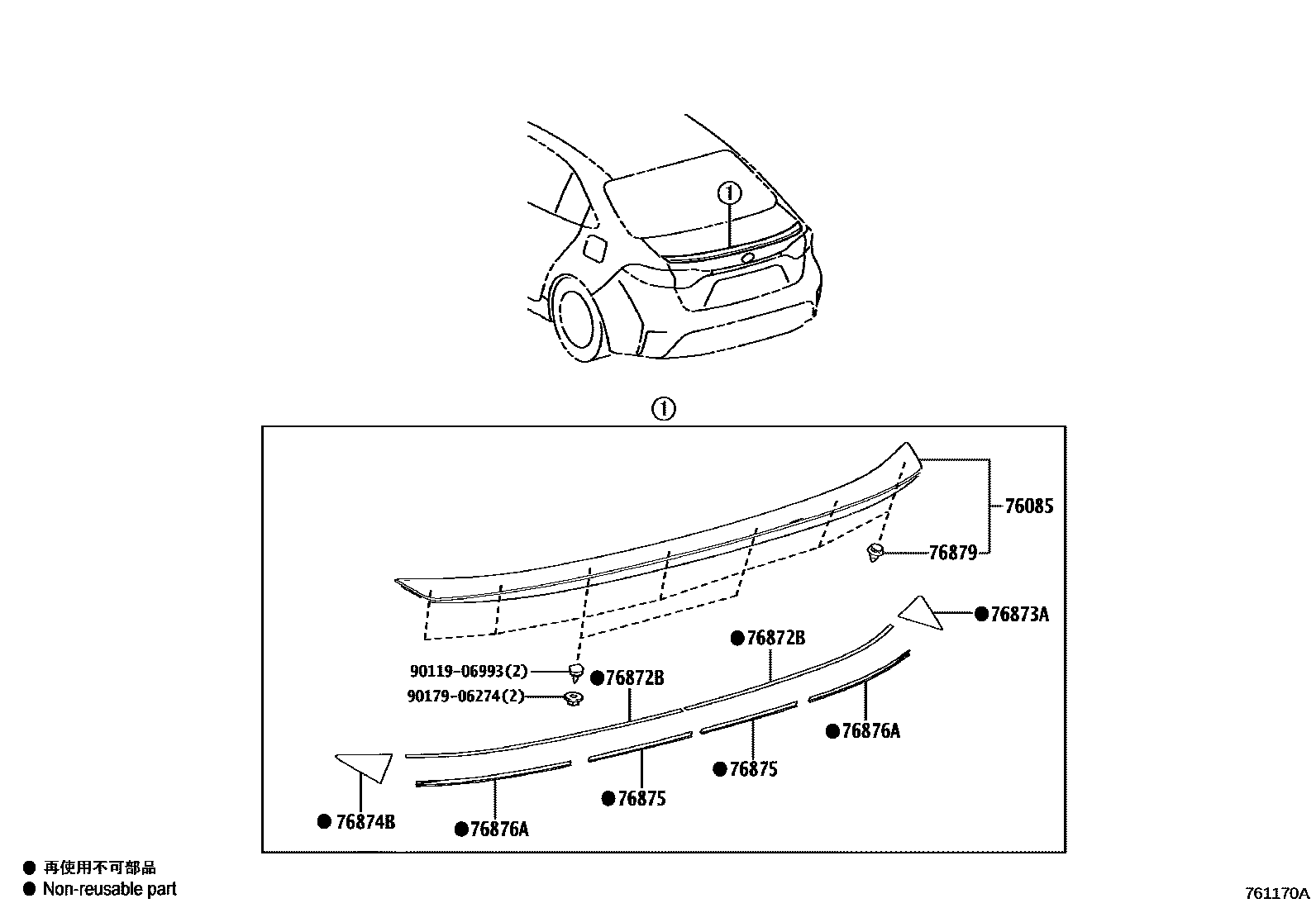

MUDGUARD & SPOILER

0001 1 0002 1 0003 1

76085SPOILER SUB-ASSY, REAR

main76085-12926iZRE212..RHD..L201909-202307

PAINT REQ.

main76085-12926iZRE212..RHD..L201909-202004

SOUTH AFRICA SPEC

main76085-12926iZRE212..RHD..L201909-202004

FIJI SPEC

main76085-12926iZRE212..RHD..L202004-202208

PAINT REQ.,SOUTH AFRICA SPEC

main76085-12926iZRE212..RHD..L202004-202208

PAINT REQ.,FIJI SPEC

76872BPROTECTOR, REAR SPOILER, CENTER

main76872-12250iZRE212..RHD..L201909-202208

SOUTH AFRICA SPEC

main76872-12250iZRE212..RHD..L201909-202208

FIJI SPEC

main76872-12250iZRE212..RHD..L201912-202307

76873APROTECTOR, REAR SPOILER, RH

main76873-12250iZRE212..RHD..L201909-202208

SOUTH AFRICA SPEC

main76873-12250iZRE212..RHD..L201909-202208

FIJI SPEC

main76873-12250iMZEA18..RHD..L202209-202307

76874BPROTECTOR, REAR SPOILER, LH

main76874-12250iZRE212..RHD..L201909-202208

SOUTH AFRICA SPEC

main76874-12250iZRE212..RHD..L201909-202208

FIJI SPEC

main76874-12250iMZEA18..RHD..L202209-202307

76875PROTECTOR, REAR SPOILER, NO.4

main76875-12160iZRE212..RHD..L201909-202208

SOUTH AFRICA SPEC

main76875-12160iZRE212..RHD..L201909-202208

FIJI SPEC

main76875-12160iZRE212..RHD..L202001-202307

76876APROTECTOR, REAR SPOILER, NO.10

main76876-12080iZRE212..RHD..L201909-202001

SOUTH AFRICA SPEC

main76876-12080iZRE212..RHD..L201909-202001

FIJI SPEC

76879CLIP, REAR SPOILER, NO.1

main90467-09206iZRE212..RHD..L201909-202208

SOUTH AFRICA SPEC

main90467-09206iZRE212..RHD..L201909-202208

FIJI SPEC

main90467-09206iMZEA18..RHD..L202209-202307

9011906993

main90119-06993

9017906274

main90179-06274

9 parts on this diagram · 3 diagrams in section
