EPC Data

FRONT SEAT & SEAT TRACK

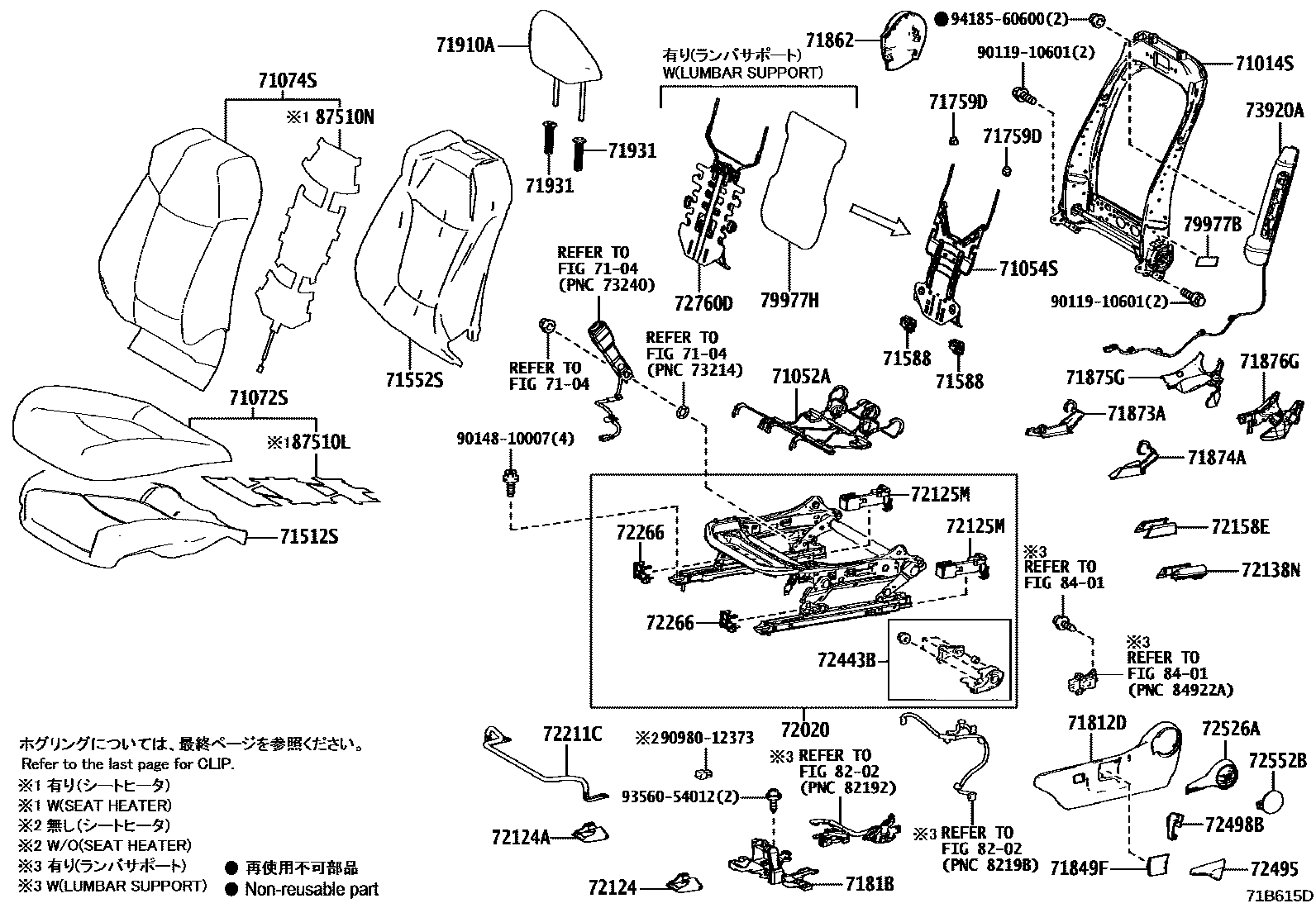

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-42190supersedes 71014-42211i201901-202004
main71014-42210i201901-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-47090i201901-202004
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-47050i202409-202507
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-12Y90-B1i202003-202004
LT.GRAY/BLACK,TRIM1#
main71072-12Y90-B3i202003-202004
DK.GRAY/BLACK,TRIM2#
main71072-12Y90-C0i201901-202003
DK. GRAY,TRIM2#
main71072-12Y90-C1i201901-202003
LT. GRAY,TRIM1#
main71072-12Z10-A1i202004-202107
FROMAGE/BLACK,TRIM0#
main71072-12Z10-B2i202004-202107
LT.GRAY/BLACK,TRIM1#
main71072-12Z10-C1i202004-202208
BLACK/GRAY DOT/BLACK,TRIM2#
main71072-12Z10-C3i201901-202003
FROMAGE,TRIM0#
main71072-12Z10-C4i201901-202003
BALCK,TRIM2#
main71072-12Z10-C5i201901-202003
LT. GRAY,TRIM1#
main71072-1AB90-A4i202004-202107
FROMAGE/BLACK/SHELL,TRIM0#
main71072-1AB90-C4i202004-202208
BLACK/BLACK/SHELL,TRIM2#
main71072-1AD90-B1i202004-202107
LT.GRAY/BLACK,TRIM1#
main71072-1AD90-B3i202004-202208
DK.GRAY/BLACK,TRIM2#
main71072-1AD90-C2i201909-202003
DK. GRAY,TRIM2#
main71072-1AD90-C3i201909-202003
LT. GRAY,TRIM1#
main71072-1AE00-A1i202004-202107
FROMAGE/BLACK,TRIM0#
main71072-1AE00-B2i202004-202107
LT.GRAY/BLACK,TRIM1#
main71072-1AE00-C1i202003-202004
BLACK/GRAY DOT/BLACK,TRIM2#
main71072-1AE00-C3i201909-202003
FROMAGE,TRIM0#
main71072-1AE00-C4i201909-202003
BALCK,TRIM2#
main71072-1AE00-C5i201909-202003
LT. GRAY,TRIM1#
main71072-1AL90-C1i202409-202507
BLACK,TRIM2#
main71072-1AQ30-C2supersedes 71072-1AM20-C1i202209-202409
BLACK/BLACK,TRIM2#
main71072-12Z00-A1i202003-202004
SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE/BLACK,TRIM0#
main71072-12Z00-B2i202003-202004
SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM1#
main71072-12Z00-C0i202003-202004
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY DOT/BLACK,TRIM2#
main71072-12Z00-C2i201901-202003
SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE,TRIM0#
main71072-12Z00-C3i201901-202003
SEAT HEATER-WITH(DRIVER & PASSENGER),BALCK,TRIM2#
main71072-12Z00-C4i201901-202003
SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#
main71072-1AB80-A4supersedes 71072-1AB90-C5i202003-202004
SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE/BLACK/SHELL,TRIM0#
main71072-1AB80-C4supersedes 71072-1AB90-C6i202003-202004
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK/SHELL,TRIM2#
main71072-1AB80-C5supersedes 71072-1AB90-C5i201901-202003
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE,TRIM0#
main71072-1AB80-C6supersedes 71072-1AB90-C6i201901-202003
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-1AC20-C2i201901-202003
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20
main71072-1AC20-C3i202003-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20
main71072-1AC20-J2i201901-202003
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21
main71072-1AC20-J3i202003-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE/BLACK,TRIM21
main71072-1AC30-C2i201901-202003
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71072-1AC30-C3i202003-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71072-1AC30-J2i201901-202003
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLUE,TRIM21
main71072-1AC30-J3i202003-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLUE/BLACK,TRIM21
main71072-1AG60-C3i201909-202003
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71072-1AG60-C6i202003-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71072-1AG60-J2i201909-202003
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLUE,TRIM21
main71072-1AG60-J3i202003-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLUE/BLACK,TRIM21
main71072-1AJ40-A1i202003-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE/BLACK,TRIM0#
main71072-1AJ40-B0i202003-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM1#
main71072-1AJ40-C1i202003-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY DOT/BLACK,TRIM2#
main71072-1AJ40-C2i201901-202003
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/FROMAGE,TRIM0#
main71072-1AJ40-C3i201901-202003
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM2#
main71072-1AJ40-C4i201901-202003
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT. GRAY,TRIM1#
main71072-1AJ60-C0i202001-202003
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71072-1AJ60-C3i202003-202004
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71072-1AJ60-J0i202001-202003
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK/BLUE,TRIM21
main71072-1AJ60-J1i202003-202004
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK/BLUE/BLACK,TRIM21
main71072-1AM60-C1i202209-202409
MAURITIUS SPEC&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71072-1AM60-C2i202409
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM26
main71072-1AM70-C1i202209-202409
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71072-1AM70-C2i202409
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM26
main71072-1AQ30-C1supersedes 71072-1AM20-A1i202209-202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK/ORCHID BROWN,TRIM0#
main71072-1AQ30-C3i202209-202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK/LT.GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-1AA60-B3i201901-202004
LT. GRAY,TRIM1#
main71074-1AA60-C2i201901-202004
DK. GRAY,TRIM2#
main71074-1AC10-B4i201901-202004
LT. GRAY,TRIM1#
main71074-1AC10-C5i201901-202004
BLACK,TRIM2#
main71074-1AC10-E5i201901-202004
FROMAGE,TRIM0#
main71074-1AC11-B4i202004-202107
GRAY,TRIM1#
main71074-1AC11-C5i202004-202208
BLACK,TRIM2#
main71074-1AC11-E5i202004-202107
ORCHID BROWN,TRIM0#
main71074-1AC30-C5i202004-202208
BLACK,TRIM2#
main71074-1AC30-E5i202004-202107
FROMAGE,TRIM0#
main71074-1AE50-B0i202004-202107
GRAY,TRIM1#
main71074-1AE50-C0i202004-202208
BLACK,TRIM2#
main71074-1AJ40-B1i202004-202106
LT. GRAY,TRIM1#
main71074-1AJ40-C1i202004-202208
BLACK,TRIM2#
main71074-1AJ40-E1i201909-202004
FROMAGE,TRIM0#
main71074-1AL80-C2i202409
BLACK/BLACK,TRIM2#
main71074-1AM10-C1i202409
BLACK,TRIM2#
main71074-1AP50-C1supersedes 71074-1AM21-C1i202409
BLACK/BLACK,TRIM2#
main71074-1AC00-B4i201901-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#
main71074-1AC00-C5i201901-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-1AC00-E5i201901-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE,TRIM0#
main71074-1AC20-C5supersedes 71074-1AC30-C5i201901-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-1AC20-E5supersedes 71074-1AC30-E5i201901-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE,TRIM0#
main71074-1AC60-C4i201901-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20
main71074-1AC60-J4i201901-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21
main71074-1AC70-C4i201901-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71074-1AC70-J4i202004-202107
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLUE,TRIM21
main71074-1AG90-C3i201909-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71074-1AG90-J3i202004-202208
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLUE,TRIM21
main71074-1AJ50-C0i202001-202004
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71074-1AJ50-J0i202001-202004
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK/BLUE,TRIM21
main71074-1AM50-C1i202209-202408
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71074-1AM50-C2i202209-202408
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM26
main71074-1AM51-C3i202409
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM26
main71074-1AM51-C4i202409
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71074-1AM80-C1i202209-202408
MAURITIUS SPEC&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71074-1AM80-C2i202209-202408
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM26
main71074-1AM81-C3i202409
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM26
main71074-1AM81-C4i202409
MAURITIUS SPEC&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71074-1AP50-C0supersedes 71074-1AM20-E0i202209-202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK/ORCHID BROWN,TRIM0#
main71074-1AP50-C2i202209-202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK/LT.GRAY,TRIM1#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-12180i202004-202208
main71502-12200i202409-202507
main71512-12450i202004-202208
main71512-12460i201901-202004
main71512-12600supersedes 71512-12460i202209-202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE)
main71502-12190supersedes 71502-12200i202409-202508
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
main71512-12530i202004-202208
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-12700i201901-202004
main71552-12760supersedes 71552-12700i202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE)
main71552-12710supersedes 71552-12760i202409
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
main71587-47010×2i202209-202409
71759DHOOK, FRONT SEATBACK, NO.2
main71759-50040×2i202004-202208
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-12490-C0i202409
BLACK,TRIM0#,2#
main71812-33430-C0i201909-202004
BLACK,TRIM1#,2#
main71812-47130-C1i202409
BLACK,TRIM2#
main71812-33400-C0supersedes 71812-12490-C0i201901-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71812-47160-C1i201901-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,1#,2#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
main7181B-33010i201901-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
main7181B-47010supersedes 7181B-33010i201901-202004
71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)
main71849-12020-C0i202304-202409
BLACK,TRIM2#
main71849-47010-C1i201901-202004
BLACK,TRIM1#,2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-47090-C1i202409
BLACK,TRIM2#
main71862-47100-C1i202004-202208
BLACK,TRIM1#,2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-47070i202409-202507
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71874-47080i202409
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-47080i202409-202507
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-47070i202409
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71876-47080-C1i201901-202004
BLACK,TRIM1#,2#
main71876-47090-C1i202409
BLACK,TRIM2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-47040-C1i201901-202004
BLACK,TRIM1#,2#
main71876-47070-C1i202004-202208
BLACK,TRIM1#,2#
71910AHEADREST ASSY, FRONT SEAT
main71910-12J90-B1×2i202003-202004
GRAY,TRIM10
main71910-12J90-B3×2i202003-202004
GRAY,TRIM1#
main71910-12J90-C0×2i201901-202003
BLACK,TRIM2#
main71910-12J90-C2×2i202003-202004
BLACK,TRIM2#
main71910-12K00-B2×2i201901-202003
GRAY,TRIM1#
main71910-12K00-B3×2i202003-202004
GRAY,TRIM1#
main71910-12K00-C2×2i201901-202003
BLACK,TRIM2#
main71910-12K00-C4×2i202003-202004
BALCK,TRIM2#
main71910-12K00-E2×2i202003-202004
ORCHID BROWN,TRIM00
main71910-12K00-E4×2i202004-202107
ORCHID BROWN,TRIM0#
main71910-12K10-C2×2i201901-202001
BLACK,TRIM2#
main71910-12K10-E2×2i201901-202001
ORCHID BROWN,TRIM0#
main71910-12K11-C2×2i202001-202003
BLACK,TRIM2#
main71910-12K11-C3×2i202003-202004
BLACK,TRIM2#
main71910-12K11-E2×2i202001-202003
ORCHID BROWN,TRIM0#
main71910-12K11-E3×2i202003-202004
ORCHID BROWN,TRIM0#
main71910-12R30-C0×2i202209-202409
BLACK,TRIM2#
main71910-12R31-C3×2i202409-202508
BLACK / GRAY DOT,TRIM2#
main71910-12R60-C0×2i202209-202409
BLACK,TRIM2#
main71910-12R61-C1×2i202409
BLACK / GRAY DOT,TRIM2#
main71910-12K70-C2×2i201901-202001
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20
main71910-12K70-C3×2i201901-202001
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21
main71910-12K71-C2×2i202001-202003
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20
main71910-12K71-C3×2i202001-202003
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK/BLUE,TRIM21
main71910-12K71-C4×2i202003-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20
main71910-12K71-C5×2i202003-202004
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK/BLUE,TRIM21
main71910-12K71-C7×2i202209-202409
MAURITIUS SPEC&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71910-12K71-C9×2i202209-202409
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM26
main71910-12K72-20×2i202409
MAURITIUS SPEC&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71910-12K72-21×2i202409-202508
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BALCK/RED,TRIM26
main71910-12R40-B0×2i202209-202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),GRAY,TRIM1#
main71910-12R40-C0×2supersedes 71910-12K11-C4i202209-202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK,TRIM2#
main71910-12R40-E0×2supersedes 71910-12K11-E4i202209-202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),ORCHID BROWN,TRIM0#
main71910-12R41-C1×2supersedes 71910-12K11-C4i202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK / GRAY DOT,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-C5×2i201901-202004
W(LOCK),BLACK,TRIM1#,2#
main71930-47050-E8×2i202004-202107
W(LOCK),ORCHID BROWN,TRIM0#
main71931-47030-C4×2i201901-202004
W/O(LOCK),BLACK,TRIM2#
main71931-47030-E8×2i202004-202107
W/O(LOCK),ORCHID BROWN,TRIM0#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-33450i201901-202004
main72020-47360i201901-201905
sub72020-12850
main72020-47361i201906-202004
main72020-47380i201909-202004
main72020-47381i202209-202409
main72020-33570i201901-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
main72020-47371supersedes 72020-33450i202209-202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE)
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72123-10100i202409-202507
TYPE B
main72123-47060i202209-202307
TYPE A
72124ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72123-10100i201901-202004
main72123-47060i202409-202507
TYPE A
72125MCOVER, SEAT TRACK, UPPER NO.3
main72125-47010×2supersedes 72125-47020i202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE)
main72125-47020×2i202004-202208
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
main72137-47060i202409
72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH
main72158-47080i202409
72211HANDLE, SEAT TRACK ADJUSTING
main72211-12290i202004-202208
main72211-47050i202209-202409
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-47050i202004-202208
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-47010×2supersedes 72265-47020i202209-202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE)
main72265-47020×2i201901-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
72443BGEAR, VERTICAL ADJUSTER, LH
main72443-47020i201901-201903
main72443-47021i201904-202004
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-12020-C0i202409
BLACK,TRIM2#
main72495-47020-C1i201901-202004
BLACK,TRIM1#,2#
72498BCOVER, VERTICAL ADJUSTER BRACKET, OUTER
main72498-47020i202209-202409
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE)
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-33050-C0i202209-202409
BLACK,TRIM2#
72552BCOVER, RECLINING HINGE, LH
main72551-33010-C0i201901-202004
BLACK,TRIM1#,2#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-33140i201901-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEATHEATER-WITH(DRIVER & PASSENGER)
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-12090i202409-202507
79977BFELT, SEATBACK FRAME
main79977-12090×2supersedes 79977-12090i201904-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
79977HFELT, FRONT SEATBACK, LH
main79977-33030i201901-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEATHEATER-WITH(DRIVER & PASSENGER)
8202
8401
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-12390i201901-202004
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEATHEATER-WITH(DRIVER & PASSENGER)
main87510-12400i201901-202004
SEAT HEATER-WITH(DRIVER & PASSENGER)
main87510-12410i201901-202004
SEAT HEATER-WITH(DRIVER & PASSENGER)
main87510-12420i202409
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-12080i201901-202004
SEAT HEATER-WITH(DRIVER & PASSENGER)
main87530-12090i202409
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
9011910601
main90119-10601
9014810007
main90148-10007
9098012373
main90980-12373
9356054012
main93560-54012
9418560600
main94185-60600

49 parts on this diagram · 20 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
