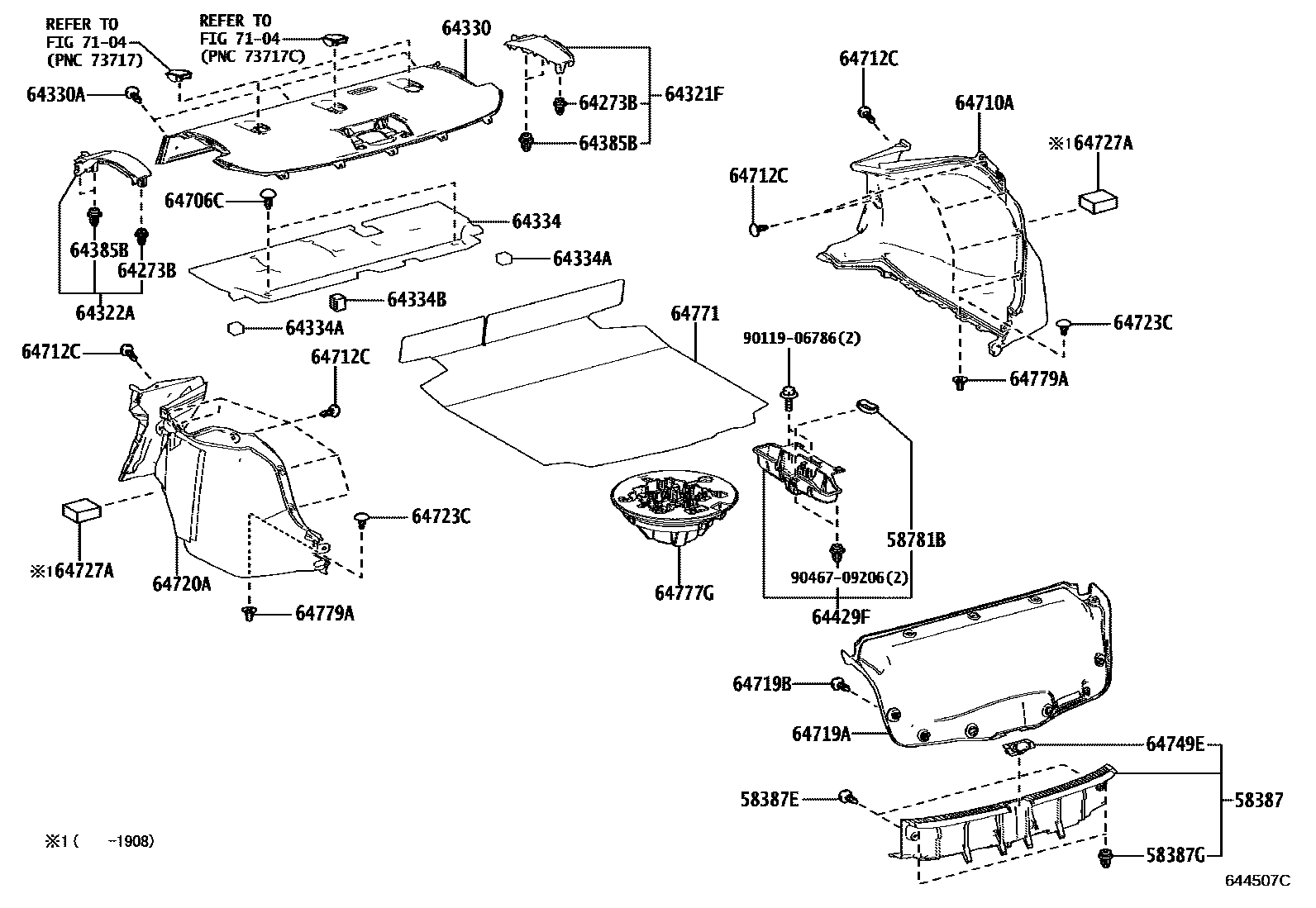

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1W(SPARE TIRE - GROUND TIRE) 0002 1W(SPARE TIRE - TEMPORARY TIRE0003 1 0004 1W(8-INCH AUDIO & JBL 9-SPEAKE

58387PLATE, REAR FLOOR FINISH

main58387-12110-C0iMZEA18;MZEA12,ZWE219..L..ARL202409

BLACK,TRIM2#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C3×2iMZEA12..D202409-202507

BLACK,TRIM2#

58387GCLIP(FOR REAR FLOOR FINISH PLATE)

main90467-10161×2iMZEA12..D202409-202507

58781BBAND, LUGGAGE COMPARTMENT TRIM BOX

main58781-52010iMZEA12..D202409-202507

64273BCLIP

main90467-09240×2iMZEA12..D202409-202507

64321FBRACKET, PACKAGE TRAY TRIM, RH

main64301-12280-C0iMZEA12..D202409-202507

BLACK,TRIM2#

64322ABRACKET, PACKAGE TRAY TRIM, LH

main64302-12280-C0iZRE212..L202004-202208

BLACK,TRIM1#,2#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-12C70-C0iZRE212..L202004-202208

BLACK,TRIM1#,2#

main64330-12C80-C0iZWE219..ARL202409

AUDIO-8INCH JBL,BLACK,TRIM2#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08186-C3×3iZRE212..L202004-202208

BLACK,TRIM1#,2#

64334PAD, PACKAGE TRAY TRIM SILENCER

main64334-12420iMZEA18;MZEA12,ZWE219..L202409

64334APAD, PACKAGE TRAY TRIM

main64334-12450×2iMZEA12..D202409-202507

64334BPAD, PACKAGE TRAY TRIM, NO.2

main64334-12460iMZEA12..D202409-202507

64385BCLIP

main90467-10161×4iMZEA12..D202409-202507

64429FBOX, LUGGAGE COMPARTMENT TRIM

main64429-12020iMZEA12..D202409-202507

64706CCLIP

main90467-06020-C0×2iMZEA18..LHD;MZEA12,ZWE219202209-202409

BLACK

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-12080-C0iZRE212..L202004-202208

BLACK,TRIM1#,2#

main64710-12150-C0iMZEA12,ZWE219..ARL202209-202409

BLACK,TRIM2#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-08186-C3×12iZRE212..L202004-202208

BLACK,TRIM1#,2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12190-C0iMZEA18;MZEA12,ZWE219..L..ARL202409

BLACK,TRIM2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C3×11iZWE219..MXC202209-202409

BLACK,TRIM2#

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-12070-C0supersedes 64720-12090-C0iZWE219..MXC202209-202409

BLACK,TRIM2#

main64720-12090-C0iZWE213202004-202208

BLACK,TRIM0#,2#

64723CCLIP, LUGGAGE COMPARTMENT TRIM COVER

main64726-26010-C2×2iZWE211..MXC201901-202004

BLACK,TRIM1#,2#

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-12080×2iZRE212,ZWE211201901-201908

64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-12050-C0iMZEA18;MZEA12,ZWE219..L..ARL202409

BLACK,TRIM2#

64771COVER, SPARE WHEEL

main64771-12370-C0iZRE212..L202004-202208

BLACK,TRIM1#,2#

64777GCUSHION, SPARE WHEEL

main64777-12180supersedes 64777-12270iZWE21#..MXC202004-202111

SPARE TIRE-T125/70D17

main64777-12190iMZEA12,ZRE212201901-202004

main64777-12550supersedes 64777-12271iZWE219..ARL202409

SPARE TIRE-T125/70D17

64779ASTOPPER, SPARE WHEEL COVER

main64779-26010×2iMZEA18..RHD202209-202307

7104

9011906786

main90119-06786

9046709206

main90467-09206

29 parts on this diagram · 4 diagrams in section
