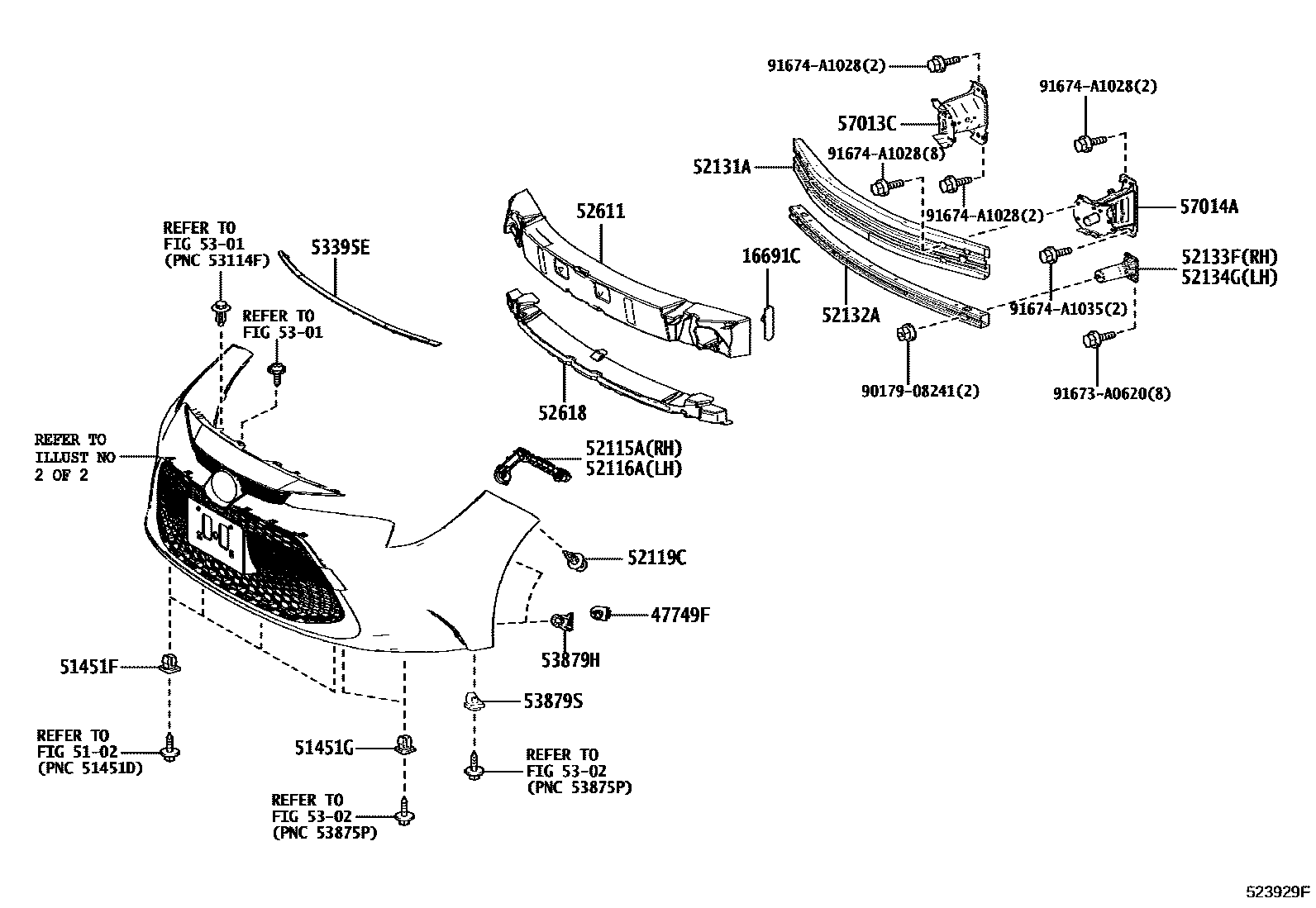

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

16691CPLATE, RADIATOR SIDE AIR GUIDE, FRONT

main16691-37020×2iM20AFKS..MZEA12..D202409-202507

47749FCLIP, PIN HOLD

main47749-33030×4iMZEA12..D202409-202507

5102

51451FGROMMET, NO.1

main90189-06237×4iMZEA12..D202409-202507

51451GGROMMET, NO.2

main90189-06237×4iMZEA12..D202409-202507

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12520iMZEA18..RHD202209-202307

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12470iMZEA18;MZEA12,ZWE219..L202409

52119CCLIP, FRONT BUMPER COVER

main90467-05170×2iMZEA12..D202409-202507

52131AREINFORCEMENT, FRONT BUMPER

main52131-12310iZWE211..MXC201901-202004

main52131-12320iMZEA18..RHD202209-202307

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-12150iMZEA12,ZRE212,ZWE211201901-202004

main52132-12151iMZEA12..D202409-202507

52133FBRACKET, FRONT BUMPER, RH

main52133-12190iMZEA18..RHD202209-202307

52134GBRACKET, FRONT BUMPER, LH

main52133-12190iMZEA18;MZEA12,ZWE219..L202409

52611ABSORBER, FRONT BUMPER ENERGY

main52611-12380iZWE219..MXC202209-202409

main52611-12440iMZEA12,ZRE212,ZWE211..ARL,GEN201901-202004

52618ABSORBER, FRONT BUMPER, LOWER

main52618-12110iMZEA12..D202409-202507

5301

5302

53395ESEAL, HOOD TO FRONT END PANEL

main53395-12140iMZEA12..D202409-202507

53879HRETAINER, FRONT FENDER LINER

main53879-33030×4iMZEA12..D202409-202507

53879SRETAINER, FRONT FENDER LINER

main53879-17020×2iMZEA12,ZRE212,ZWE211201901-202004

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-12070iZWE219..MXC202209-202409

main57013-12080iMZEA18..RHD202209-202307

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-12070iZWE21#..MXC202004-202208

main57014-12080iMZEA18..LHD;MZEA12,ZWE219..ARL202209-202409

9017908241

main90179-08241

91673A0620

main91673-A0620

91674A1028

main91674-A1028

91674A1035

main91674-A1035

25 parts on this diagram · 3 diagrams in section
