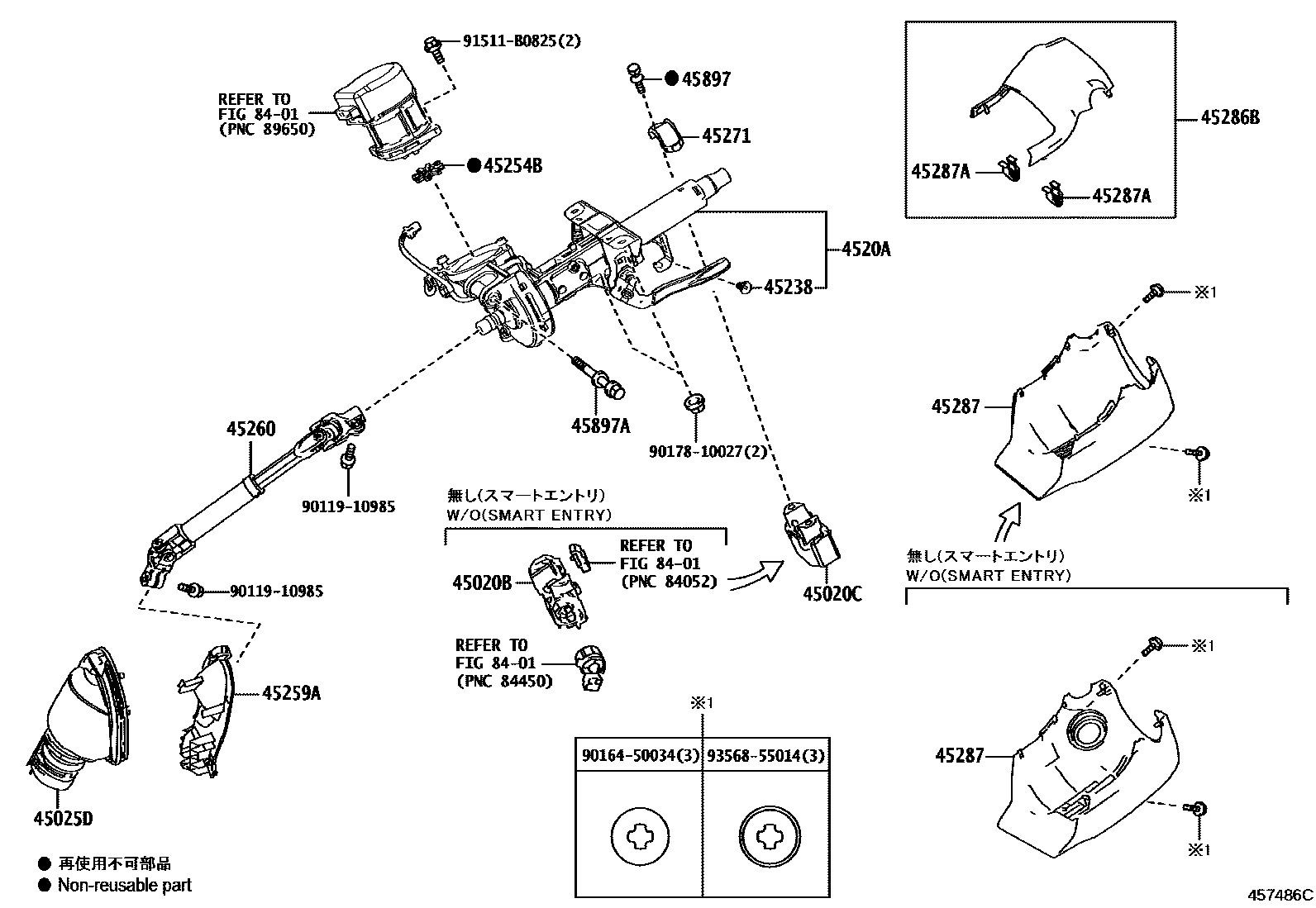

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0006 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-26270iMZEA12,ZRE212..6F..D202004-202208

main45280-33180iMZEA18..D202409

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-12550iMZEA12..6F202004-202208

WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-47050iMZEA12,ZRE212,ZWE211..RHD202004-202208

main45025-47060iMZEA18,ZWE219..LHD202409

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-12130iMZEA12,ZWE219..ARL202209-202409

main4520A-12131iMZEA12..D202409-202507

main4520A-12180iZRE212..LHD..D202004-202208

main4520A-12190iZRE212,ZWE211..LHD..L201901-202004

main4520A-12200iMZEA12,ZRE212..RHD..D201909-202004

main4520A-12210iMZEA12,ZRE212,ZWE211..RHD..L202004-202208

WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

main4520A-12220iMZEA18,ZWE219..LHD..L202209-202409

main4520A-12221iMZEA18,ZWE219..LHD..L202409

main4520A-12230iMZEA18..LHD..D202209-202409

main4520A-12231iMZEA18..D202409

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iMZEA12,ZRE212,ZWE211201901-202004

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMZEA18;MZEA12,ZWE219..L202409

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-47040iMZEA12,ZRE212,ZWE211..RHD201909-202004

main45259-47041iMZEA12..D202409-202507

main45259-47050iZRE212,ZWE211..LHD201901-202004

main45259-47051iZRE212,ZWE21#..LHD202110-202208

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12800supersedes 45260-12820iMZEA12202209-202409

TIRE&DISK WHEEL-225/40R18 SUMMER TIRE ALMINUM WHEEL

main45260-12810iZRE212,ZWE21#..LHD202004-202208

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iMZEA18..LHD..D202209-202409

45286BCOVER, STEERING COLUMN, UPR

main45286-12660-C0iMZEA12,ZRE212..D202004-202208

BLACK,TRIM1#,2#

main45286-12670-C0iMZEA12..6F202004-202208

WITH(SMART ENTRY) & WITHOUT(PANIC ALARM),BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45024-12100-C0iMZEA12,ZRE212..D202004-202208

BLACK,TRIM1#,2#

main45024-12110-C0iMZEA1#,ZWE219..L..(ARL,GEN)202409

BLACK,TRIM0#,1#,2#

45287ACLIP(FOR STEERING COLUMN COVER)

main90467-05171×2iMZEA12..D202409-202507

45897BOLT, STEERING LOCK SET

main45897-12020×2iMZEA18..D202409

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iMZEA12..D202409-202507

8401

9011910985

main90119-10985

9016450034

main90164-50034

9017810027

main90178-10027

91511B0825

main91511-B0825

9356855014

main93568-55014

20 parts on this diagram · 5 diagrams in section
