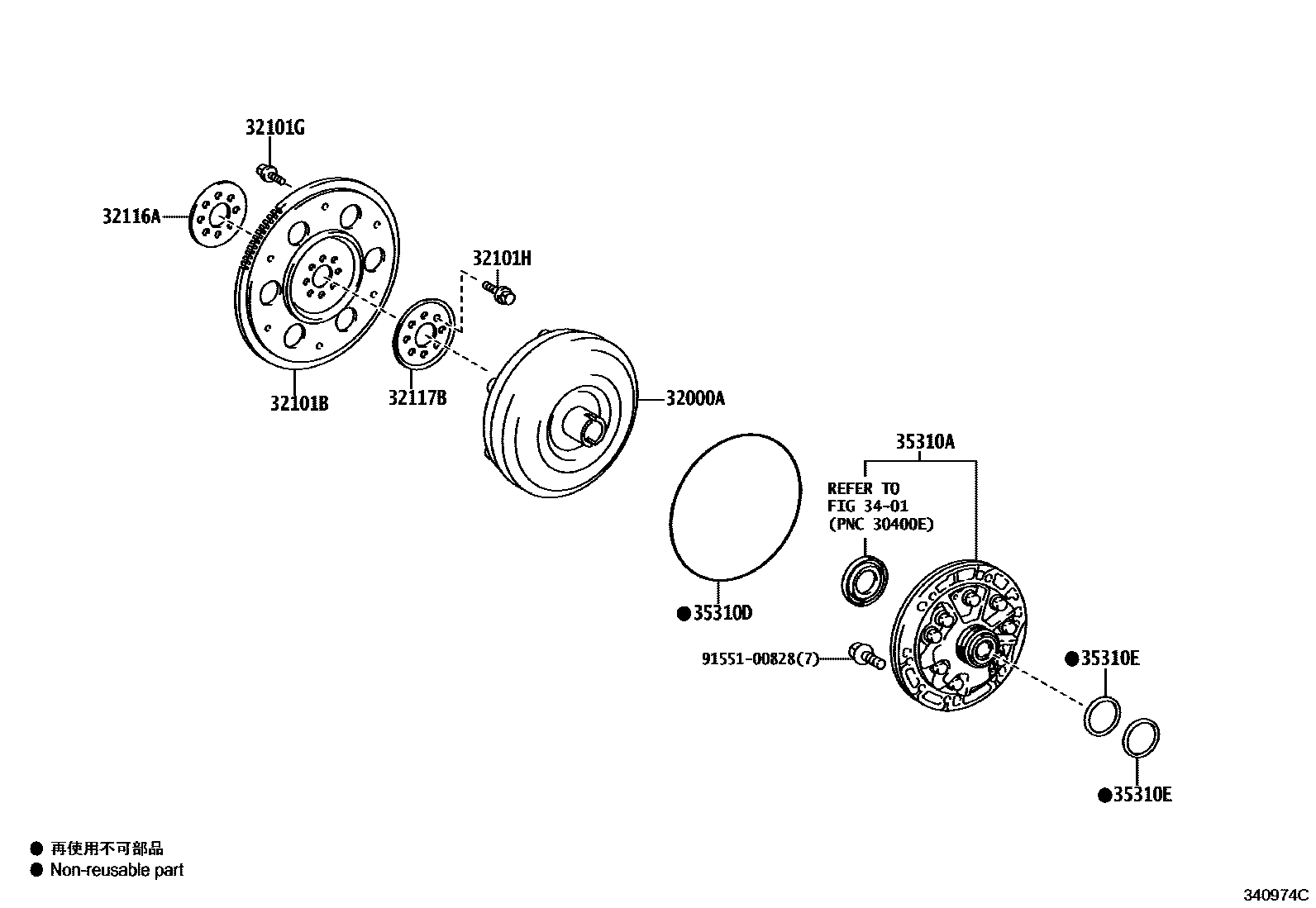

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K313 0002 1K120

32000ACONVERTER ASSY, TORQUE

main32000-12460iMZEA1#201909-202507

AISIN:REFER 34-01

main32000-12490iZRE212..CVT201901-202208

AISIN AW:REFER 34-01

main32000-12520iMZEA1#201909-202507

TMH:REFER 34-01

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZRE212..CVT201901-202208

main32101-12120iMZEA12..CVT201909-202507

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZRE212..CVT201901-202208

*8-1.25PX12-8.4,BLACK

main90109-09001iMZEA12..CVT201909-202507

*9-1.25PX12.4-7.3,BLACK

main90119-08498iZRE212..CVT201901-202208

*8-1.25PX12-8,SILVER WHITE

main90119-09025iMZEA18;MZEA12..L201909-202507

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZRE212..CVT201901-202208

main90105-12404iMZEA18;MZEA12..L201909-202507

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZRE212..CVT201901-202208

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZRE212..CVT201901-202208

main32117-33010iMZEA12..D201909-202507

3401

35310APUMP ASSY, FRONT OIL

main35310-12160iZRE212..CVT201901-202208

main35310-12200iMZEA12..D202004-202507

TYPE A:REFER ILLUST.

main35310-12200iMZEA12..CVT201909-202004

main35310-28050iMZEA18;MZEA12..L202106-202507

TYPE B:REFER ILLUST.

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99202iZRE212..CVT201901-202208

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12060iMZEA12..CVT201909-202507

TMH:REFER 34-01

main35617-12070iMZEA12..D201909-202507

AISIN:REFER 34-01

main35617-52060iZRE212..CVT201901-202208

9155100828

main91551-00828
