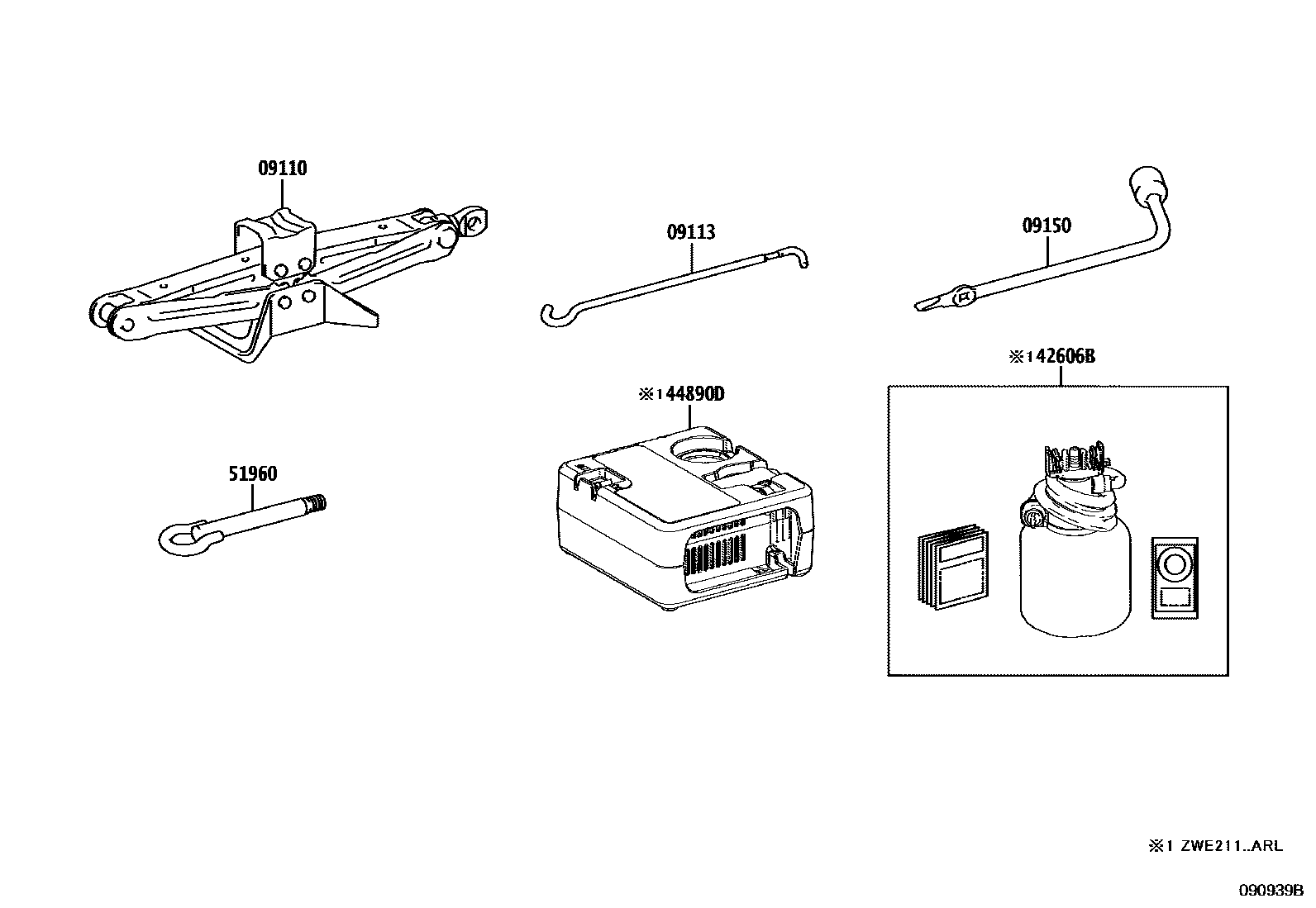

STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09110-12120iMZEA12..L;MZEA12..6F202004-202208

SOUTH AFRICA SPEC

main09111-47050iZRE212,ZWE21#..GEN,MXC202004-202109

SOUTH AFRICA SPEC

main09111-47051supersedes 09110-12120iZWE219..ARL202209-202409

SOUTH AFRICA SPEC&SPARE TIRE-T125/70D17

09113HANDLE, JACK

main09113-42030iMZEA12..D202409-202507

09150WRENCH, HUB NUT BOX

main09150-42010iZWE219..ARL202409

SPARE TIRE-T125/70D17

42606BREPAIR KIT, TUBELESS TIRE

main42606-47130supersedes 42606-47130iZWE211..ARL202004-202106

44890DCOMPRESSOR ASSY, AIR

main44890-47070iZWE211..ARL201909-202004

51960HOOK ASSY, FRONT

main51960-12110iMZEA12..D202409-202507

6 parts on this diagram · 2 diagrams in section
