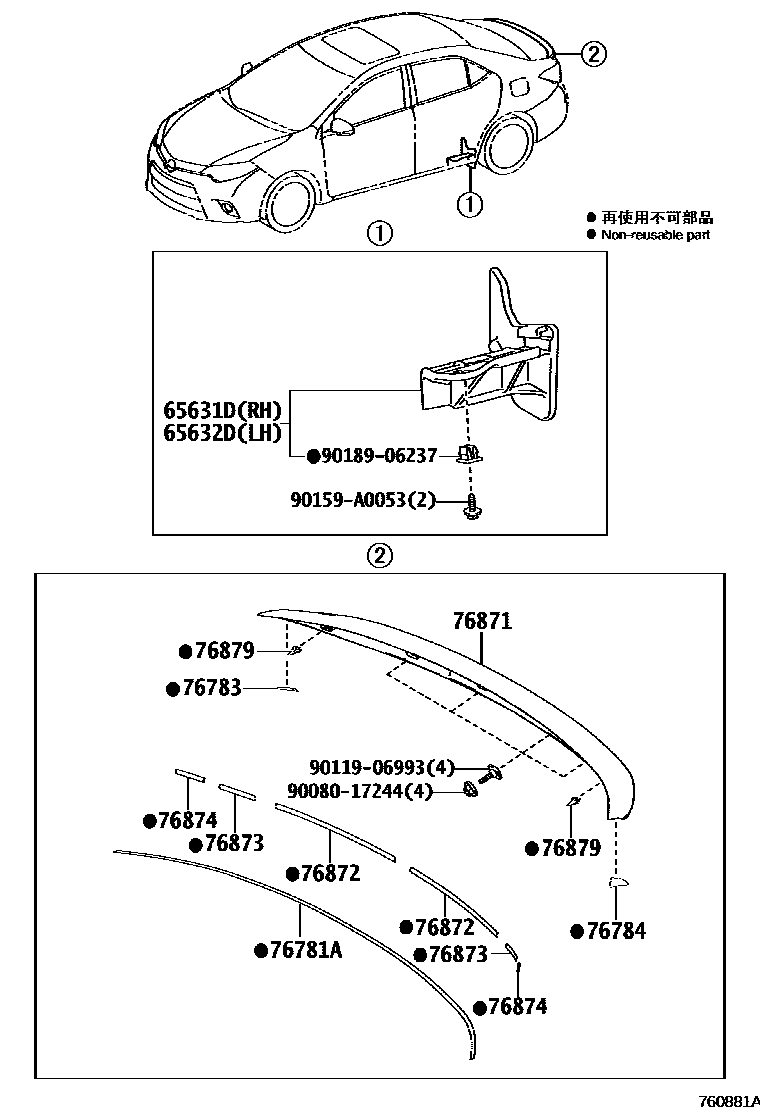

MUDGUARD & SPOILER

0001 1 0002 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-02230iZRE172..4FC201308-201508

sub65631-02231

main65631-02231iZRE172201509-201608

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-02230iZRE172..4FC201308-201508

sub65632-02231

main65632-02231iZRE172201509-201608

76781ATAPE, REAR SPOILER, UPPER NO.1

main76781-02010iZRE172..4FC..S201308-201608

76783TAPE, REAR SPOILER, LOWER RH

main76783-02090iZRE172..4FC..S201308-201608

76784TAPE, REAR SPOILER, LOWER LH

main76784-02090iZRE172..4FC..S201308-201608

76871SPOILER, REAR

main76871-02924iZRE172..4FC..S201308-201903

PAINT REQ.

76872PROTECTOR, REAR SPOILER, NO.1

main76872-02040iZRE172..4FC..S201308-201608

76873PROTECTOR, REAR SPOILER, NO.2

main76873-02020iZRE172..4FC..S201308-201608

76874PROTECTOR, REAR SPOILER, NO.3

main76874-02030iZRE172..4FC..S201308-201608

76879CLIP, REAR SPOILER, NO.1

main76817-12070iZRE172..4FC..S201308-201608

9008017244

main90080-17244

9011906993

main90119-06993

90159A0053

main90159-A0053

9018906237

main90189-06237

14 parts on this diagram · 2 diagrams in section
