FRONT SEAT & SEAT TRACK

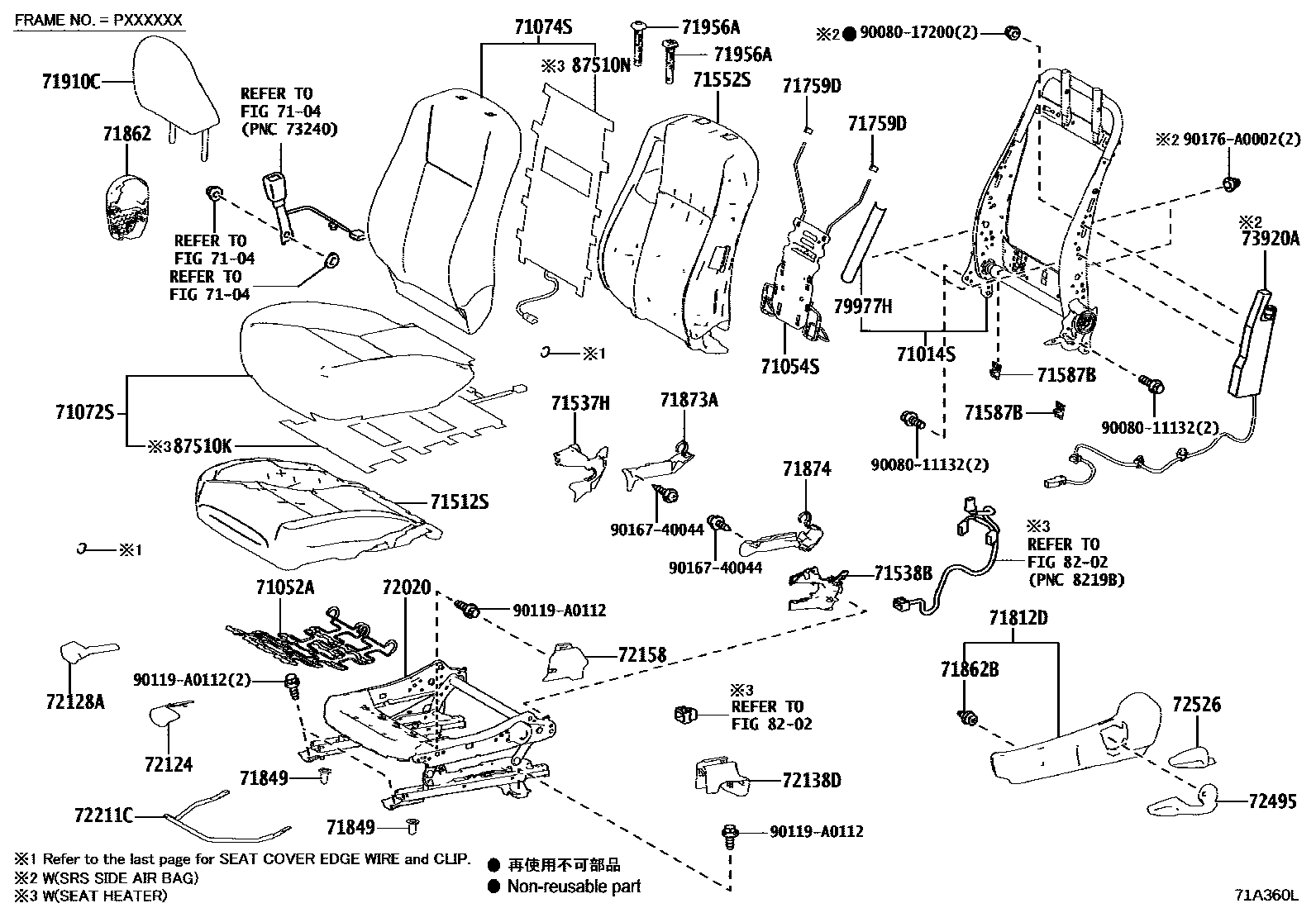

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71013-02130i201608-201903
*213
main71014-02120i201608-201708
MEXICO DECONTENT
main71014-0R030i201608-201903
*348
main71013-02320i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*213
main71014-06140i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*348
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-08010i201608-201903
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-06090supersedes 71053-06090i201308-201608
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0Z300-B1supersedes 71072-0Z370-B2i201404-201608
STEEL GRAY,TRIM1#
main71072-0Z300-B2i201608-201903
STEEL GRAY,TRIM1#
main71072-0Z310-A1i201308-201608
IVORY,TRIM0#,*348
main71072-0Z310-A3i201608-201707
FLAXEN,TRIM0#,*348
main71072-0Z310-B1i201404-201608
GRAY,TRIM1#
main71072-0Z310-B3i201608-201707
GRAY,TRIM1#,*348
main71072-0Z310-C3i201608-201708
BLACK,TRIM2#
main71072-0Z310-E2i201404-201608
BLACK,TRIM4#
main71072-0Z311-A3i201708-201903
FLAXEN,TRIM0#,*348
main71072-0Z311-B3i201708-201903
GRAY,TRIM1#,*348
main71072-0Z311-C3i201708-201903
BLACK,TRIM2#
main71072-0Z340-24i201608-201903
BLACK,TRIM2#
main71072-0Z340-C6i201404-201608
BLACK,TRIM2#
main71072-0Z340-E5i201308-201608
BLACK,TRIM4#,*348
main71072-0Z340-E9i201608-201903
BLACK/ORANGE,TRIM4#
main71072-0Z340-J5i201404-201608
BLACK,TRIM8#
main71072-0Z340-J9i201608-201903
BLACK/BLUE,TRIM8#
main71072-0Z370-B4i201608-201903
STEEL GRAY,TRIM1#,*213
main71072-0Z380-A3i201308-201608
IVORY,TRIM0#,*213
main71072-0Z380-A6i201608-201707
FLAXEN,TRIM0#,*213
main71072-0Z380-B3i201308-201608
GRAY,TRIM1#,*213
main71072-0Z380-B6i201608-201707
GRAY,TRIM1#,*213
main71072-0Z380-E4i201308-201608
AMBER,TRIM4#,*213
main71072-0Z381-A6i201708-201903
FLAXEN,TRIM0#,*213
main71072-0Z381-B6i201708-201903
GRAY,TRIM1#,*213
main71072-0Z381-C5i201708-201903
BLACK,TRIM2#,*213
main71072-0Z390-E2i201308-201608
BLACK,TRIM4#,*213
main71072-0Z390-E8i201608-201903
ORANGE,TRIM4#,*213
main71072-0Z390-J2i201308-201608
BLACK,TRIM8#,*213
main71072-0Z390-J8i201608-201903
BLUE,TRIM8#,*213
main71072-0Z350-C5i201308-201608
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*348
main71072-0Z350-C7supersedes 71072-0Z380-C5i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348
main71072-0Z400-C2i201308-201401
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71072-0Z401-C2supersedes 71072-0Z390-C3i201401-201507
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71072-0Z402-C2i201508-201608
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71072-0Z402-C8supersedes 71072-0Z390-24i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213
main71072-0Z410-C3i201308-201401
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71072-0Z411-C3i201401-201507
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71072-0Z412-C3i201508-201608
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71072-0Z412-C7supersedes 71072-0Z380-C5i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213
main71072-0Z590-C4i201308-201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348
main71072-0Z590-C6supersedes 71072-0Z380-C5i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348
main71072-0Z600-C4supersedes 71072-0Z390-C3i201308-201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348
main71072-0Z600-C8supersedes 71072-0Z390-24i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348
main71072-0Z610-C4supersedes 71072-0Z390-C3i201308-201608
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*348
main71072-0Z610-C8supersedes 71072-0Z390-24i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348
main71072-0Z640-C3i201308-201601
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213
main71072-0Z640-C7i201601-201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213
main71072-0Z640-C8supersedes 71072-0Z380-C5i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213
main71072-0Z650-C2supersedes 71072-0Z390-C3i201308-201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213
main71072-0Z650-C8supersedes 71072-0Z390-24i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0ZA01-B2i201708-201903
STEEL GRAY,TRIM1#
main71074-0ZA10-A1i201404-201608
IVORY,TRIM0#
main71074-0ZA10-A3i201608-201708
FLAXEN,TRIM0#
main71074-0ZA10-B1i201308-201608
GRAY,TRIM1#,*348
main71074-0ZA10-B3i201608-201707
GRAY,TRIM1#,*348
main71074-0ZA10-C4i201608-201708
BLACK,TRIM2#
main71074-0ZA10-E2i201308-201608
AMBER,TRIM4#,*348
main71074-0ZA11-A3i201708-201903
FLAXEN,TRIM0#,*348
main71074-0ZA11-B3i201708-201903
GRAY,TRIM1#,*348
main71074-0ZA11-C4i201708-201903
BLACK,TRIM2#
main71074-0ZA30-20i201608-201903
BLACK,TRIM2#
main71074-0ZA30-C5i201404-201608
BLACK,TRIM2#
main71074-0ZA30-E4i201404-201608
BLACK,TRIM4#
main71074-0ZA30-E6i201608-201903
BLACK/ORANGE,TRIM4#
main71074-0ZA30-J4i201308-201608
BLACK,TRIM8#,*348
main71074-0ZA30-J6i201608-201903
BLACK/BLUE,TRIM8#
main71074-0ZA60-A1i201308-201608
IVORY,TRIM0#,*213
main71074-0ZA60-A4i201608-201707
FLAXEN,TRIM0#,*213
main71074-0ZA60-B1i201308-201608
GRAY,TRIM1#,*213
main71074-0ZA60-B4i201608-201707
GRAY,TRIM1#,*213
main71074-0ZA60-E2i201308-201608
AMBER,TRIM4#,*213
main71074-0ZA61-A4i201708-201903
FLAXEN,TRIM0#,*213
main71074-0ZA61-B4i201708-201903
GRAY,TRIM1#,*213
main71074-0ZA61-C5i201708-201903
BLACK,TRIM2#,*213
main71074-0ZA70-E1i201308-201608
BLACK,TRIM4#,*213
main71074-0ZA70-E5i201608-201903
ORANGE,TRIM4#,*213
main71074-0ZA70-J1i201308-201608
BLACK,TRIM8#,*213
main71074-0ZA70-J5i201608-201903
BLUE,TRIM8#,*213
main71074-0ZE60-B1supersedes 71074-0ZA50-B1i201404-201608
STEEL GRAY,TRIM1#
main71074-0ZE60-B2supersedes 71074-0ZA50-B2i201608-201708
MEXICO DECONTENT,STEEL GRAY,TRIM1#
main71074-0ZA40-C4i201308-201608
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*348
main71074-0ZA80-C1i201308-201401
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71074-0ZA81-C1supersedes 71074-0ZA70-C2i201401-201507
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71074-0ZA82-C1i201508-201608
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71074-0ZA82-C5supersedes 71074-0ZA70-20i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213
main71074-0ZA90-C1i201308-201401
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71074-0ZA91-C1i201401-201507
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71074-0ZA92-C1i201508-201601
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71074-0ZA92-C4supersedes 71074-0ZA60-C5i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213
main71074-0ZA92-C5i201601-201608
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71074-0ZC90-C3supersedes 71074-0ZA60-C5i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348
main71074-0ZD00-C3supersedes 71074-0ZA70-C2i201308-201608
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*348
main71074-0ZD00-C5supersedes 71074-0ZA70-20i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348
main71074-0ZD10-C3supersedes 71074-0ZA70-C2i201308-201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348
main71074-0ZD10-C5supersedes 71074-0ZA70-20i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348
main71074-0ZD50-C1i201308-201601
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213
main71074-0ZD50-C5i201601-201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213
main71074-0ZD50-C6supersedes 71074-0ZA60-C5i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213
main71074-0ZD60-C1supersedes 71074-0ZA70-C2i201308-201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213
main71074-0ZD60-C5supersedes 71074-0ZA70-20i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-02450i201308-201506
MEXICO DECONTENT
main71512-02451i201507-201608
MEXICO DECONTENT
main71512-02470i201404-201506
main71512-02471i201507-201608
*348
main71512-02480i201608-201903
*213
main71512-02460i201308-201506
SEAT COVER MATERIAL-LEATHER,*348
main71512-02461i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*348
main71512-02540supersedes 71512-02490i201308-201506
SEAT COVER MATERIAL-LEATHER,*348
main71512-02541supersedes 71512-02490i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*348
main71512-02660i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*213
main71512-02670supersedes 71512-02490i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*213
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-0R020-C0supersedes 71537-0R020-C0i201308-201608
MEXICO DECONTENT,BLACK,TRIM1#
main71537-0R020i201608-201708
MEXICO DECONTENT
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-0R020-C0supersedes 71538-0R020-C0i201308-201608
MEXICO DECONTENT,BLACK,TRIM1#
main71538-0R020i201608-201708
MEXICO DECONTENT
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-02680i201308-201608
*213
main71552-02690i201308-201608
*213
main71552-02750i201404-201608
main71552-02880i201404-201608
main71552-02890i201308-201608
*348
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-52030×2i201308-201608
MEXICO DECONTENT
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-52030×2i201308-201608
MEXICO DECONTENT
71759DHOOK, FRONT SEATBACK, NO.2
main71759-06020×2i201608-201903
*213
main71759-0E010×2i201405-201608
MEXICO DECONTENT
main71759-47010×2i201308-201404
MEXICO DECONTENT
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-02530-C0i201608-201903
BLACK,TRIM0#,1#,2#
main71812-02570-C0i201308-201608
BLACK,TRIM1#,*213
main71812-02690-C0supersedes 71812-02570-C0i201608-201708
BLACK,TRIM1#
main71812-02550-C0supersedes 71812-02530-C0i201308-201608
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*348
main71812-02580-C0i201308-201608
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213
main71812-02690i201608-201708
MEXICO DECONTENT
71849CAP, SEAT ADJUSTER COVER, LH
main71848-47010×2i201308-201608
*213,*348
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-06140-C0i201308-201608
BLACK,TRIM1#,*213
main71862-0R050-C0supersedes 71862-0R050-C0i201608-201903
BLACK,TRIM0#,1#,2#
main71862-0R050i201608-201708
MEXICO DECONTENT
main71862-0R070-C0supersedes 71862-0R050-C0i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348
71862BCLIP(FOR FRONT SEAT SHIELD, LH)
main71769-0C020i201308-201608
*213
main71769-47020i201308-201608
MEXICO DECONTENT
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-06300-C0i201608-201903
BLACK,TRIM0#,1#,2#
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-08010i201308-201608
MEXICO DECONTENT
main71873-08020i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-08010i201308-201608
MEXICO DECONTENT
main71874-06540i201308-201608
SEAT COVER MATERIAL-LEATHER,*348
71910CHEADREST ASSY, FRONT SEAT
main71910-02J70-B0supersedes 71910-02K10-B1i201608-201903
STEEL GRAY,TRIM1#
main71910-02J80-A2i201404-201608
IVORY,TRIM0#
main71910-02J80-A3i201608-201707
FLAXEN,TRIM0#,*348
main71910-02J80-B2i201308-201608
GRAY,TRIM1#,*348
main71910-02J80-C2i201608-201708
BLACK,TRIM2#
main71910-02J80-E2i201404-201608
AMBER,TRIM4#
main71910-02J81-A3i201708-201903
FLAXEN,TRIM0#,*348
main71910-02J81-B2i201708-201903
GRAY,TRIM1#,*348
main71910-02J81-C2i201708-201903
BLACK,TRIM2#
main71910-02J90-21i201608-201709
BLACK/BLUE,TRIM2#,8#
main71910-02J90-22i201608-201709
BLACK/ORANGE,TRIM4#
main71910-02J90-C5i201308-201608
BLACK,TRIM22,*348
main71910-02J90-C6i201404-201608
BLACK,TRIM2#,4#,8#
main71910-02J91-21i201709-201903
BLACK/BLUE,TRIM2#,8#
main71910-02J91-22i201709-201903
BLACK/ORANGE,TRIM4#
main71910-02K10-B1i201608-201903
STEEL GRAY,TRIM1#,*213
main71910-02K20-A3i201308-201608
IVORY,TRIM0#,*213
main71910-02K20-A4i201608-201707
FLAXEN,TRIM0#,*213
main71910-02K20-B3i201308-201608
GRAY,TRIM1#,*213
main71910-02K20-E3i201308-201608
AMBER,TRIM4#,*213
main71910-02K21-A4i201708-201903
FLAXEN,TRIM0#,*213
main71910-02K21-B3i201708-201903
GRAY,TRIM1#,*213
main71910-02K21-C2i201708-201903
BLACK,TRIM2#,*213
main71910-02K30-22i201608-201903
BLACK/BLUE,TRIM2#,8#,*213
main71910-02K30-23i201608-201903
BLACK/ORANGE,TRIM4#,*213
main71910-02K30-C6i201601-201608
BLACK,TRIM22,*213
main71910-02K30-C7i201601-201608
BLACK,TRIM22,4#,8#,*213
main71910-02K00-C5supersedes 71910-02K20-C2i201608-201709
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348
main71910-02K01-C5supersedes 71910-02K20-C2i201709-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348
main71910-02K40-C6supersedes 71910-02K20-C2i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213
71956ASUPPORT, FRONT SEAT HEADREST
main71930-06050-A0i201601-201608
W(LOCK),IVORY,TRIM0#,*213,(L)
main71930-06050-A1i201608-201903
W(LOCK),FLAXEN,TRIM0#,*213
main71930-06050-B1i201608-201903
W(LOCK),GRAY,TRIM1#,*213
main71930-06050-C0i201608-201903
W(LOCK),BLACK,TRIM1#,*213
main71930-47020-A1i201408-201601
W(LOCK),IVORY,TRIM0#,*213
main71930-47020-A7i201608-201903
W(LOCK),FLAXEN,TRIM0#,*348
main71930-47020-B5i201404-201608
W(LOCK),GRAY,TRIM1#
main71930-47020-C0i201608-201710
W(LOCK),BLACK,TRIM2#,4#,8#
main71930-47020-C4i201710-201903
W(LOCK),BLACK,TRIM2#,4#,8#
main71931-06040-A0i201601-201608
W/O(LOCK),IVORY,TRIM0#,*213,(L)
main71931-06040-A1i201608-201903
W/O(LOCK),FLAXEN,TRIM0#,*213
main71931-06040-B1i201601-201608
W/O(LOCK),GRAY,TRIM1#,*213,(L)
main71931-06040-C0i201601-201608
W/O(LOCK),BLACK,TRIM2#,4#,*213,(L)
main71931-47020-A1i201308-201408
W/O(LOCK),IVORY,TRIM01,*213
main71931-47020-A7i201608-201903
W/O(LOCK),FLAXEN,TRIM0#,*348
main71931-47020-B5i201601-201608
W/O(LOCK),GRAY,TRIM1#,*213,(J)
main71931-47020-C0supersedes 71931-47020-C0i201404-201608
W/O(LOCK),BLACK,TRIM0#,1#,4#
main71931-47020-C4i201710-201903
W/O(LOCK),BLACK,TRIM1#
main71930-47020i201608-201708
W(LOCK),MEXICO DECONTENT
main71931-47020i201608-201708
W/O(LOCK),MEXICO DECONTENT
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-02480supersedes 72020-02480i201404-201406
sub73214-0E010
main72020-02481i201406-201608
MEXICO DECONTENT
main72020-02490supersedes 72020-02480i201308-201408
SEAT COVER MATERIAL-LEATHER,*348
sub73214-0E010
main72020-02491i201408-201608
SEAT COVER MATERIAL-LEATHER,*348
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-02090-C0i201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348
main72124-02100-C0supersedes 72124-02090-C0i201308-201408
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM0#,1#,2#,4#,*213
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-02030-C0supersedes 72128-02030-C0i201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348
main72128-02041-C0i201308-201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213
72138DCOVER, SEAT TRACK, OUTER, LH
main72138-02220-C0i201308-201608
BLACK,TRIM2#,4#,8#,*213,*348
main72138-02230-C0supersedes 72138-02220-C0i201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-02210-C0i201308-201608
BLACK,TRIM2#,4#,8#,*213,*348
main72158-02240-C0supersedes 72158-02210-C0i201308-201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213
72211HANDLE, SEAT TRACK ADJUSTING
main72211-02120i201308-201608
MEXICO DECONTENT
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-02120i201308-201608
MEXICO DECONTENT
72495HANDLE, VERTICAL ADJUSTING, LH
main72493-02020-C0i201608-201903
BLACK,TRIM0#,1#,2#,*213
main72495-02040-C0supersedes 72495-02040-C0i201308-201608
MEXICO DECONTENT,BLACK,TRIM1#
main72495-02040i201608-201708
MEXICO DECONTENT
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06080-C0i201308-201608
BLACK,TRIM1#,*213
main72526-08010-C0supersedes 72526-08010-C0i201404-201608
BLACK,TRIM0#,1#,4#
main72526-08010i201608-201708
MEXICO DECONTENT
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-02190i201404-201608
main73920-02220i201308-201608
*213
79977HFELT, FRONT SEATBACK, LH
main79977-0R010×2i201701-201903
8202
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-02290i201308-201401
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213
main87510-02291i201401-201507
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213
main87510-02292i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*213
main87510-02300i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*348
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-02030i201308-201401
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213
main87530-02031i201401-201507
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213
main87530-02032i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*213
main87530-02040i201608-201903
SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*348
main87530-02050i201308-201608
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*348
9008011132
main90080-11132
9008017200
main90080-17200
90119A0112
main90119-A0112
9016740044
main90167-40044
90176A0002
main90176-A0002

41 parts on this diagram · 11 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
