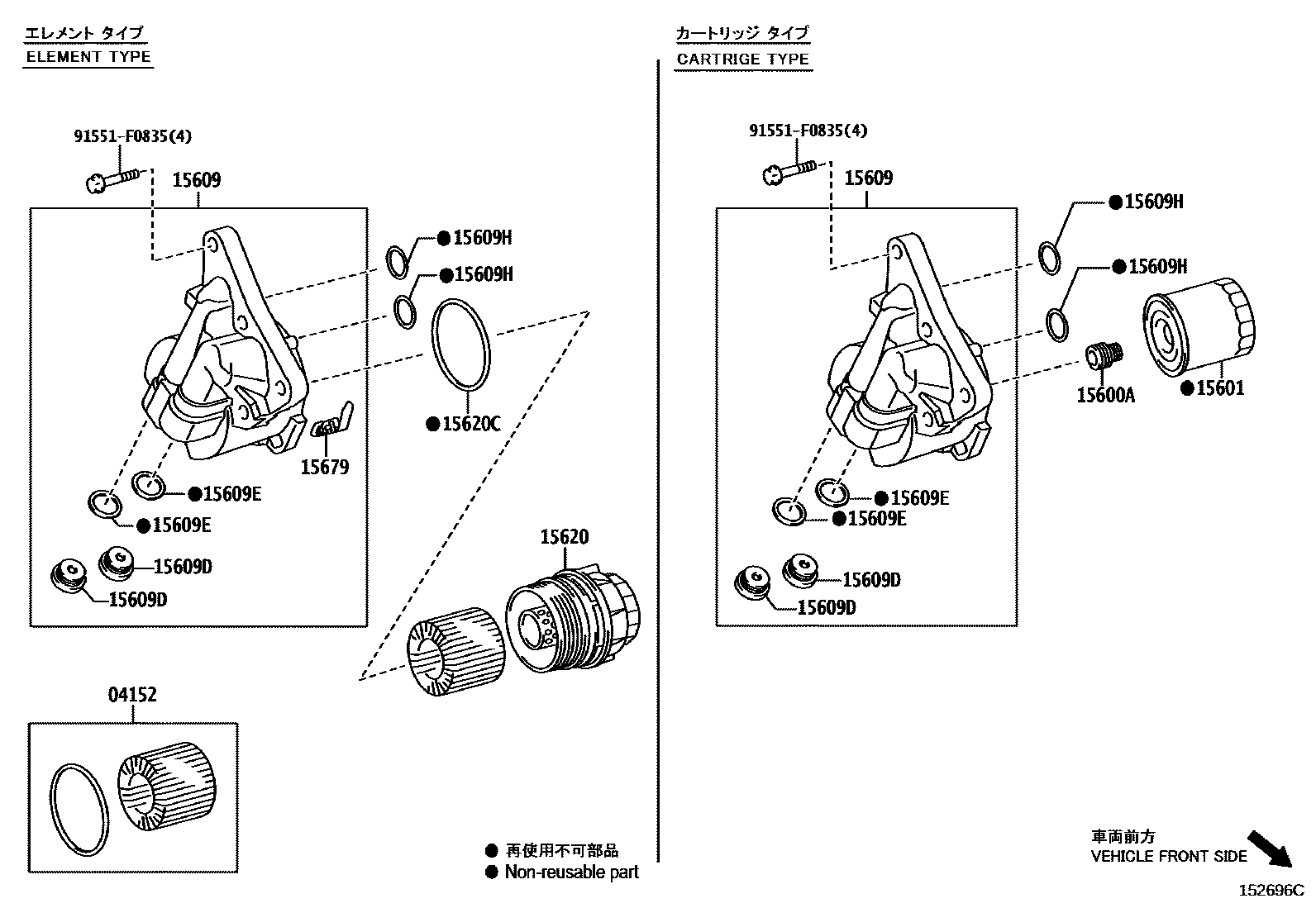

OIL FILTER
04152ELEMENT KIT, OIL FILTER
ELEMENT TYPE
15600AUNION(FOR OIL FILTER)
CARTRIGE TYPE
15601FILTER SUB-ASSY, OIL
15609BRACKET SUB-ASSY, OIL FILTER
CARTRIGE TYPE
ELEMENT TYPE
15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
ELEMENT TYPE
CARTRIGE TYPE
15609EGASKET, W/HEAD STRAIGHT SCREW PLUG
CARTRIGE TYPE
ELEMENT TYPE
15609HRING, O(FOR OIL FILTER BRACKET)
(L),ELEMENT TYPE
(L),CARTRIGE TYPE
(J),CARTRIGE TYPE
(J),ELEMENT TYPE
15620CAP ASSY, OIL FILTER
(L),ELEMENT TYPE
(J),ELEMENT TYPE
15620CGASKET(FOR OIL FILTER CAP)
ELEMENT TYPE
15679CLIP, OIL FILTER BRACKET
ELEMENT TYPE
91551F0835
main91551-F0835
11 parts on this diagram · 1 diagram in section
