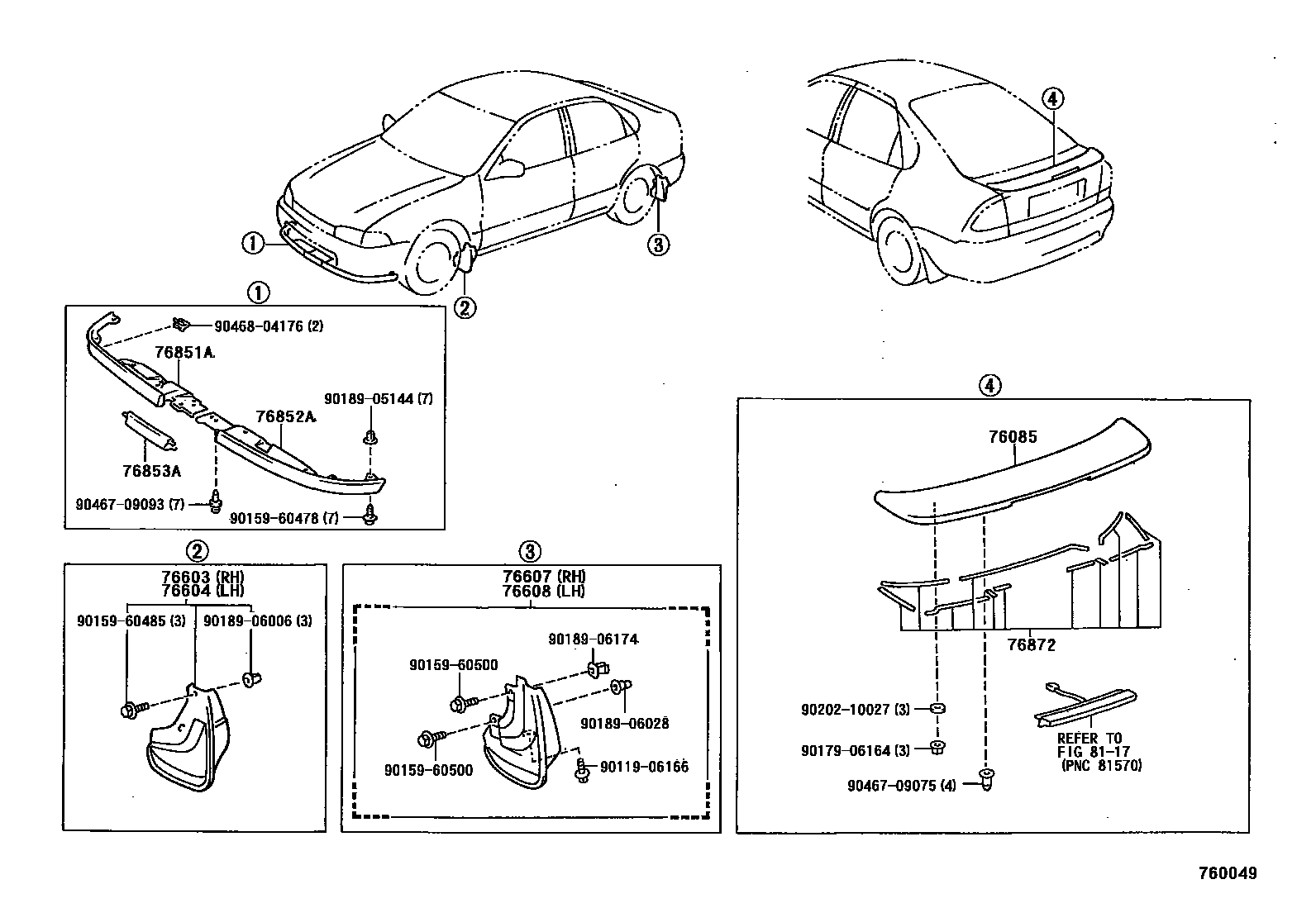

MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
SUPER WHITE 2,040
SILVER MICA M,192
BLUISH GRAY ME,182
SUPER RED 2,3E5
MD.GREEN M.M,6P0
DEEP TURQUOISE,747
DARK BLUE MICA M.,8G5
DARK BLUE MC.,8K8
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
SUPER WHITE 2,040
SILVER MICA M,192
BLUISH GRAY ME,182
SUPER RED 2,3E5
MD.GREEN M.M,6P0
DEEP TURQUOISE,747
DARK BLUE MICA M,8G5
DARK BLUE MC.,8K8
76851ACOVER, FRONT SPOILER, RH
76852ACOVER, FRONT SPOILER, LH
76853ARETAINER, FRONT SPOILER, UPPER NO.1
76872PROTECTOR, REAR SPOILER, NO.1
8117
9011906166
main90119-06166
9015960478
main90159-60478
9015960485
main90159-60485
9015960500
main90159-60500
9017906164
main90179-06164
9018905144
main90189-05144
9018906006
main90189-06006
9018906028
main90189-06028
9018906174
main90189-06174
9020210027
main90202-10027
9046709075
main90467-09075
9046709093
main90467-09093
9046804176
main90468-04176
23 parts on this diagram · 1 diagram in section
