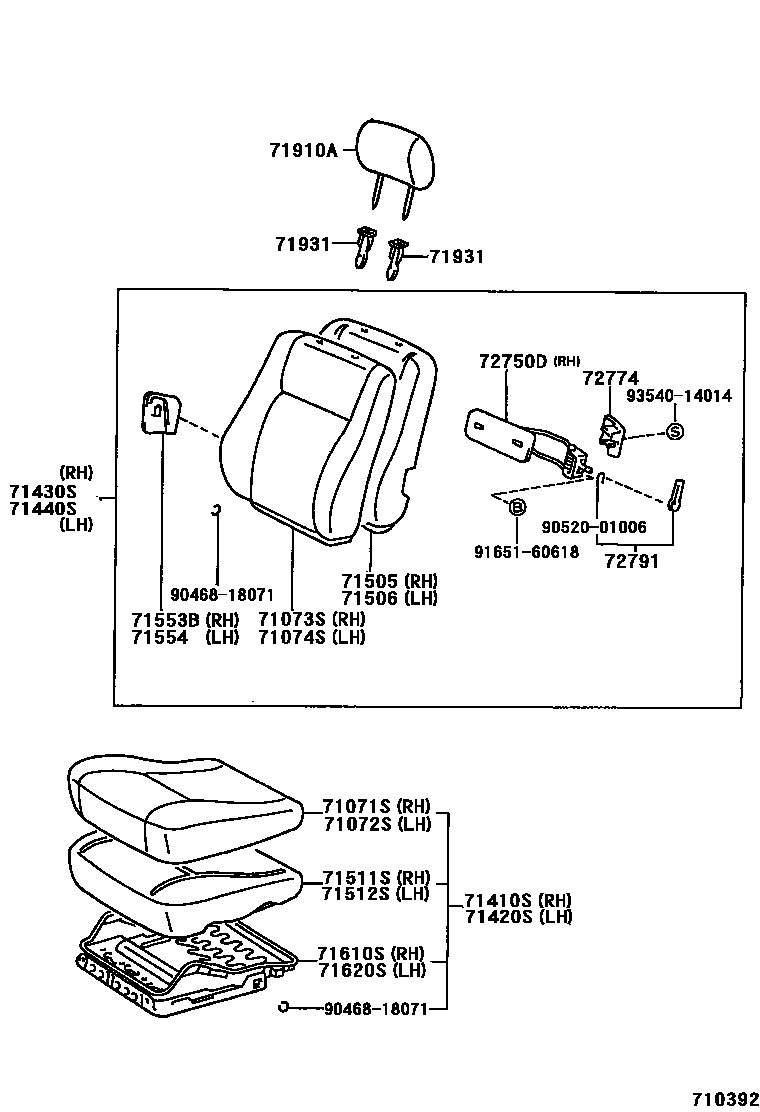

FRONT SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
SHADOW GRAY/BLACK,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
SHADOW GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
SHADOW GRAY,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
***,SHADOW GRAY/BLACK,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
***,SHADOW GRAY/BLACK,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
***,SHADOW GRAY/BLACK,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
***,SHADOW GRAY/BLACK,TRIM1#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71553BPAD, FRONT SEATBACK, B
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71910AHEADREST ASSY, FRONT SEAT
71931SUPPORT, FRONT SEAT HEADREST
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
72774PROTECTOR, LUMBAR SUPPORT SPRING
72791LEVER, LUMBAR SUPPORT
9046818071
main90468-18071
9052001006
main90520-01006
9165160618
main91651-60618
9354014014
main93540-14014
25 parts on this diagram · 2 diagrams in section
