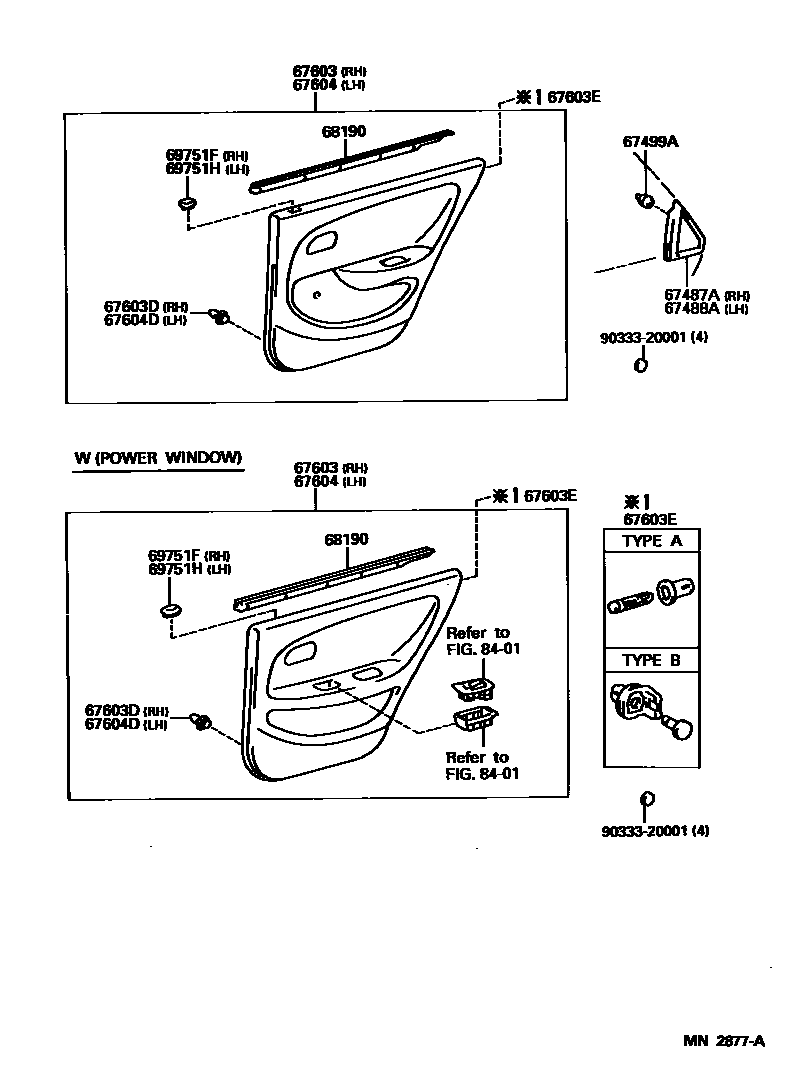

REAR DOOR PANEL & GLASS

0001 1 0002 1

67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH

main67487-12140iAE102199402-199605

67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH

main67488-12140iAE102199402-199605

67499ARETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH

main67771-12050×6iAE102199402-199605

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-1E670-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

main67630-1E680-B0iAE102199402-199605

W(*PW),SHADOW GRAY,TRIM1#

67603DRETAINER, REAR DOOR TRIM, RH

main67771-28020×6iAE102199402-199605

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-P0×4iAE102199402-199605

SHADOW GRAY,TRIM1#

main90467-09141×4iAE102199402-199605

TYPE B

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-1E670-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

main67640-1E680-B0iAE102199402-199605

W(*PW),SHADOW GRAY,TRIM1#

67604DRETAINER, REAR DOOR TRIM, LH

main67771-28020×6iAE102199402-199605

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-12190iAE102199402-199605

RH

main68174-12030iAE102199402-199605

LH

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-12050-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

69751HHOLDER, REAR DOOR LOCK CONTRAL KNOB

main69751-12050-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

8401

9033320001

main90333-20001

13 parts on this diagram · 2 diagrams in section
