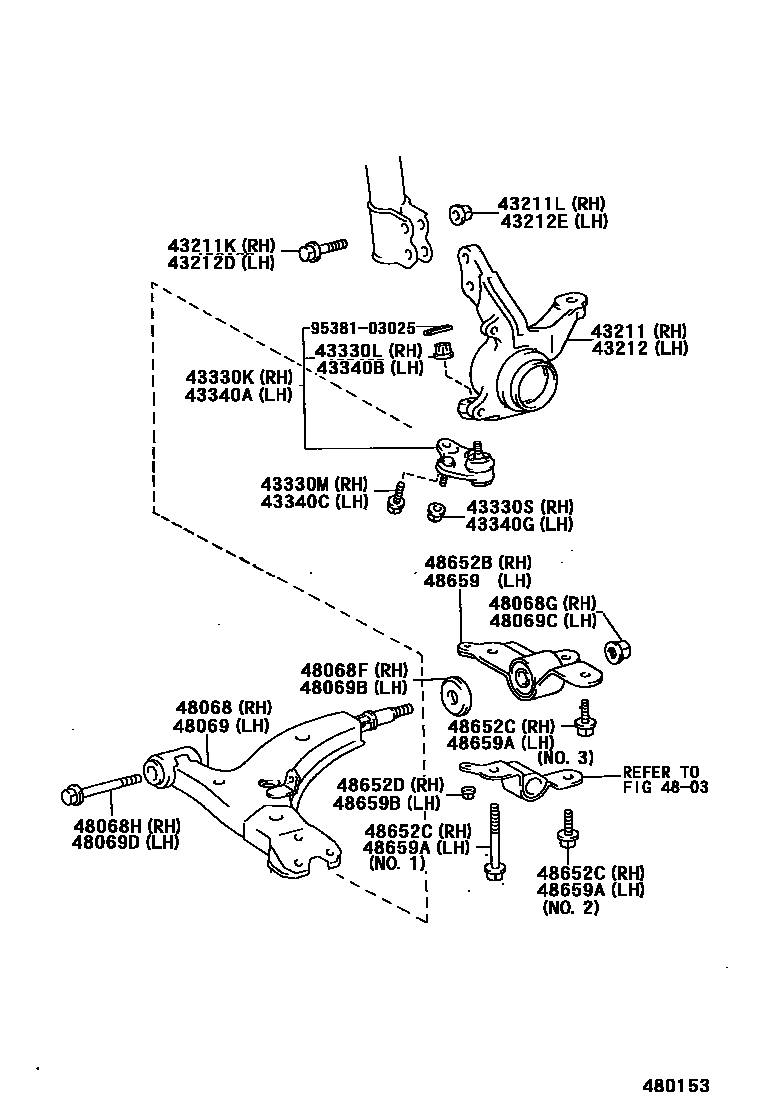

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

43211KNUCKLE, STEERING, RH

main43211-12220iAE102199402-199505

sub43211-12330

main43211-12240iAE102199402-199505

W(*66)

sub90389-16020

main43211-12290iAE102199505-199605

main43211-12300iAE102199505-199605

W(*66)

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001×2iAE102199505-199605

OD=15.0

main90105-15004iAE102199402-199605

OD=13.9

main90105-15005iAE102199402-199605

OD=13.3

main90105-15006iAE102199402-199605

OD=12.4

main90105-15007×2iAE102199402-199408

OD=15.0

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001×2iAE102199505-199605

43212KNUCKLE, STEERING, LH

main43212-12180iAE102199402-199505

sub43212-12290

main43212-12200iAE102199402-199505

W(*66)

sub90389-16020

main43212-12250iAE102199505-199605

main43212-12260iAE102199505-199605

W(*66)

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001×2iAE102199505-199605

OD=15.0

main90105-15004iAE102199402-199605

OD=13.9

main90105-15005iAE102199402-199605

OD=13.3

main90105-15006iAE102199402-199605

OD=12.4

main90105-15007×2iAE102199402-199408

OD=15.0

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001×2iAE102199505-199605

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19095iAE102199402-199505

main43330-19115iAE102199505-199605

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAE102199402-199605

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12156iAE102199402-199605

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12070×2iAE102199402-199605

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19095iAE102199402-199505

main43330-19115iAE102199505-199605

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAE102199402-199605

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12156iAE102199402-199605

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12070×2iAE102199402-199605

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-12140iAE102199402-199505

main48068-12180iAE102199505-199605

sub48068-12181

48068FRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90948-02152iAE102199402-199505

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-14006iAE102199402-199505

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14023iAE102199402-199505

main90119-14041iAE102199505-199605

NO.2

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-12140iAE102199402-199505

main48069-12180iAE102199505-199605

sub48069-12181

48069BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90948-02152iAE102199402-199505

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-14006iAE102199402-199505

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14023iAE102199402-199505

main90119-14041iAE102199505-199605

NO.2

48652BBRACKET, FRONT LOWER ARM, RH

main48075-12010iAE102199402-199505

main48652-12070iAE102199505-199605

48652CBOLT(FOR FRONT LOWER ARM BRACKET RH)

main90119-10692iAE102199402-199605

*10-1.25PX29-23,NO.2

main90119-12125iAE102199402-199605

*12-1.25PX31-25.3,NO.3

main90119-12238iAE102199402-199605

*12-1.25PX75-38,NO.1

48652DNUT(FOR FRONT LOWER ARM BRACKET RH)

main90179-08072iAE102199402-199408

main90179-08145iAE102199408-199605

sub90179-08123

48659BRACKET, FRONT LOWER ARM, LH

main48076-12010iAE102199402-199505

main48659-12070iAE102199505-199605

48659ABOLT(FOR FRONT LOWER ARM BRACKET LH)

main90119-10692iAE102199402-199605

*10-1.25PX29-23,NO.2

main90119-12125iAE102199402-199605

*12-1.25PX31-25.3,NO.3

main90119-12238iAE102199402-199605

*12-1.25PX75-38,NO.1

48659BNUT(FOR FRONT LOWER ARM BRACKET LH)

main90179-08072iAE102199402-199408

main90179-08145iAE102199408-199605

sub90179-08123

9538103025

main95381-03025

30 parts on this diagram · 3 diagrams in section
