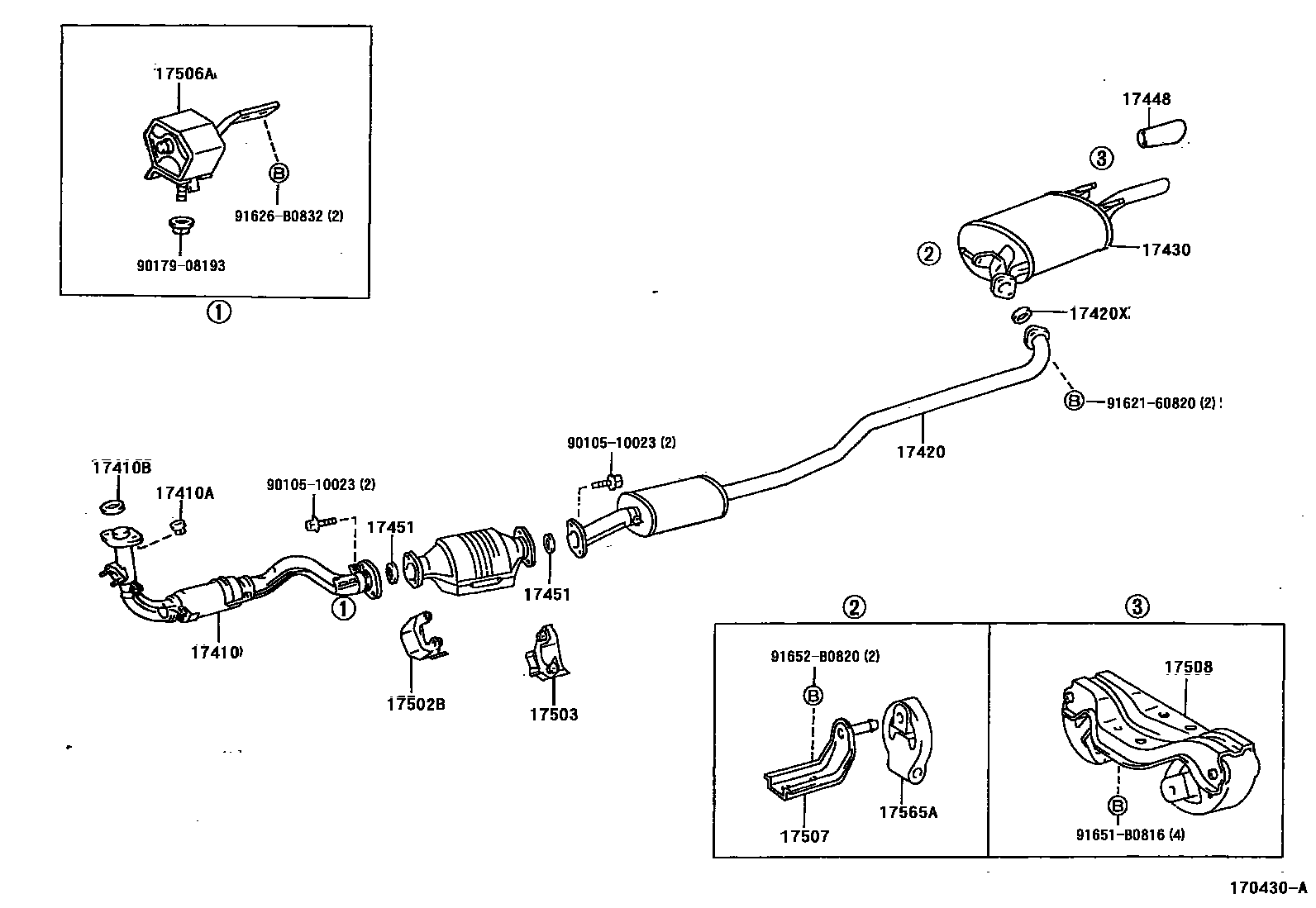

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17448BAFFLE, TAILPIPE
17451GASKET, EXHAUST PIPE
17502BBRACKET SUB-ASSY, CATALYTIC CONVERTER, FRONT
17503BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
sub17565-28020
9010510023
main90105-10023
9017908193
main90179-08193
9162160820
main91621-60820
91626B0832
main91626-B0832
91651B0816
main91651-B0816
91652B0820
main91652-B0820
20 parts on this diagram · 1 diagram in section
