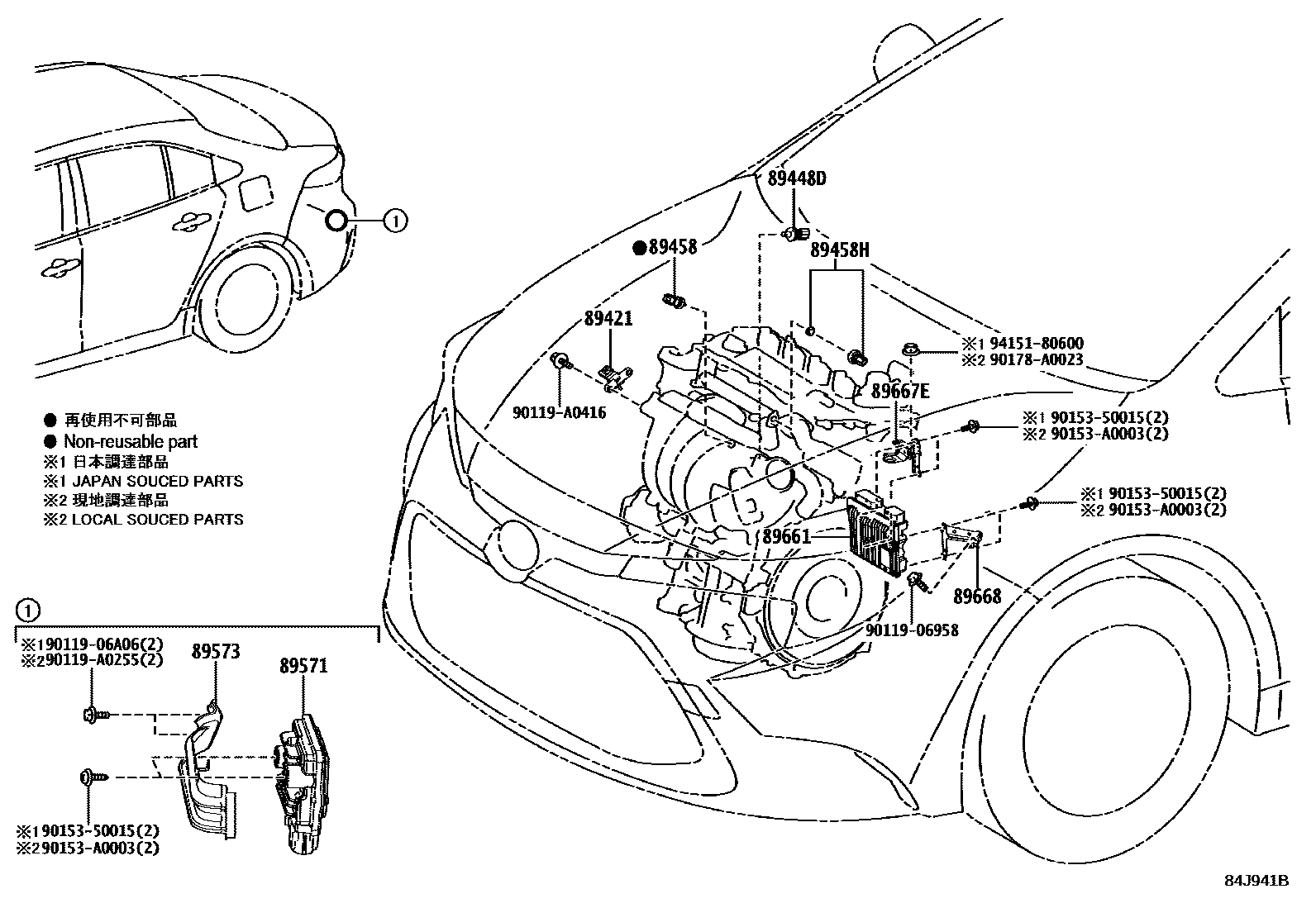

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-06020iMZEA12..6F201903-202410

main89421-26030iZRE212201903-202211

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-06010iMZEA1#201903-202410

89458SENSOR, FUEL PRESSURE

main89458-06010iMZEA1#201903-202410

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-06021iMZEA1#201903-202306

main89458-06022iMZEA1#202307-202410

89571COMPUTER, FUEL PUMP CONTROL

main89571-06010iMZEA12201903-202107

(L)

main89571-0R010iMZEA1#202211-202410

(L)

main89571-33030iMZEA12..CVT201903-202107

(J)

main89571-42010iMZEA1#202211-202410

(J)

main89571-48010iMZEA12202107-202211

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-02010iMZEA12..6F201903-202410

89661COMPUTER, ENGINE CONTROL

main89661-0ZV60iZRE212..CVT201903-202007

DENSO

sub89661-0ZV61

main89661-0ZV70iZRE212..6F201903-202007

DENSO

sub89661-0ZV71

main89661-0ZW10iMZEA12..6F201903-202007

DENSO

main89661-0ZW20iMZEA12..CVT201903-202007

DENSO

main89666-02790iMZEA1#202410

DENSO,*614

main89666-02B50iZRE212..CVT202007-202211

DENSO

main89666-02B60iZRE212..6F202007-202211

DENSO

main89666-02B90iMZEA12..CVT202007-202107

DENSO

main89666-02C00iMZEA12..6F202007-202106

DENSO

main89666-02D00iMZEA12202107-202211

DENSO

main89666-02E20iMZEA12202211-202410

DENSO,*614

main89666-02J20iMZEA18202211-202410

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02420iMZEA12201903-202410

main89667-02480iZRE212201903-202211

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02400iMZEA12201903-202410

main89668-02480iZRE212201903-202211

9011906958

main90119-06958

9011906A06

main90119-06A06

90119A0255

main90119-A0255

90119A0416

main90119-A0416

9015350015

main90153-50015

90153A0003

main90153-A0003

90178A0023

main90178-A0023

9415180600

main94151-80600

17 parts on this diagram · 2 diagrams in section
