FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL PUMP 0008 1FUEL PUMP 0009 1FUEL PUMP 0010 1FUEL PUMP 0011 1FUEL PUMP 0012 1FUEL TUBE 0013 1FUEL TUBE 0014 1FUEL TUBE 0015 1FUEL TUBE 0016 1FUEL TUBE 0017 1FUEL LID OPENER

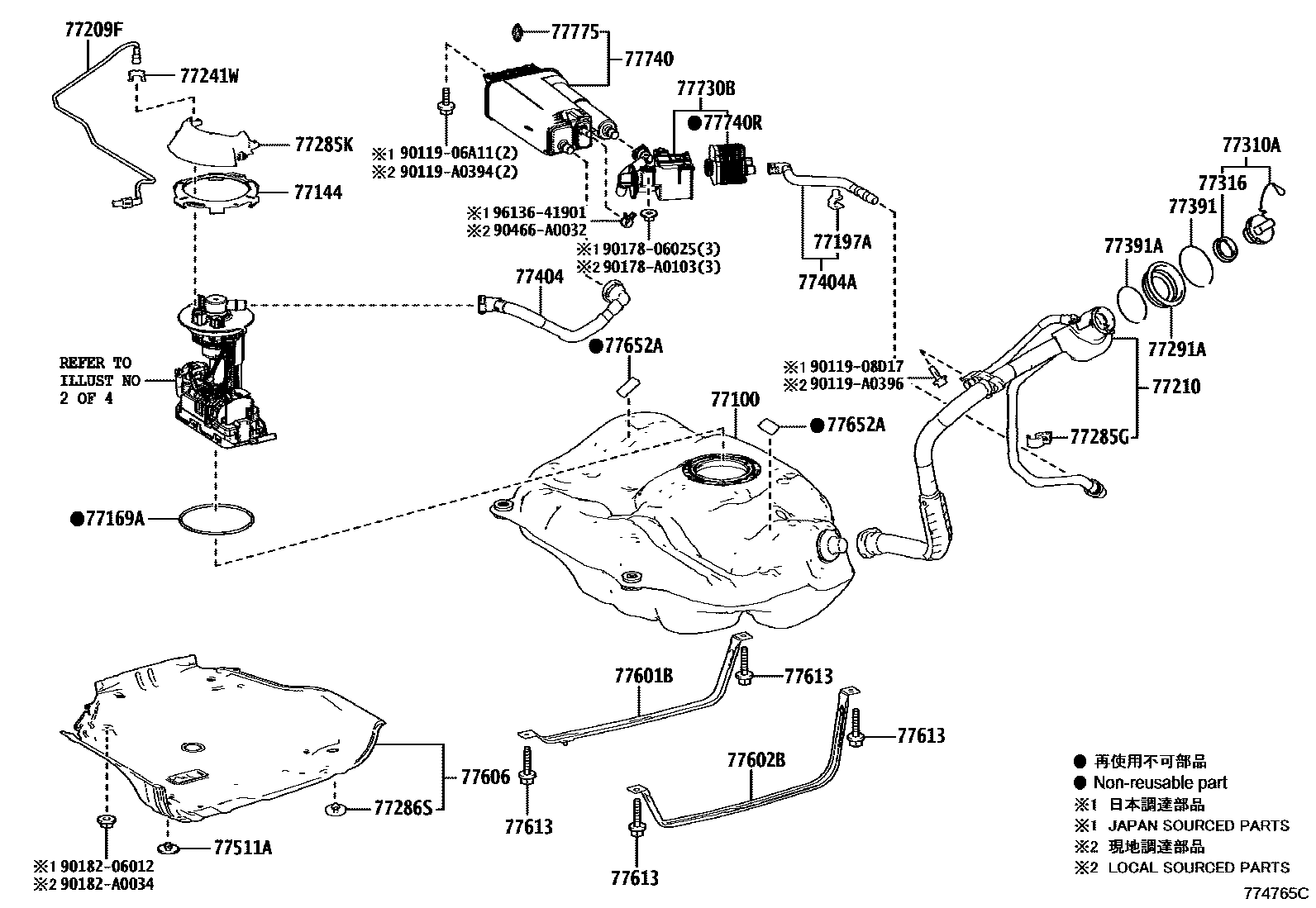

77100TANK ASSY, FUEL

main77001-02850iMZEA12201903-202007

main77001-02A90iMZEA12202211-202410

main77001-0A210iMZEA18202410

77144RETAINER, FUEL PUMP GAUGE

main77144-06040iMZEA1#202410

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02050iMZEA12202107-202211

main77169-06060iMZEA12201903-202007

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-47010iMZEA12201903-202007

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02210iMZEA12201903-202007

main77209-0A120iMZEA18202211-202410

main77209-10130iMZEA12202211-202410

main77209-12330iZRE212202007-202211

77210PIPE ASSY, FUEL TANK FILLER

main77210-02650iMZEA12..CVT202007-202107

main77210-02780iZRE212201903-202001

main77210-02A40iMZEA18202211-202410

main77210-12621iMZEA12202211-202410

77241WCLIP, TUBE JOINT

main77241-02010iMZEA1#202410

77285GCLAMP, FUEL TUBE, NO.1

main77285-06510iMZEA12201903-202007

77285KCLAMP, FUEL TUBE, NO.1

main77285-02220iMZEA12..6F202007-202106

main77285-06240iMZEA18202410

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iMZEA12,ZRE212201903-202003

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02250iMZEA1#202410

77310ACAP ASSY, FUEL TANK

main77300-07040iMZEA12..6F202007-202106

main77300-12020iMZEA1#202211-202410

77316GASKET, FUEL TANK CAP

main77316-06090iMZEA12..6F202007-202106

main77316-52040iMZEA1#202410

77391RING, FUEL INLET BOX

main77391-02041iMZEA12..6F202007-202106

77391ARING, FUEL INLET BOX

main77391-20040iMZEA12..6F202007-202106

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-02300iMZEA12201903-202007

77404AHOSE SUB-ASSY, FUEL TANK VENT

main77404-02310iMZEA12201903-202007

77511ABRACKET, FUEL TANK

main77512-06060×4iMZEA1#202211-202410

main77512-35140×4iMZEA12..6F202007-202106

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-02200iMZEA12202410

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-02190iMZEA12202410

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-02120iMZEA12202410

77613BOLT, FUEL TANK BAND SET

main90119-10995×4iMZEA12202410

(J)

main90119-A0430×4iZRE212;MZEA12..CVT202007-202211

(L)

77652ACUSHION, FUEL TANK, NO.2

main77652-02140×2iMZEA12202410

77730BCANISTER ASSY, CHARCOAL W/OUTLET HOSE

main77730-02010iMZEA12201903-202007

77740CANISTER ASSY, CHARCOAL

main77740-06230iMZEA12201903-202007

77740RPUMP SUB-ASSY, LEAK DETECTION

main90910-AF006iMZEA12201903-202007

77775GUIDE, CHARCOAL CANISTER OUTLET

main77775-33010iMZEA12201903-202007

9011906A11

main90119-06A11

9011908D17

main90119-08D17

90119A0394

main90119-A0394

90119A0396

main90119-A0396

9017806025

main90178-06025

90178A0103

main90178-A0103

9018206012

main90182-06012

90182A0034

main90182-A0034

90466A0032

main90466-A0032

9613641901

main96136-41901

37 parts on this diagram · 16 diagrams in section
