REAR SEAT & SEAT TRACK

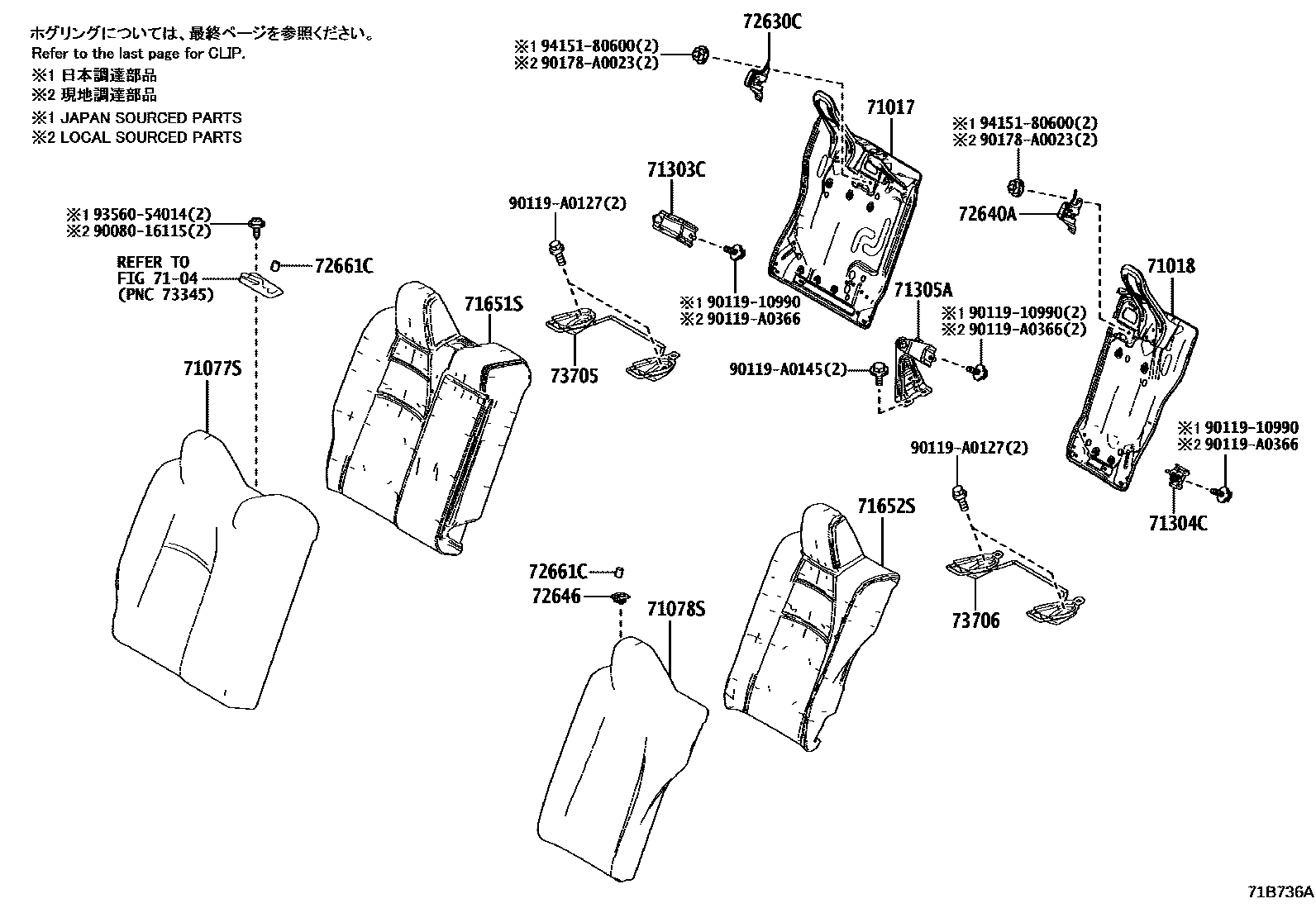

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-02A80i201903-202410
main71017-02A90i202007-202410
main71017-02A90i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71017-02B00i202007-202211
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-02520i202007-202410
main71018-02520i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71018-02560i202007-202211
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-0Z320-B0i201903-202008
GRAY,TRIM1#
main71077-0Z320-C6i201903-202008
BLACK,TRIM2#
main71077-0Z321-B0i202009-202211
GRAY,TRIM1#
main71077-0Z321-C6i202009-202211
BLACK,TRIM2#
main71077-0Z330-23i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71077-0Z330-23i201903-202007
BLACK,TRIM2#
main71077-0Z330-B0i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71077-0Z330-B0i201903-202007
GRAY,TRIM1#
main71077-0Z330-E0i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0#
main71077-0Z330-E0i201903-202007
ORCHID BROWN,TRIM0#
main71077-0Z332-24i202007-202211
BLACK,TRIM2#
main71077-0Z332-B1i202007-202211
GRAY,TRIM1#
main71077-0Z332-E1i202007-202211
ORCHID BROWN,TRIM0#
main71077-0ZA50-B0i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER),SE GRAY,TRIM23
main71077-0ZA50-B0i201903-202007
SE GRAY,TRIM23
main71077-0ZA50-C9i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM20,22
main71077-0ZA50-C9i201903-202007
BLACK,TRIM20,22
main71077-0ZA80-22i202007-202008
BLACK,TRIM20
main71077-0ZA80-J0i202007-202008
BLACK/BLUE,TRIM21
main71077-0ZA81-22i202009-202211
BLACK,TRIM20
main71077-0ZA81-J0i202009-202211
BLACK/BLUE,TRIM21
main71077-0ZU40-B0i202211-202405
GRAY,TRIM1#
main71077-0ZU40-B1i202405-202410
GRAY,TRIM1#
main71077-0ZU40-C0i202211-202405
BLACK / GRAY DOT,TRIM2#
main71077-0ZU40-C1i202405-202410
BLACK/GRAY DOT,TRIM2#
main71077-0ZU50-B0i202211-202405
GRAY,TRIM1#
main71077-0ZU50-B1i202405-202410
GRAY,TRIM1#
main71077-0ZU50-C0i202211-202405
BLACK / GRAY DOT,TRIM2#
main71077-0ZU50-C1i202405-202410
BLACK/GRAY DOT,TRIM2#
main71077-0ZU50-E0i202211-202405
BROWN / FROMAGE,TRIM0#
main71077-0ZU50-E1i202405-202410
ORCHID BROWN/FROMGE,TRIM0#
main71077-0ZU60-C1i202211-202405
BLACK/RED,TRIM26
main71077-0ZU60-C2i202211-202405
BLACK/BLACK,TRIM20
main71077-0ZU60-C3i202405-202410
BLACK/RED,TRIM26
main71077-0ZU60-C4i202405-202410
BLACK/BLACK,TRIM20
main71077-0ZU60-C4i202410
BLACK/BLACK,TRIM2#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-02Y50-B0i201903-202008
GRAY,TRIM1#
main71078-02Y50-C6i201903-202008
BLACK,TRIM2#
main71078-02Y51-B0i202009-202211
GRAY,TRIM1#
main71078-02Y51-C6i202009-202211
BLACK,TRIM2#
main71078-02Y60-23i201903-202007
BLACK,TRIM2#
main71078-02Y60-23i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71078-02Y60-B0i201903-202007
GRAY,TRIM1#
main71078-02Y60-B0i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71078-02Y60-E0i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0#
main71078-02Y60-E0i201903-202007
ORCHID BROWN,TRIM0#
main71078-02Y62-24i202007-202211
BALCK,TRIM2#
main71078-02Y62-B1i202007-202211
GRAY,TRIM1#
main71078-02Y62-E1i202007-202211
ORCHID BROWN,TRIM0#
main71078-02Y70-B0i201903-202007
SE GRAY,TRIM23
main71078-02Y70-B0i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER),SE GRAY,TRIM23
main71078-02Y70-C9i201903-202007
BLACK,TRIM20,22
main71078-02Y70-C9i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM20,22
main71078-02Z00-22i202007-202008
BLACK,TRIM20
main71078-02Z00-J0i202007-202008
BLACK/BLUE,TRIM21
main71078-02Z01-22i202009-202211
BLACK,TRIM20
main71078-02Z01-J0i202009-202211
BLACK/BLUE,TRIM21
main71078-0ZD10-B0i202211-202405
GRAY,TRIM1#
main71078-0ZD10-B1i202405-202410
GRAY,TRIM1#
main71078-0ZD10-C0i202211-202405
BLACK / GRAY DOT,TRIM2#
main71078-0ZD10-C1i202405-202410
BLACK/GRAY DOT,TRIM2#
main71078-0ZD10-E0i202211-202405
BROWN / FROMAGE,TRIM0#
main71078-0ZD10-E1i202405-202410
ORCHID BROWN/FROMGE,TRIM0#
main71078-0ZD30-C1i202211-202405
BLACK/RED,TRIM26
main71078-0ZD30-C2i202211-202405
BLACK/BLACK,TRIM20
main71078-0ZD30-C3i202405-202410
BLACK/RED,TRIM26
main71078-0ZD30-C4i202405-202410
BLACK/BLACK,TRIM20
main71078-0ZD30-C4i202410
BLACK/BLACK,TRIM2#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-02300i201903-202410
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71304-02040i201903-202410
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-02220i201903-202410
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-02860i201903-202410
main71651-02870i202007-202410
main71651-02870i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71651-02880i202007-202211
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-02610i201903-202007
SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71652-02610i202007-202410
main71652-02640i202007-202211
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-02210i201903-202410
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-02220i201903-202410
72646GROMMET, REAR SEATBACK STOP BUTTON
main72646-02110-C0i201903-202410
BLACK,TRIM0#,1#,2#
main72646-02110-C0i202007-202410
BLACK,TRIM2#
main72646-02110-C0i201903-202410
BLACK,TRIM1#,2#
72661CBUTTON, REAR SEATBACK LOCK RELEASE
main72661-02090-C0i202007-202410
BLACK,TRIM2#
main72661-02090-C0i201903-202410
BLACK,TRIM0#,1#,2#
main72661-02090-C0i201903-202410
BLACK,TRIM1#,2#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-02260i201903-202410
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-02150i201903-202410
9008016115
main90080-16115
9011910990
main90119-10990
90119A0127
main90119-A0127
90119A0145
main90119-A0145
90119A0366
main90119-A0366
90178A0023
main90178-A0023
9356054014
main93560-54014
9415180600
main94151-80600

24 parts on this diagram · 5 diagrams in section
