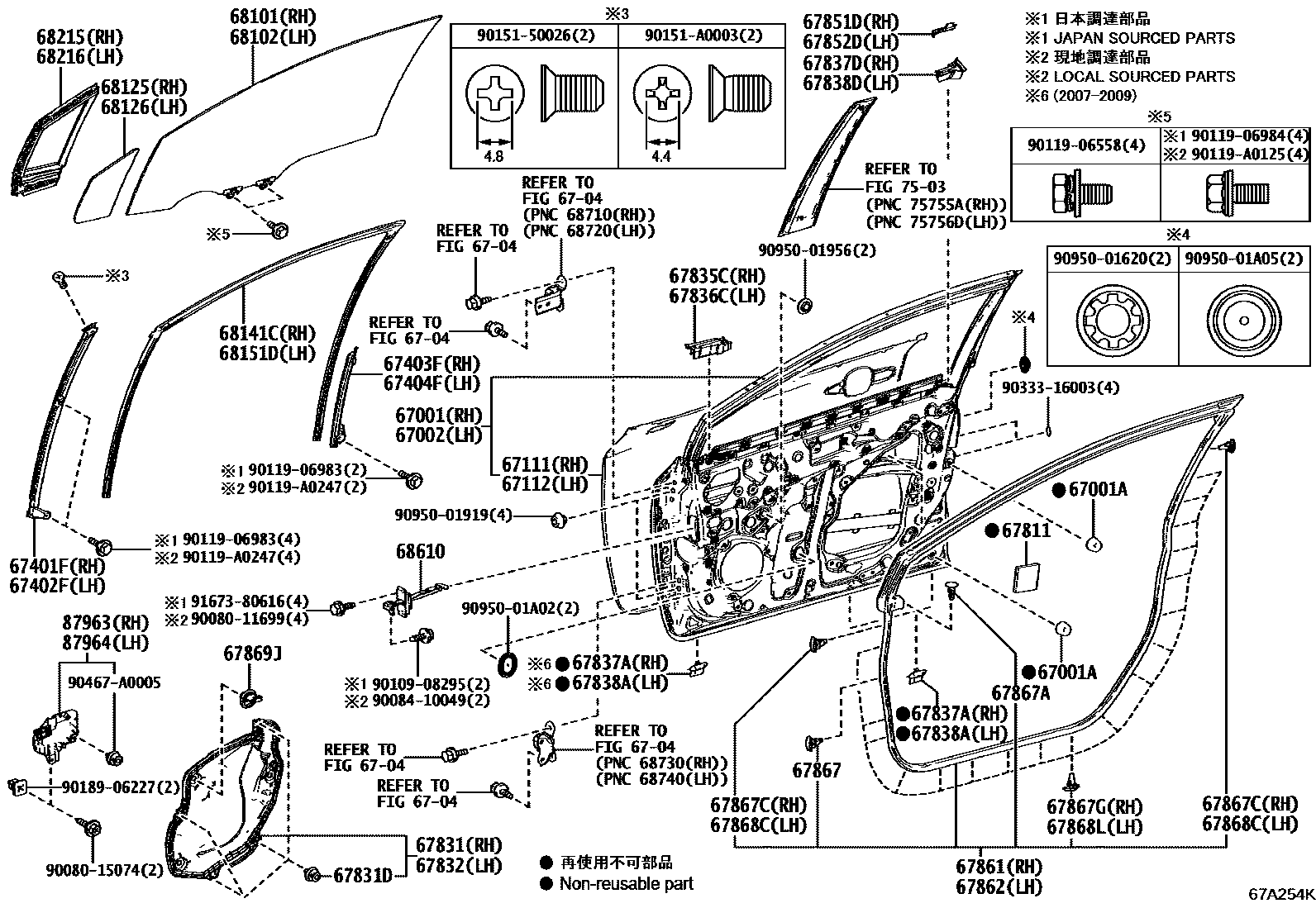

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02460iMZEA12,ZRE212201903-202007

sub90333-16003

main67001-02461iMZEA12..6F202007-202106

main67001-02650iMZEA1#202410

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iMZEA1#202410

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02460iMZEA12,ZRE212201903-202007

sub90333-16003

main67002-02461iZRE212;MZEA12..CVT202007-202211

main67002-02640iMZEA1#202410

6704

67111PANEL, FRONT DOOR, OUTER RH

main67111-02280iMZEA1#202410

67112PANEL, FRONT DOOR, OUTER LH

main67112-02280iMZEA12..6F202007-202106

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-02030iMZEA1#202410

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-02030iMZEA1#202410

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-02240iMZEA1#202410

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-02240iMZEA1#202410

67811PAD, FRONT DOOR SILENCER

main67811-AA040×4iMZEA1#202410

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02370iMZEA1#202410

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-A0005×8iMZEA1#202410

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02370iMZEA1#202410

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-02010iMZEA1#202410

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-02060iMZEA1#202410

67837ASEAL, FRONT DOOR VENT, RH

main67837-47060×2iMZEA1#202410

67837DSEAL, FRONT DOOR VENT, RH

main67837-02040iMZEA1#202410

67838ASEAL, FRONT DOOR VENT, LH

main67837-47060iMZEA1#202410

67838DSEAL, FRONT DOOR VENT, LH

main67838-02050iMZEA1#202410

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-02010iMZEA1#202410

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-02010iMZEA1#202410

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02330iMZEA1#202410

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02330iMZEA1#202410

67867CLIP, DOOR WEATHERSTRIP

main67867-52030×2iMZEA1#202410

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30030×2iMZEA1#202211-202410

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×2iMZEA12,ZRE212201903-202007

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150×18iMZEA12,ZRE212201903-202007

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×2iZRE212;MZEA12..CVT202007-202211

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150×18iMZEA12..6F202007-202106

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-0E010×6iMZEA12..6F202007-202106

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02520iMZEA1#202410

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02520iMZEA1#202410

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-02010iMZEA1#202410

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-02010iMZEA1#202410

68141CRUN, FRONT DOOR GLASS, RH

main68141-02370iMZEA12,ZRE212201903-201910

main68141-02371iMZEA1#202410

68151DRUN, FRONT DOOR GLASS, LH

main68151-02360iMZEA12,ZRE212201903-201910

main68151-02361iMZEA1#202211-202410

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-02010iMZEA12..6F202007-202106

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-02010iMZEA1#202410

68610CHECK ASSY, FRONT DOOR

main68610-02340×2iMZEA1#202410

7503

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-02010iMZEA1#202211-202410

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-02010iMZEA12,ZRE212201903-202007

9008011699

main90080-11699

9008015074

main90080-15074

9008410049

main90084-10049

9010908295

main90109-08295

9011906558

main90119-06558

9011906983

main90119-06983

9011906984

main90119-06984

90119A0125

main90119-A0125

90119A0247

main90119-A0247

9015150026

main90151-50026

90151A0003

main90151-A0003

9018906227

main90189-06227

9033316003

main90333-16003

90467A0005

main90467-A0005

9095001620

main90950-01620

9095001919

main90950-01919

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9167380616

main91673-80616

63 parts on this diagram · 2 diagrams in section
