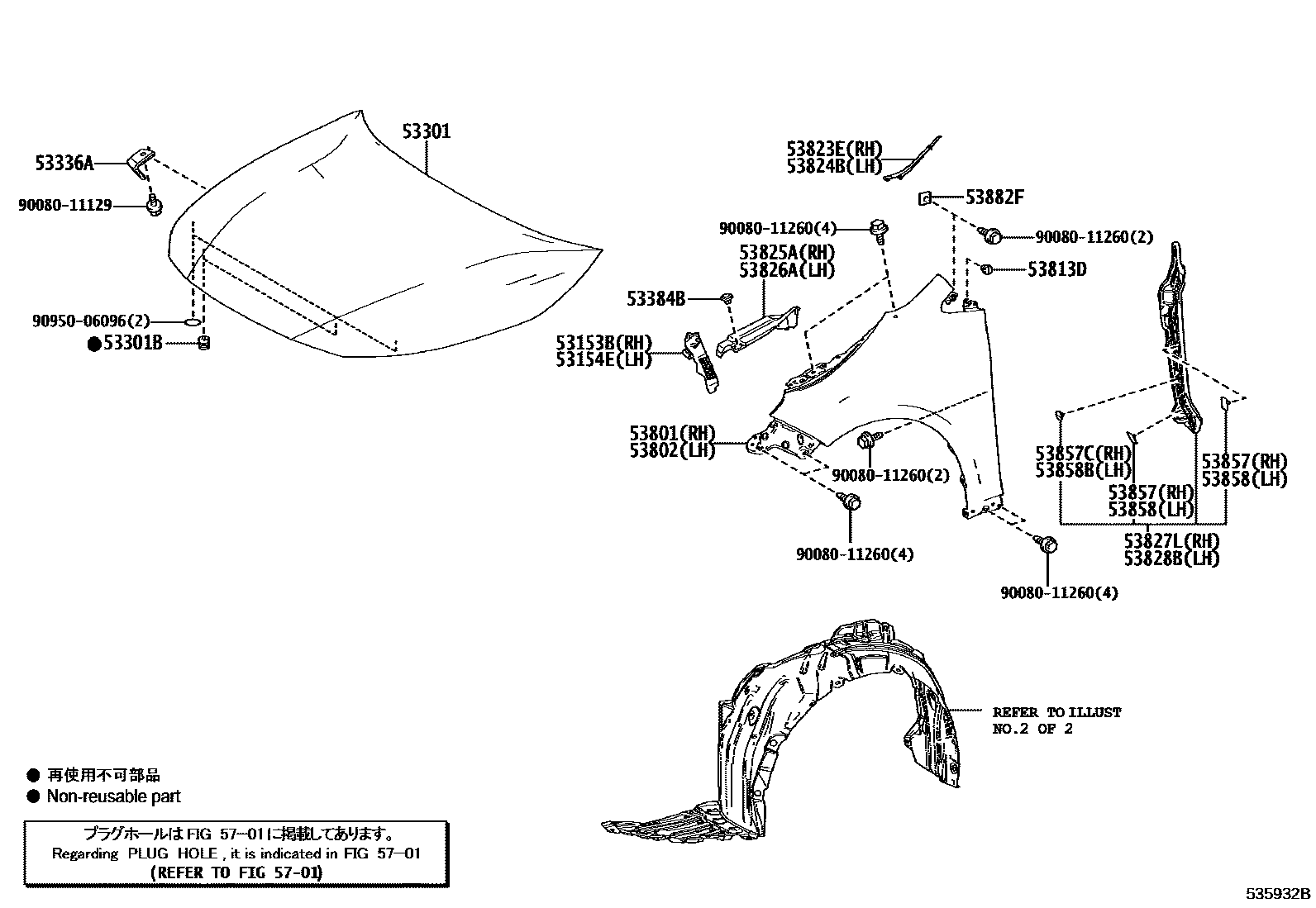

HOOD & FRONT FENDER

0001 1 0002 1

53153BGUIDE, FRONT SIDE AIR

main53153-02090iMZEA12,ZRE212201903-202410

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-02090iMZEA1#201903-202410

53301HOOD SUB-ASSY

main53301-02480iMZEA1#201903-202410

53301BCUSHION, HOOD BUMPER

main90541-09117iMZEA1#¥100201903-202410

53336ABRACKET, HOOD STAY

main53336-02060iMZEA1#201903-202410

53384BCUSHION, HOOD, CENTER

main53384-78010iMZEA1#¥370201903-202410

53801FENDER SUB-ASSY, FRONT RH

main53801-02170iMZEA1#201903-202410

53802FENDER SUB-ASSY, FRONT LH

main53802-02260iMZEA1#201903-202410

53813DEXTENSION, FRONT FENDER

main53813-47040iMZEA1#¥160201903-202410

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-02180iMZEA1#201903-202410

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-02180iMZEA1#201903-202410

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-02210iMZEA12,ZRE212201903-202402

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-02210iMZEA12,ZRE212201903-202402

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02240iMZEA1#201903-202410

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02240iMZEA1#201903-202410

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iMZEA1#¥100201903-202410

53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iMZEA1#¥60201903-202410

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iMZEA12,ZRE212¥100201903-202410

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iMZEA1#¥60201903-202410

53882FSEAL, FRONT FENDER

main53882-33060iMZEA1#¥60201903-202410

5701

9008011129

main90080-11129

9008011260

main90080-11260

9095006096

main90950-06096¥100

24 parts on this diagram · 2 diagrams in section
