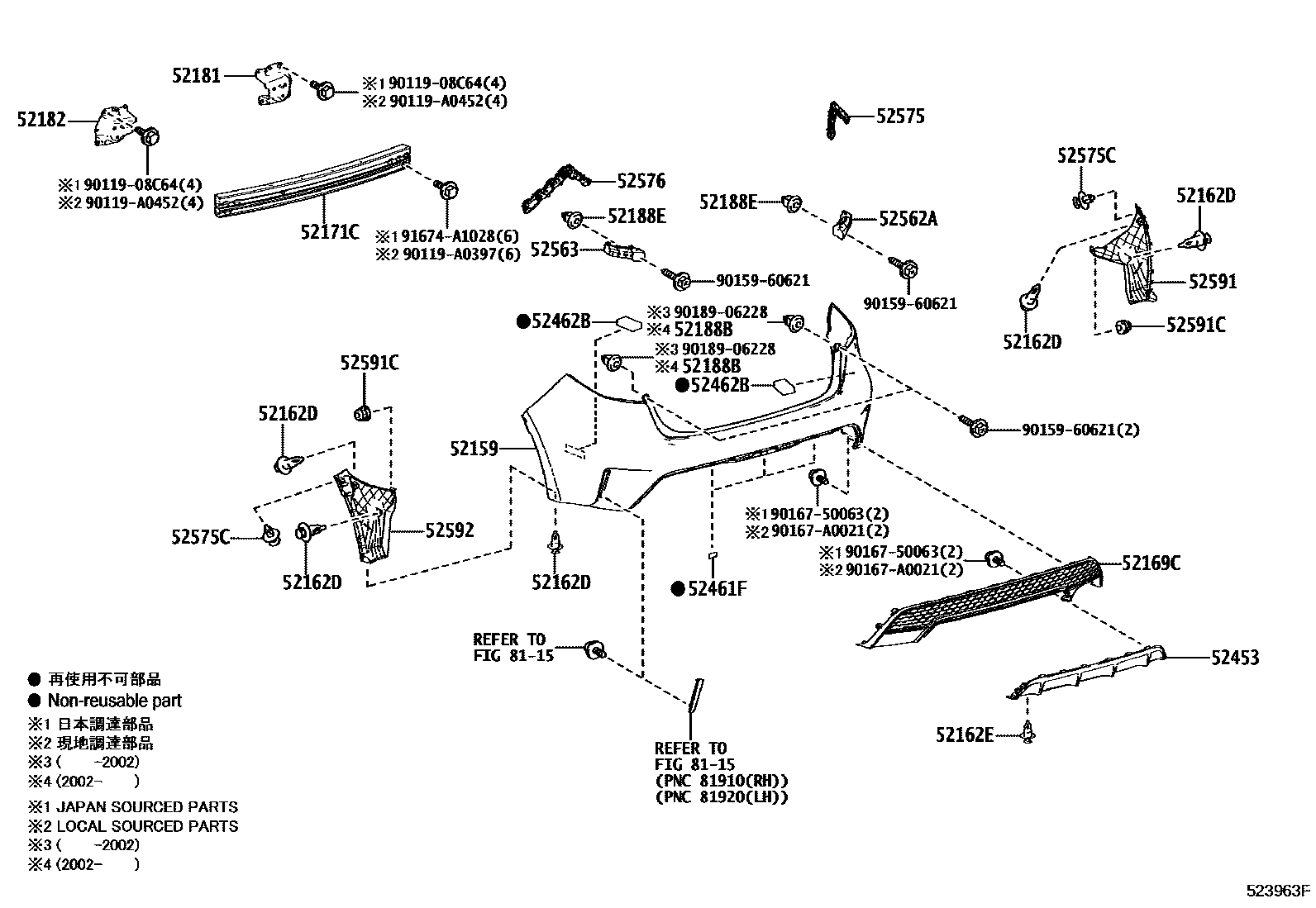

REAR BUMPER & BUMPER STAY

0001 1 0003 1 0004 1

52159COVER, REAR BUMPER

main52159-0X927iMZEA12,ZRE212201903-202007

52162DPIECE, REAR BUMPER

main52161-02020×6iMZEA1#202410

52162EPIECE, REAR BUMPER

main52161-02020×2iMZEA12..6F202007-202106

52169CCOVER, REAR BUMPER, LOWER

main52169-02060iZRE212202007-202211

NO PAINT REQ.

main52169-02070iMZEA12201903-202007

main52169-02071iMZEA12202107-202211

NO PAINT REQ.

main52169-02190iMZEA18202410

NO PAINT REQ.

main52169-02200iMZEA12202211-202410

NO PAINT REQ.

52171CREINFORCEMENT, REAR BUMPER

main52171-02260iMZEA12..6F202007-202106

main52171-02370iMZEA18202211-202410

52181ARM, REAR BUMPER, RH

main52181-02260iMZEA1#202410

52182ARM, REAR BUMPER, LH

main52182-02120iMZEA1#202410

52188BSPACER, REAR BUMPER MOUNTING

main52188-33040×2iMZEA1#202410

52188ESPACER, REAR BUMPER MOUNTING

main52188-33040×2iMZEA1#202410

52453GUARD, REAR BUMPER, CENTER

main52453-02900iMZEA12..6F202007-202106

52461FPAD, REAR BUMPER

main52461-02070×3iMZEA12,ZRE212201903-202007

52462BPAD, REAR BUMPER

main52462-02260×2iMZEA12,ZRE212201903-202007

52562ARETAINER, REAR BUMPER FILLER, NO.2

main52562-02300iMZEA1#202410

52563RETAINER, REAR BUMPER FILLER, NO.3

main52563-02170iMZEA1#202410

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02180iMZEA1#202410

52575CCLIP, REAR BUMPER SIDE RETAINER

main90467-05170×2iMZEA1#202410

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02180iMZEA12,ZRE212201903-202007

52591SEAL, REAR BUMPER SIDE, RH

main52591-02370iMZEA1#202410

52591CCLIP, REAR BUMPER SIDE SEAL

main90467-06206-C0×2iZRE212;MZEA12..CVT202007-202211

BLACK,(J)

main90467-A0043×2iMZEA1#202410

(L)

52592SEAL, REAR BUMPER SIDE, LH

main52592-02340iMZEA12,ZRE212201903-202007

8115

9011908C64

main90119-08C64

90119A0397

main90119-A0397

90119A0452

main90119-A0452

9015960621

main90159-60621

9016750063

main90167-50063

90167A0021

main90167-A0021

9018906228

main90189-06228

91674A1028

main91674-A1028

29 parts on this diagram · 3 diagrams in section
