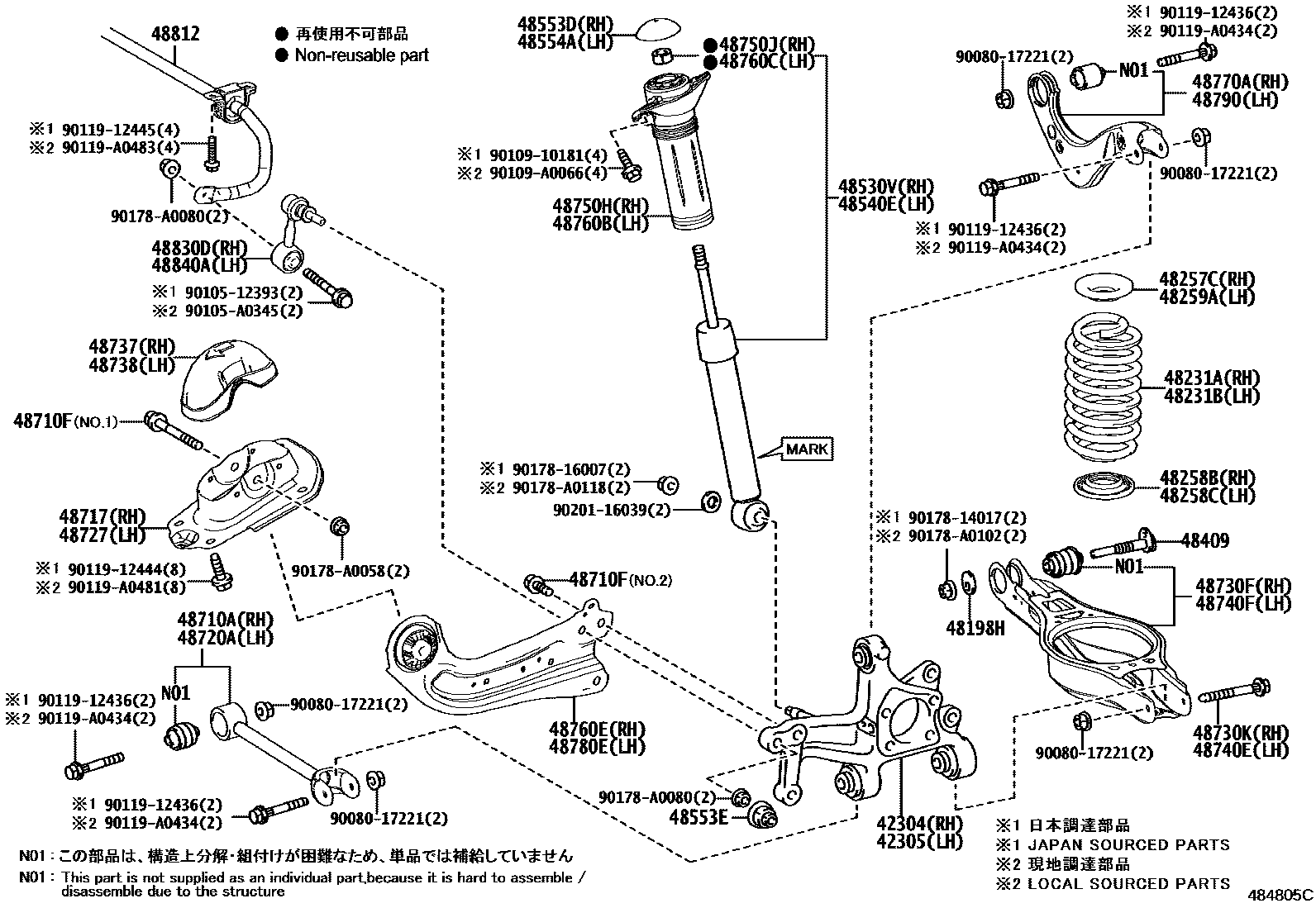

REAR SPRING & SHOCK ABSORBER

0001 1WITH(STABILIZER) 0003 1WITHOUT(STABILIZER) 0004 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-02220iMZEA12202410

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-02220iMZEA12202410

48198HCAM, CAMBER ADJUST, NO.2

main48198-07010×2iZRE212;MZEA12..CVT202007-202211

main48198-47010×2iMZEA12,ZRE212201903-201907

48231ASPRING, COIL, REAR RH

main48231-02K10iZRE212201903-202007

main48231-02K20iMZEA12..CVT202007-202211

main48231-02S90iZRE212202107-202211

main48231-02V30iMZEA18202410

main48231-02V40iMZEA12202211-202410

48231BSPRING, COIL, REAR LH

main48231-02K10iZRE212201903-202007

main48231-02K20iMZEA12201903-202007

main48231-02S90iZRE212202107-202211

main48231-02V30iMZEA18202211-202410

main48231-02V40iMZEA12202410

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-06030iMZEA1#202211-202410

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-06230iZRE212;MZEA12..CVT202007-202211

main48258-0A040iMZEA18202211-202410

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06230iMZEA12..6F202007-202106

main48258-0A040iMZEA18202410

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-06030iMZEA12,ZRE212201903-202007

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-06010×2iMZEA12..6F202007-202106

main48409-47011×2iMZEA12,ZRE212201903-201907

48530VABSORBER SET, SHOCK, REAR RH

main48530-8Z111iZRE212202007-202107

MARK 48530-02K90

main48530-8Z115iMZEA12201903-202007

MARK 48530-02T30

main48530-8Z208iZRE212202107-202211

MARK 48530-02U50

main48530-8Z227iMZEA18202410

MARK 48530-02U10

main48530-8Z228iMZEA12202211-202410

MARK 48530-02U20

48540EABSORBER SET, SHOCK, REAR LH

main48530-8Z111iZRE212201903-202007

MARK 48530-02K90

main48530-8Z115iMZEA12201903-202007

MARK 48530-02T30

main48530-8Z208iZRE212202107-202211

MARK 48530-02U50

main48530-8Z227iMZEA18202211-202410

MARK 48530-02U10

main48530-8Z228iMZEA12202410

MARK 48530-02U20

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-06010iMZEA12202410

48553ECAP

main48553-52030×2iMZEA12202211-202410

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-06010iMZEA12202211-202410

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-06160iMZEA12202410

48710FBOLT(FOR REAR TRAILING ARM)

main90105-14195×2iMZEA12202410

(J),NO.1

main90105-14197×4iMZEA12,ZRE212201903-202007

(J),NO.2

main90105-A0346×4iZRE212;MZEA12..CVT202007-202211

(L),NO.2

main90105-A0365×2iMZEA12,ZRE212201903-202007

(L),NO.1

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-06030iMZEA12202410

main48717-0A040×2iMZEA18202410

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-06160iMZEA12202410

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-06060iZRE212;MZEA12..CVT202007-202211

main48727-0A040iMZEA18202211-202410

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-02060iMZEA12..6F202007-202106

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-10A10iMZEA18202211-202410

(J)

main90119-12426iZRE212;MZEA12..CVT202007-202211

(J)

main90119-A0433iMZEA12202410

(L)

main90119-A0544iMZEA18202211-202410

(L)

main91674-N1065iMZEA18202410

(J)

48737COVER, REAR SUSPENSION ARM, RH

main48753-06080iMZEA12202410

48738COVER, REAR SUSPENSION ARM, LH

main48753-06090iMZEA12202410

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-10A10iMZEA18202211-202410

(J)

main90119-12426iMZEA12..6F202007-202106

(J)

main90119-A0433iMZEA12202410

(L)

main90119-A0544iMZEA18202410

(L)

main91674-N1065iMZEA18202410

(J)

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-02060iMZEA12,ZRE212201903-202007

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-02110iMZEA12202211-202410

main48750-0A060iMZEA18202211-202410

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-A0008iMZEA12202410

main90178-12023iMZEA18202410

(J)

main90178-A0125iMZEA18202211-202410

(L)

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-02110iZRE212;MZEA12..CVT202007-202211

main48760-0A070iMZEA18202211-202410

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-A0008iZRE212;MZEA12..CVT202007-202211

main90178-12023iMZEA18202211-202410

(J)

main90178-A0125iMZEA18202410

(L)

48760EARM ASSY, TRAILING, REAR RH

main48760-02020iMZEA12202410

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-06010iMZEA12..6F202007-202106

48780EARM ASSY, TRAILING, REAR LH

main48780-02070iMZEA12202410

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-06010iMZEA12202410

48812BAR, STABILIZER, REAR

main48805-02110iZRE212202007-202107

main48805-02120iMZEA12201903-202007

main48805-02210iMZEA12202410

48830DLINK ASSY, REAR STABILIZER, RH

main48830-06090iZRE212202007-202107

main48830-0A010iMZEA12202410

48840ALINK ASSY, REAR STABILIZER, LH

main48830-06090iMZEA12..6F202007-202106

main48830-0A010iMZEA12202211-202410

9008017221

main90080-17221

9010512393

main90105-12393

90105A0345

main90105-A0345

9010910181

main90109-10181

90109A0066

main90109-A0066

9011912436

main90119-12436

9011912444

main90119-12444

9011912445

main90119-12445

90119A0434

main90119-A0434

90119A0481

main90119-A0481

90119A0483

main90119-A0483

9017814017

main90178-14017

9017816007

main90178-16007

90178A0058

main90178-A0058

90178A0080

main90178-A0080

90178A0102

main90178-A0102

90178A0118

main90178-A0118

9020116039

main90201-16039

55 parts on this diagram · 3 diagrams in section
