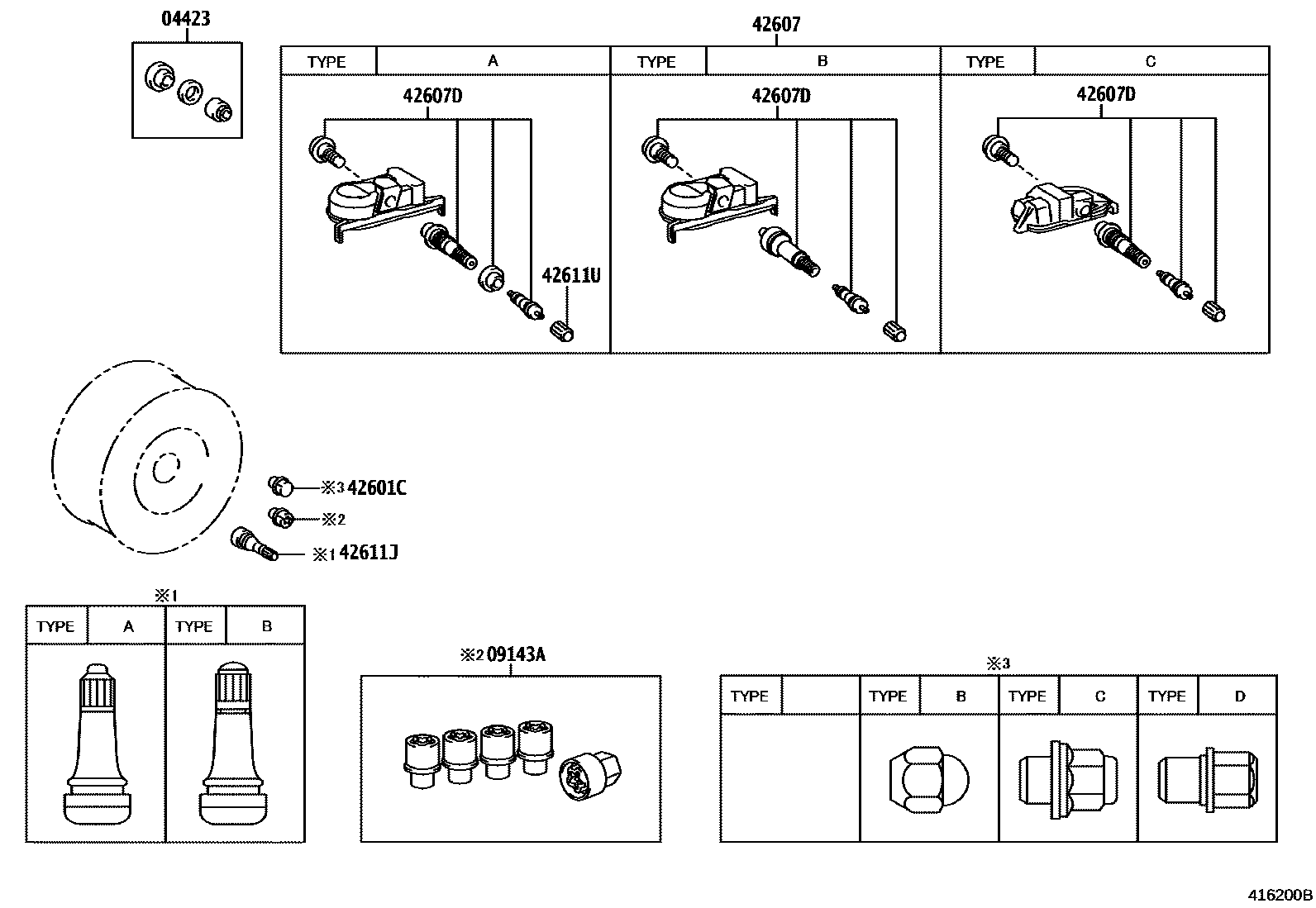

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0E010×4i201903-202007

09143ANUT, WHEEL LOCK W/SOCKET WRENCH

main09143-YY070i202211-202410

42601WHEEL, DISC

main42611-02Q51×4i202304-202410

16X7J,#,TYPE A:REFER ILLUST.

main42611-02Y20×4i202410

16X7J,#,TYPE F:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main09143-YY030×16i202410

TYPE D:REFER ILLUST.

main90084-94001×16supersedes 90084-94001i202211-202310

TYPE C:REFER ILLUST.

main90942-A1009×16i202410

TYPE C:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02050×4supersedes 42607-02100i202211-202304

TYPE B:REFER ILLUST.

main42607-0E090×4i202410

TYPE C:REFER ILLUST.

42607DVALVE, TIRE PRESSURE MONITOR

main90942-A5005×4supersedes 90942-A5007i202007-202211

TIRE&DISC WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD SPEC&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI), LOCK NUT,TYPE B:REFER ILLUST.

main90942-A5010×4i202410

TYPE C:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001i201903-202004

TYPE A:REFER ILLUST.

main90080-45006i202007-202211

TYPE B:REFER ILLUST.

42611UCAP, TIRE VALVE

main90942-A5002×4i201903-202007

8 parts on this diagram · 2 diagrams in section
