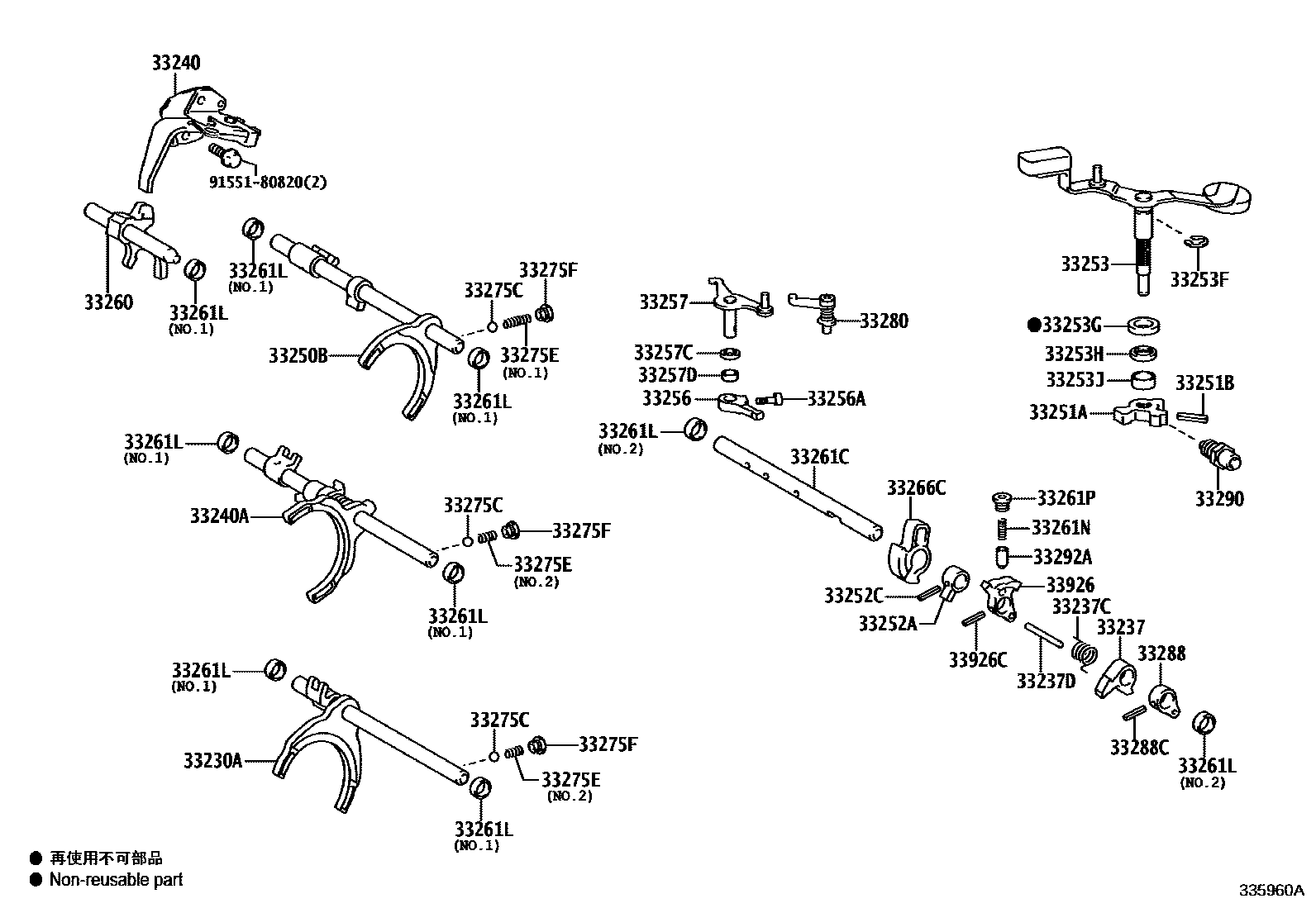

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33230ASHAFT ASSY, GEAR SHIFT FORK, NO.1
33237HEAD, RELEASE
33237CSPRING, TORSION(FOR RELEASE HEAD)
33237DPIN, STRAIGHT(FOR RELEASE HEAD)
33240BRACKET ASSY, REVERSE SHIFT ARM
33240ASHAFT ASSY, GEAR SHIFT FORK, NO.2
33250BSHAFT ASSY, GEAR SHIFT FORK, NO.3
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=28.0
33252ALEVER, SHIFT, INNER NO.2
33252CPIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2)
33253LEVER, SHIFT OUTER, NO.1
33253FRING, E(FOR SHIFT OUTER LEVER)
33253GSPACER(FOR SHIFT OUTER LEVER)
33253HSEAL, OIL(FOR SHIFT OUTER LEVER)
33253JBUSH(FOR SHIFT OUTER LEVER)
33256LEVER, SELECT INNER
33256ABOLT, SET (FOR SELECT INNER LEVER)
33257LEVER, SELECT OUTER
33257CSEAL, OIL(FOR OUTER SELECT LEVER)
33257DBUSH, BIMETAL FORMED(FOR OUTER SELECT LEVER)
33260SHAFT ASSY, REVERSE SHIFT FORK(MTM)
33261CSHAFT, SHIFT & SELECT LEVER
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
NO.1
NO.2
33261NSPRING, COMPRESSION(FOR SHIFT & SELECT LEVER SHAFT)
33261PPLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SHAFT)
33266CPLATE, SHIFT INTERLOCK
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
NO.1
33275FPLUG (FOR SHIFT DETENT BALL)
33280PIN ASSY, REVERSE RESTRICT
33288BLOCK, SELECT STOPPER
33288CPIN, SLOTTED SPRING(FOR SELECT STOPPER BLOCK)
33290BALL ASSY, LOCK, NO.1
33292APIN, LOCK BALL
33926LEVER, SHIFT INNER, FRONT
33926CPIN, SLOTTED SPRING(FOR SHIFT INNER LEVER)
9155180820
main91551-80820
38 parts on this diagram · 2 diagrams in section
