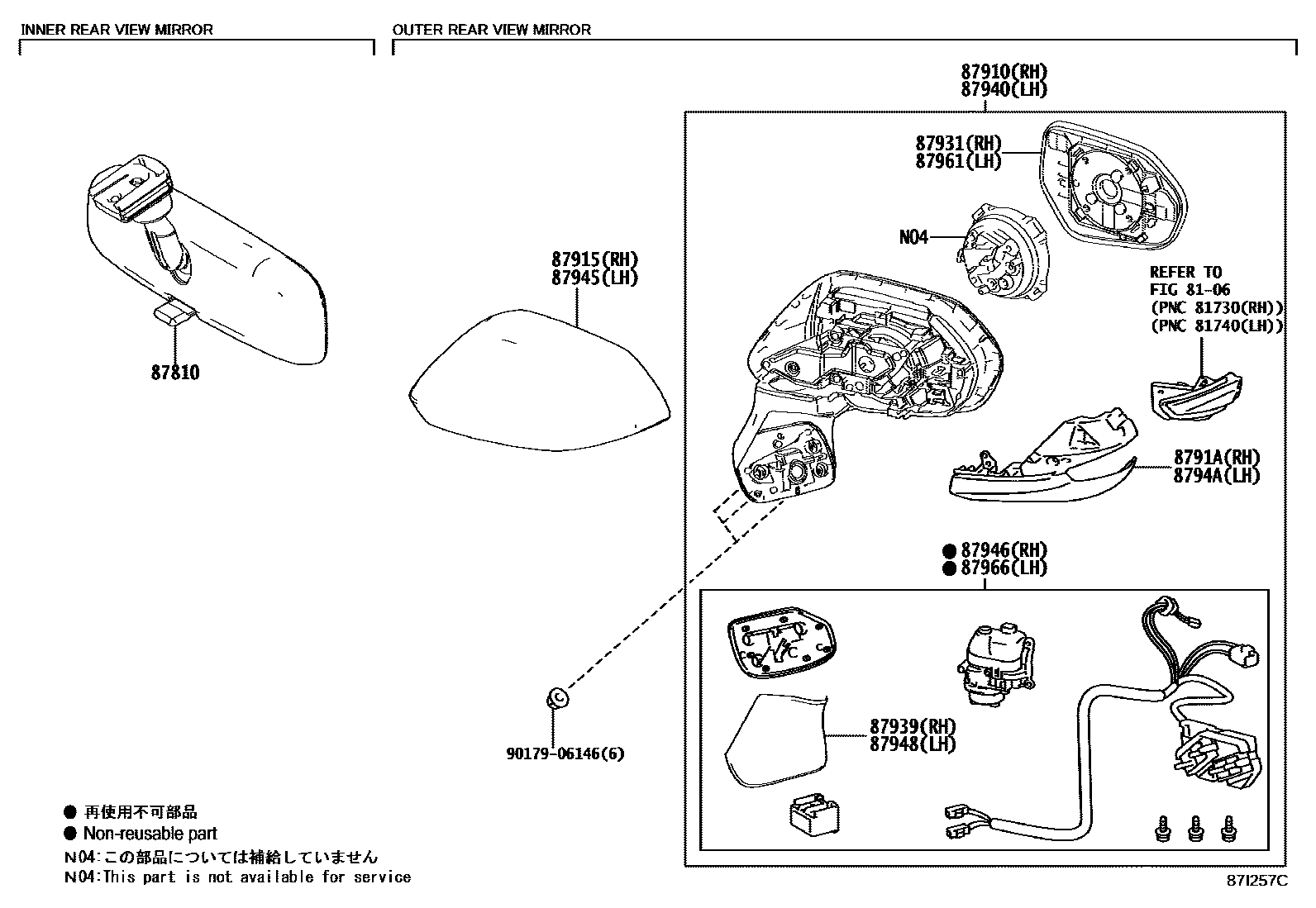

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
CELESTITE GRAY ME.,1K3
BLACK MC.,209 ,2KR ,2KS ,2PU ,2TT ,2YK
ATTITUDE BLACK MC.,040 ,089 ,1F7 ,218
SCARLET ME.,3U4
RED MC.,3T3
DK.BLUE M.M.,8W7
8791ACOVER, OUTER MIRROR, RH NO.2
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
CELESTITE GRAY ME.,1K3
BLACK MC.,209 ,2KR ,2KS ,2PU ,2TT ,2YK
ATTITUDE BLACK MC.,040 ,089 ,1F7 ,218
SCARLET ME.,3U4
RED MC.,3T3
DK.BLUE M.M.,8W7
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9017906146
main90179-06146
15 parts on this diagram · 1 diagram in section
