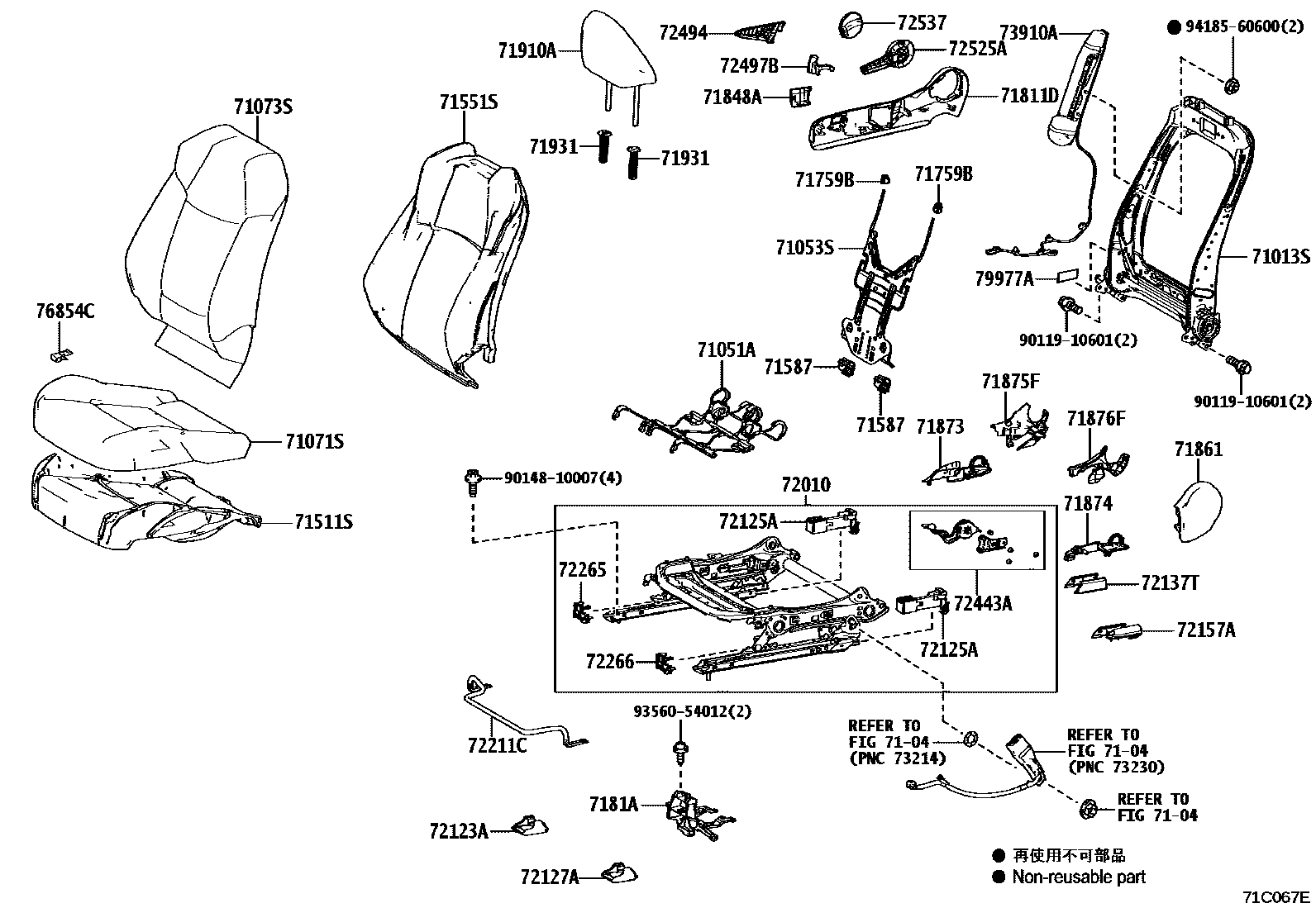

FRONT SEAT & SEAT TRACK

0001 1RH SEAT 0002 1LH SEAT

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-42210iZWE219202210

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47090iZRE212201909

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-47050iZRE212201909

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-1AM10-B0iZRE212201909

GRAY,TRIM20

main71071-1AM10-C0iZRE212201909

BLACK,TRIM21

main71071-1AS00-C0iZWE219202210-202402

BLACK,TRIM2#

main71071-1AS01-C1iZWE219202402

BLACK,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1AM10-B0iZRE212201909

GRAY,TRIM20

main71073-1AM10-C0iZRE212201909

BLACK,TRIM21

main71073-1AT20-C0iZWE219202210

BLACK,TRIM2#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-12D20iZRE212201909

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-12E40iZWE219202210

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010×4iZRE212201909

71759BHOOK, FRONT SEATBACK

main71759-50040×4iZRE212201909

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-47140-C1iZRE212201909

BLACK,TRIM2#

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-47010iZRE212201909

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-10020-C0iZWE219202304

BLACK,TRIM2#

main71848-47040-C1iZWE219202210-202304

BLACK,TRIM2#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C1iZRE212201909

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iZRE212201909

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-47080iZRE212201909

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-47040-C1iZRE212201909

BLACK,TRIM2#

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-47070-C1iZRE212201909

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-12P20-B0×2iZRE212201909

LT.GRAY,TRIM20

main71910-12P20-C0×2iZRE212201909

BLACK,TRIM21

main71910-12P21-C1×2iZWE219202402

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-B8×2iZRE212201909

W(LOCK),LT.GRAY,TRIM20

main71930-47050-C5×2iZRE212201909

W(LOCK),BLACK,TRIM21

main71931-47030-B9×2iZRE212201909

W/O(LOCK),LT.GRAY,TRIM20

main71931-47030-C4×2iZRE212201909

W/O(LOCK),BLACK,TRIM21

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-47361iZRE212201909

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-10100iZWE219202210

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-47010×4iZRE212201909

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-10100iZRE212201909

72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iZRE212201909

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-47080iZRE212201909

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-47050×2iZWE219202210

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-47010×2iZRE212201909

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-47010×2iZRE212201909

72443AGEAR, VERTICAL ADJUSTER, RH

main72443-47011iZWE219202210

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-12080-C0iZWE219202304

BLACK,TRIM2#

main72494-47030-C1iZRE212201909

BLACK,TRIM2#

72497BCOVER, VERTICAL ADJUSTER BRACKET, RH

main72498-47010iZRE212201909

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-33050-C0iZRE212201909

BLACK,TRIM2#

72537COVER, RECLINING HINGE OUTER, RH

main72551-33010-C0iZRE212201909

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-12100iZRE212201909

76854CRETAINER, FRONT SEAT CUSHION COVER

main76854-44010iZWE219202210

79977AFELT, SEATBACK

main79977-12090×2iZRE212201909

9011910601

main90119-10601

9014810007

main90148-10007

9356054012

main93560-54012

9418560600

main94185-60600

41 parts on this diagram · 2 diagrams in section
