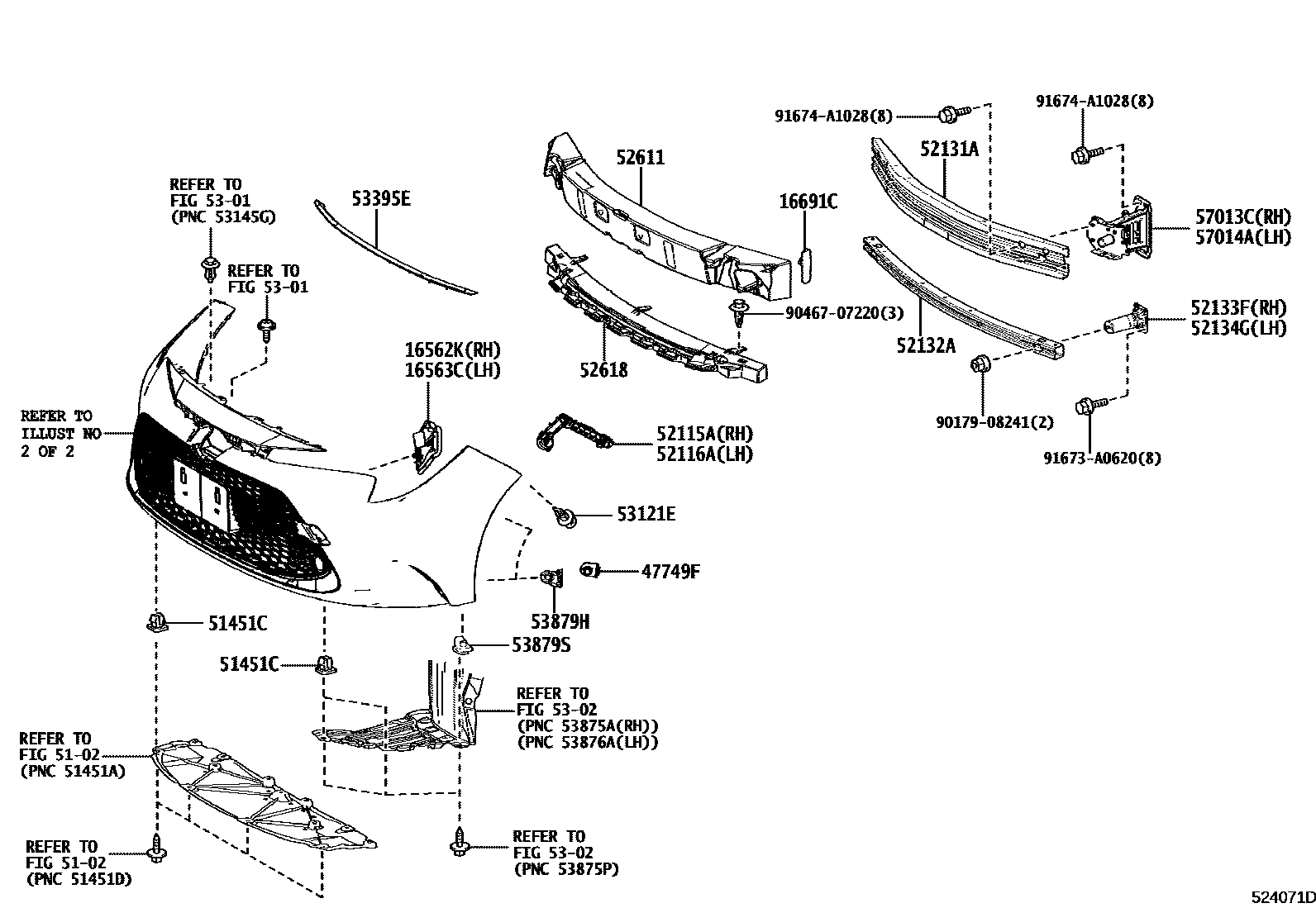

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

16562KSEAL, RADIATOR TO SUPPORT, NO.2

main16562-37040i2ZRFAE..ZRE212201909

16563CSEAL, RADIATOR TO SUPPORT, NO.3

main16563-37040i2ZRFAE..ZRE212201909

16691CPLATE, RADIATOR SIDE AIR GUIDE, FRONT

main16691-37020×2i2ZRFAE..ZRE212201909

47749FCLIP, PIN HOLD

main47749-33030×4iZRE212201909

5102

51451CGROMMET(FOR ENGINE UNDER COVER)

main90189-06237×8iZRE212201909

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12480iZRE212201909

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12440iZRE212201909

52131AREINFORCEMENT, FRONT BUMPER

main52131-12320iZRE212201909

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-12150iZRE212201909

main52132-12151iZWE219202410

52133FBRACKET, FRONT BUMPER, RH

main52133-12190iZRE212201909

52134GBRACKET, FRONT BUMPER, LH

main52133-12190iZRE212201909

52611ABSORBER, FRONT BUMPER ENERGY

main52611-12450iZRE212201909

52618ABSORBER, FRONT BUMPER, LOWER

main52618-12130iZRE212201909

5301

5302

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-05170×2iZRE212201909

53395ESEAL, HOOD TO FRONT END PANEL

main53395-12140iZRE212201909

53879HRETAINER, FRONT FENDER LINER

main53879-33030×4iZRE212201909

53879SRETAINER, FRONT FENDER LINER

main53879-17020×2iZRE212201909

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-12080iZRE212201909

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-12080iZRE212201909

9017908241

main90179-08241

9046707220

main90467-07220

91673A0620

main91673-A0620

91674A1028

main91674-A1028

26 parts on this diagram · 4 diagrams in section
