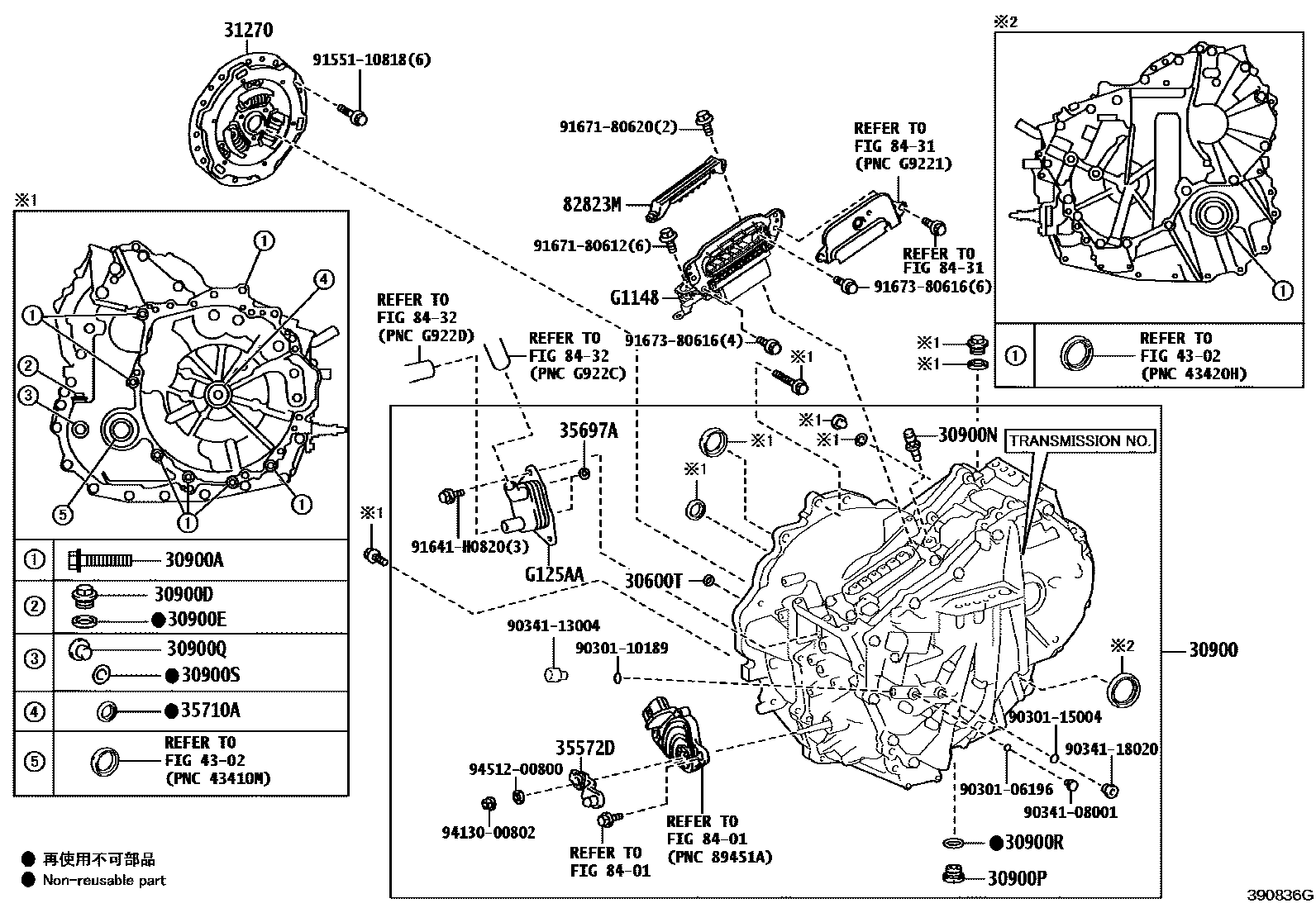

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

30600TO RING, TRANSAXLE CASE, NO.1

main35697-52030iZWE219202310

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-12040iZWE219202210

*709

main30900-12080iZWE219202310

*199

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main91612-61045iZWE219202210

*10-1.25PX45-30

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iZWE219202210

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iZWE219202210

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iZWE219202210

30900PPLUG, DRAIN(HEV)

main90341-18016iZWE219202210

30900QPLUG, FILLER(HEV)

main90341-18090iZWE219202210

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iZWE219202210

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iZWE219202210

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-28020iZWE219202210

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-28140iZWE219202210

35697ARING, TRANSAXLE OIL SEAL

main35697-28030iZWE219202210

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25035iZWE219202210

4302

82823MCAP, TERMINAL

main82823-28110iZWE219202210

8401

8431

8432

G1148CABLE, MOTOR

mainG114828040iZWE219202210-202409

mainG114828041iZWE219202410

G125AACOOLER, MOTOR COOLING

mainG125A28010iZWE219202210

9030106196

main90301-06196

9030110189

main90301-10189

9030115004

main90301-15004

9034108001

main90341-08001

9034113004

main90341-13004

9034118020

main90341-18020

9155110818

main91551-10818

91641H0820

main91641-H0820

9167180612

main91671-80612

9167180620

main91671-80620

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

34 parts on this diagram · 1 diagram in section
