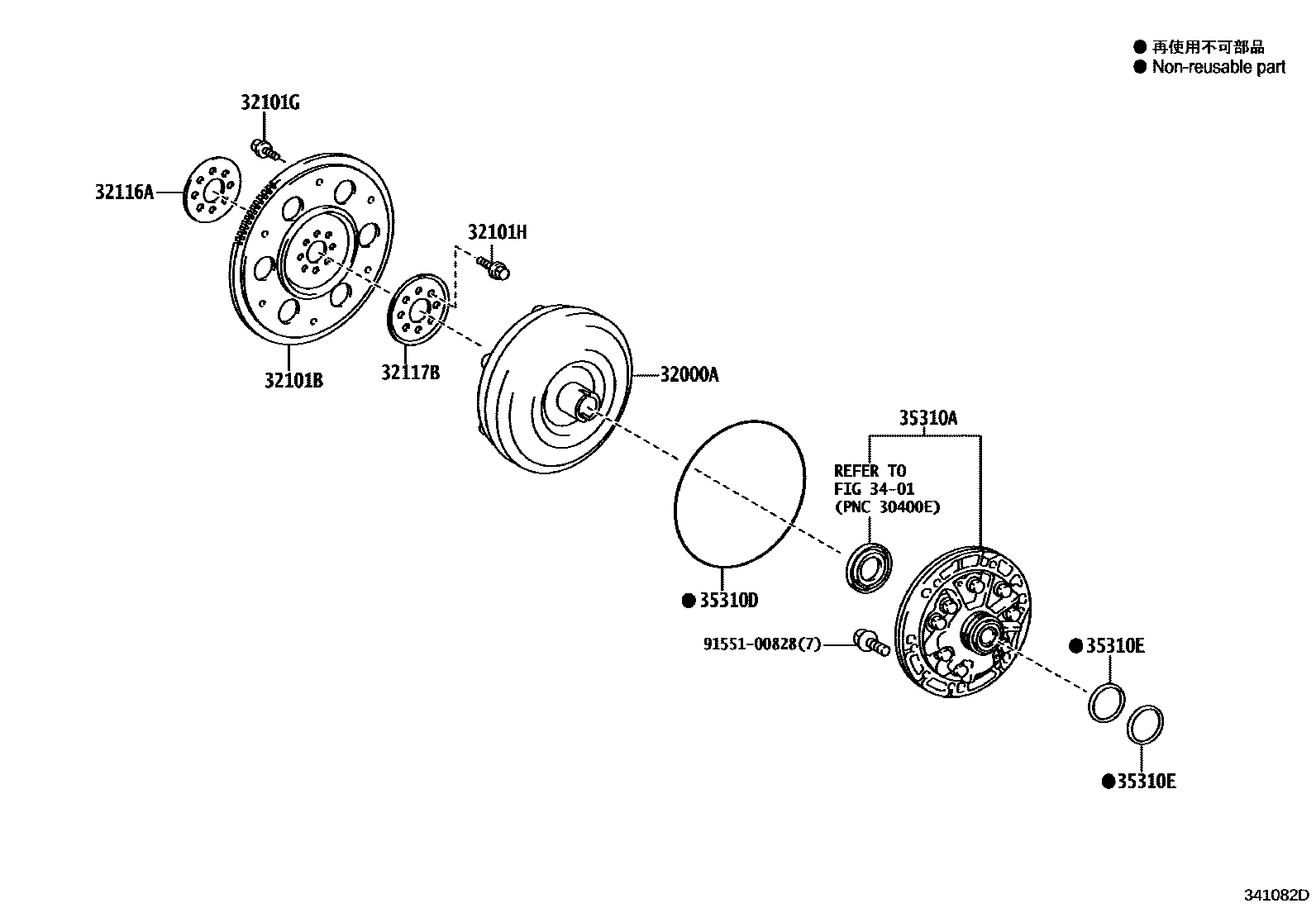

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12490iZRE212201909

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZRE212201909

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZRE212201909

*8-1.25PX12-8.4,BLACK

main90119-08498×5iZRE212201909

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iZRE212201909

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZRE212201909

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZRE212201909

3401

35310APUMP ASSY, FRONT OIL

main35310-12160iZRE212201909

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99202iZRE212201909

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-52060×2iZRE212201909

9155100828

main91551-00828

11 parts on this diagram · 1 diagram in section
