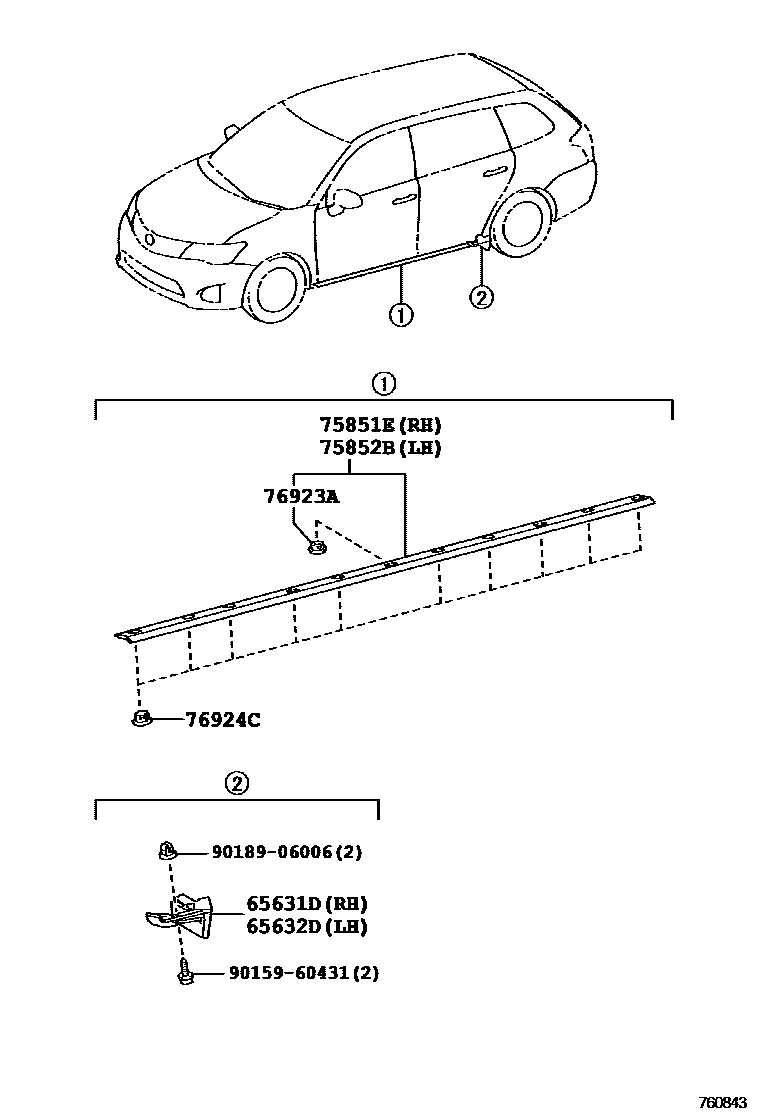

MUDGUARD & SPOILER

0001 1 0002 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-12100iNRE161,NZE161201503-201710

main65631-12130iNRE161,NZE161201710-201908

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-12100iNZE161201204-201503

main65632-12130iNRE161,NZE161201710-201908

75851EMOULDING, BODY ROCKER PANEL, RH

main75851-12160iNRE161,NZE161201503-201710

75852BMOULDING, BODY ROCKER PANEL, LH

main75852-12130iNZE161201204-201503

76923ARETAINER, SIDE MUDGUARD

main76924-12040×2iNZE161201204-201503

76924CRETAINER, SIDE MUDGUARD, NO.2

main76924-12040×20iNZE161201204-201503

9015960431

main90159-60431

9018906006

main90189-06006

8 parts on this diagram · 2 diagrams in section
