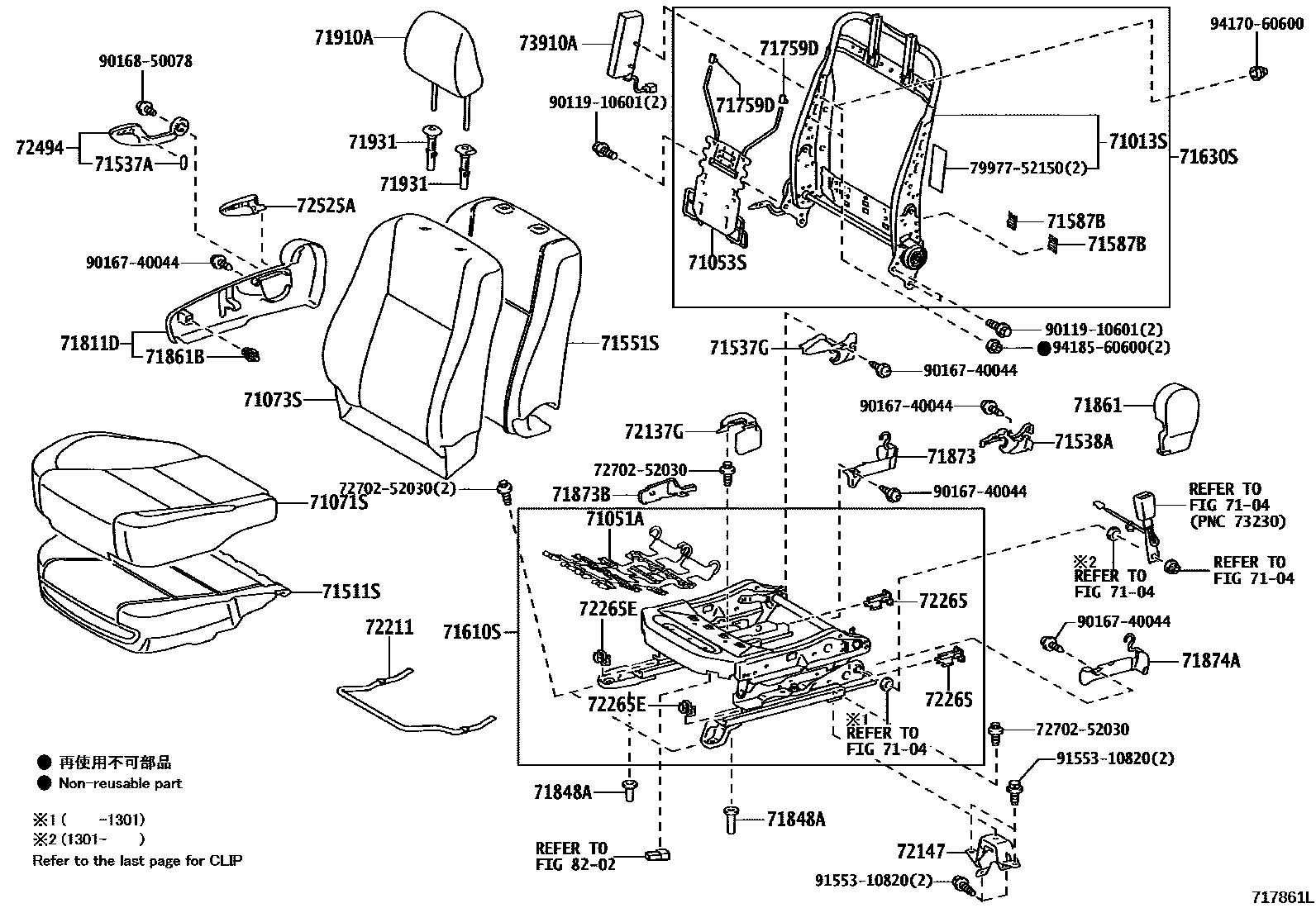

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1PASSENGER SEAT 0003 1SEAT COVER EDGE WIRE & CLIP

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-13090iNRE161..4D..N201503-201504

main71013-13091iNRE161..4D201710-201908

main71013-13100iNRE161..E;NRE161,NZE161..5D201503-201504

main71013-13101iNRE161,NZE161..5D201710-201908

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47060iNZE161201204-201503

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-52050iNRE161,NZE161201503-201710

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-12S20-B0iNRE161..4D..N201503-201710

LT.GRAY,TRIM2#

main71071-12Y50-A1iNZE161..4D..N201212-201412

IVORY,TRIM20

main71071-12Y50-B2iNZE161..4D..N201212-201412

LT.GRAY,TRIM21

main71071-12Y51-A2iNZE161..4D..N201412-201503

BEIGE,TRIM20

main71071-12Y51-B3iNZE161..4D..N201412-201503

LT.GRAY,TRIM21

main71071-12Z70-A2iNZE161..E201212-201503

IVORY,TRIM20

main71071-12Z70-B3iNZE161..E201212-201503

LT.GRAY,TRIM21

main71071-13B90-C1iNZE161..5D201204-201503

BLACK,TRIM2#

main71071-1AA80-A0iNRE161..E201503-201710

FLAXEN,TRIM20

main71071-1AA80-C0iNRE161..E201503-201710

BLACK,TRIM21

main71071-1AD80-C0iNRE161,NZE161..5D201503-201710

BLACK,TRIM2#

main71071-1AD80-C2iNRE161,NZE161..5D201710-201908

BLACK,TRIM2#

main71071-1AF90-C2iNRE161..4D201710-201908

BLACK,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-12Z50-A2iNZE161..4D..N201212-201412

IVORY,TRIM20

main71073-12Z50-B3iNZE161..4D..N201212-201412

LT.GRAY,TRIM21

main71073-12Z51-A3iNZE161..4D..N201412-201503

BEIGE,TRIM20

main71073-12Z51-B4iNRE161..4D..N201503-201710

LT.GRAY,TRIM2#

main71073-12Z80-A4iNZE161..E201212-201503

IVORY,TRIM20

main71073-12Z80-A7iNRE161..E201503-201710

FLAXEN,TRIM20

main71073-12Z80-B6iNZE161..E201212-201503

LT.GRAY,TRIM21

main71073-12Z80-C0iNRE161..E201503-201710

BLACK,TRIM21

main71073-13C40-C4iNZE161..5D201204-201503

BLACK,TRIM2#

main71073-13C90-C2iNRE161,NZE161..5D201710-201908

BLACK,TRIM2#

main71073-1AG50-C0iNRE161..4D201710-201908

BLACK,TRIM2#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-13170iNZE161201204-201503

71537APROTECTOR, FRONT SEAT CUSHION

main71537-47040iNRE161,NZE161201503-201710

71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-52100-C0iNZE161201204-201503

BLACK,TRIM2#

main71537-52150-C0iNRE161,NZE161201601-201710

BLACK,TRIM2#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-52050-C0iNZE161201204-201503

BLACK,TRIM2#

main71538-52090-C0iNRE161,NZE161201601-201710

BLACK,TRIM2#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-13290iNZE161..4D..N201212-201503

main71551-13300iNZE161..E;NZE161..5D201204-201503

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-52030×4iNZE161201204-201503

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-13010iNZE161201204-201301

sub73214-75010

main71610-13011iNRE161,NZE161201503-201710

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-13090iNRE161..4D..N201503-201504

main71630-13091iNRE161..4D..N201504-201710

main71630-13100iNZE161..E;NZE161..5D201204-201503

main71630-13101iNRE161,NZE161..5D201710-201908

71759DHOOK, FRONT SEATBACK, NO.2

main71759-47010×4iNZE161201204-201308

main71759-47011×4iNRE161,NZE161201503-201710

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-52251-C0iNRE161..4D201710-201908

BLACK,TRIM2#

main71811-52291-C0iNRE161,NZE161..5D201710-201908

BLACK,TRIM2#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-26010iNRE161,NZE161201710-201908

INNER

main71848-52100iNRE161,NZE161201710-201908

OUTER

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-52230-C0iNZE161201204-201503

BLACK,TRIM2#

main71861-52230-C1iNRE161,NZE161201710-201908

BLACK,TRIM2#

71861BCLIP(FOR FRONT SEAT SHIELD, RH)

main71769-47020iNZE161201204-201503

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-52280-C0iNZE161201204-201503

BLACK,TRIM2#

71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

main71873-52230-C0iNZE161201204-201503

BLACK,TRIM2#

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47040iNZE161201204-201503

71910AHEADREST ASSY, FRONT SEAT

main71910-12J01-A0×2iNZE161..4D..N201212-201412

BEIGE,TRIM20

sub71910-12J02

main71910-12J01-B1×2iNZE161..4D..N201212-201412

MID GRAY,TRIM21

sub71910-12J02

main71910-12J11-A0×2iNZE161..4D..N201412-201503

BEIGE,TRIM20

sub71910-12J12

main71910-12J11-A4×2iNRE161..E201503-201710

FLAXEN,TRIM20

sub71910-12J12

main71910-12J11-B2×2iNRE161..4D..N201503-201710

DK.GRAY,TRIM2#

sub71910-12J12

main71910-12J11-C1×2iNRE161..4D201710-201908

BLACK,TRIM2#

sub71910-12J12

main71910-13361-C1×2iNRE161,NZE161..5D201710-201908

BLACK,TRIM2#

sub71910-13362

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-A1×2iNZE161..4D201212-201503

W(LOCK),IVORY,TRIM20

main71930-47020-A7×2iNRE161..E201503-201710

W(LOCK),FLAXEN,TRIM20

main71930-47020-B6×2iNZE161..4D201212-201503

W(LOCK),DK.CHARCOAL,TRIM21

main71930-47020-C0×2iNZE161..5D201204-201503

W(LOCK),BLACK,TRIM2#

main71930-47020-C4×2iNRE161,NZE161201710-201908

W(LOCK),BLACK,TRIM2#

main71931-47020-A1×2iNZE161..4D201212-201503

W/O(LOCK),IVORY,TRIM20

main71931-47020-A7×2iNRE161..E201503-201710

W/O(LOCK),FLAXEN,TRIM20

main71931-47020-B6×2iNZE161..4D201212-201503

W/O(LOCK),DK.CHARCOAL,TRIM21

main71931-47020-C0×2iNRE161,NZE161..N201503-201710

W/O(LOCK),BLACK,TRIM2#

main71931-47020-C4×2iNRE161,NZE161201710-201908

W/O(LOCK),BLACK,TRIM2#

72137GCOVER, SEAT TRACK, OUTER RH

main72137-13080-C0iNZE161201204-201503

BLACK,TRIM2#

72147BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

main72147-13010iNZE161201204-201503

72211HANDLE, SEAT TRACK ADJUSTING

main72211-12350×2iNRE161,NZE161201808-201908

main72211-47020×2iNZE161201412-201503

main72211-52180×2iNRE161,NZE161201503-201504

main72211-52220×2iNRE161,NZE161201710-201807

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-52040×2iNRE161,NZE161201710-201908

72265ECOVER, SEAT TRACK UPPER RAIL, RH

main72265-60110×2iNRE161,NZE161201710-201908

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-52040-C0iNZE161201204-201403

BLACK,TRIM2#

main72494-52050-C0iNRE161,NZE161201710-201908

BLACK,TRIM2#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-C0iNRE161,NZE161201503-201710

BLACK,TRIM2#

sub72525-52050

main72525-47010-C1iNRE161,NZE161201710-201908

BLACK,TRIM2#

sub72525-52050

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-13030iNRE161,NZE161..5D201710-201908

8202

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

7997752150FELT, SEATBACK

main79977-52150

9011910601

main90119-10601

9016740044

main90167-40044

9016850078

main90168-50078

9155310820

main91553-10820

9417060600

main94170-60600

9418560600

main94185-60600

41 parts on this diagram · 3 diagrams in section
