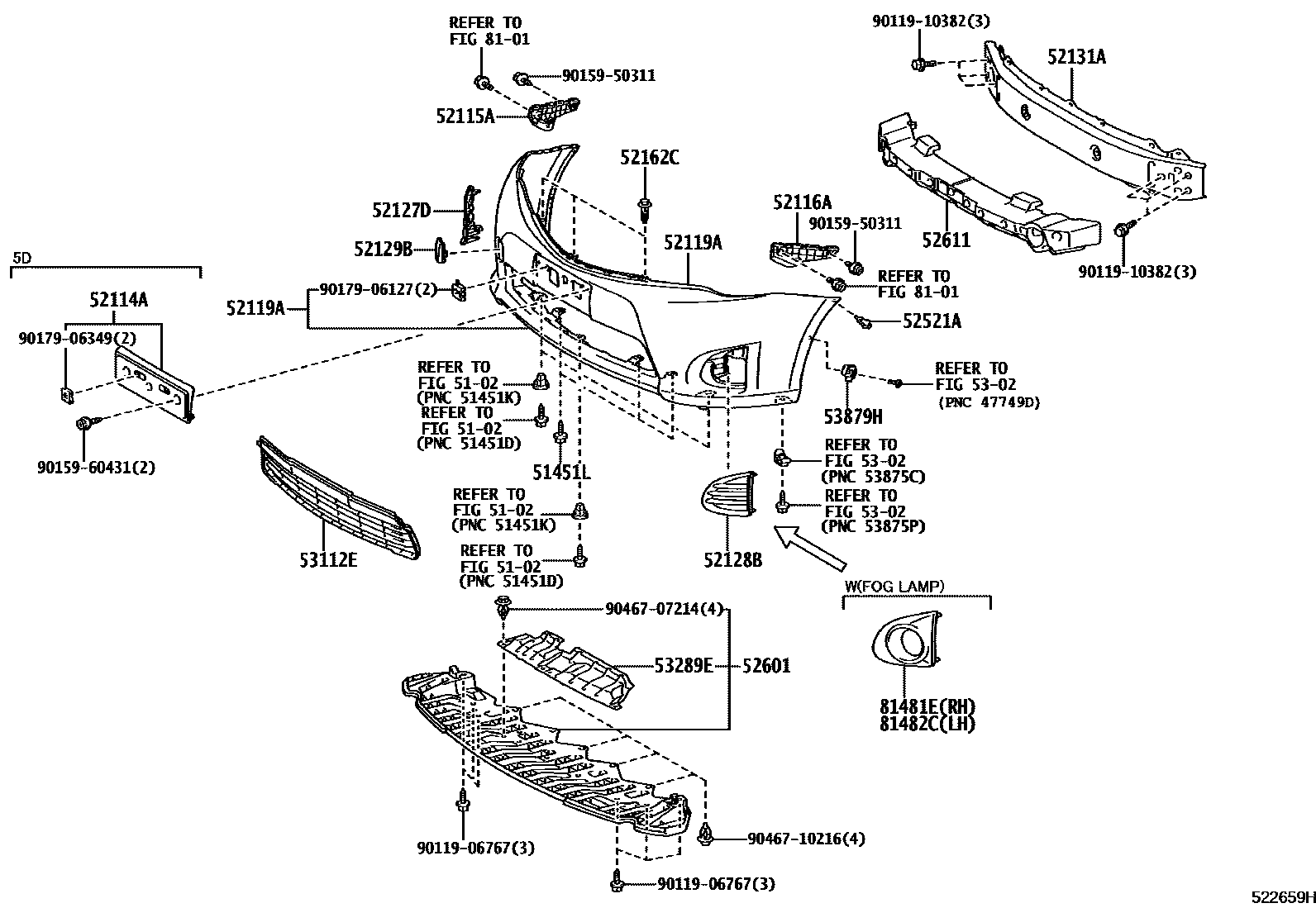

FRONT BUMPER & BUMPER STAY
5102
51451LBOLT, NO.1
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
COOL BORDEAUX GF.,3T9
ORANGE ME.,4R8
AVANT-GARDE BRONZE ME.,4V8
VINTAGE BROWN PEARL CS.,4X4
BLUE ME.,8T7
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52129BCOVER, FRONT BUMPER, LOWER
52131AREINFORCEMENT, FRONT BUMPER
52162CPIECE, FRONT BUMPER
sub52161-0K040
52521ACLIP(FOR FRONT BUMPER RETAINER)
52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52611ABSORBER, FRONT BUMPER ENERGY
5302
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
LOUVER TYPE
53289ECOVER, RADIATOR SUPPORT OPENING
53879HRETAINER, FRONT FENDER LINER
8101
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
9011906767
main90119-06767
9011910382
main90119-10382
9015950311
main90159-50311
9015960431
main90159-60431
9017906127
main90179-06127
9017906349
main90179-06349
9046707214
main90467-07214
9046710216
main90467-10216
29 parts on this diagram · 3 diagrams in section
