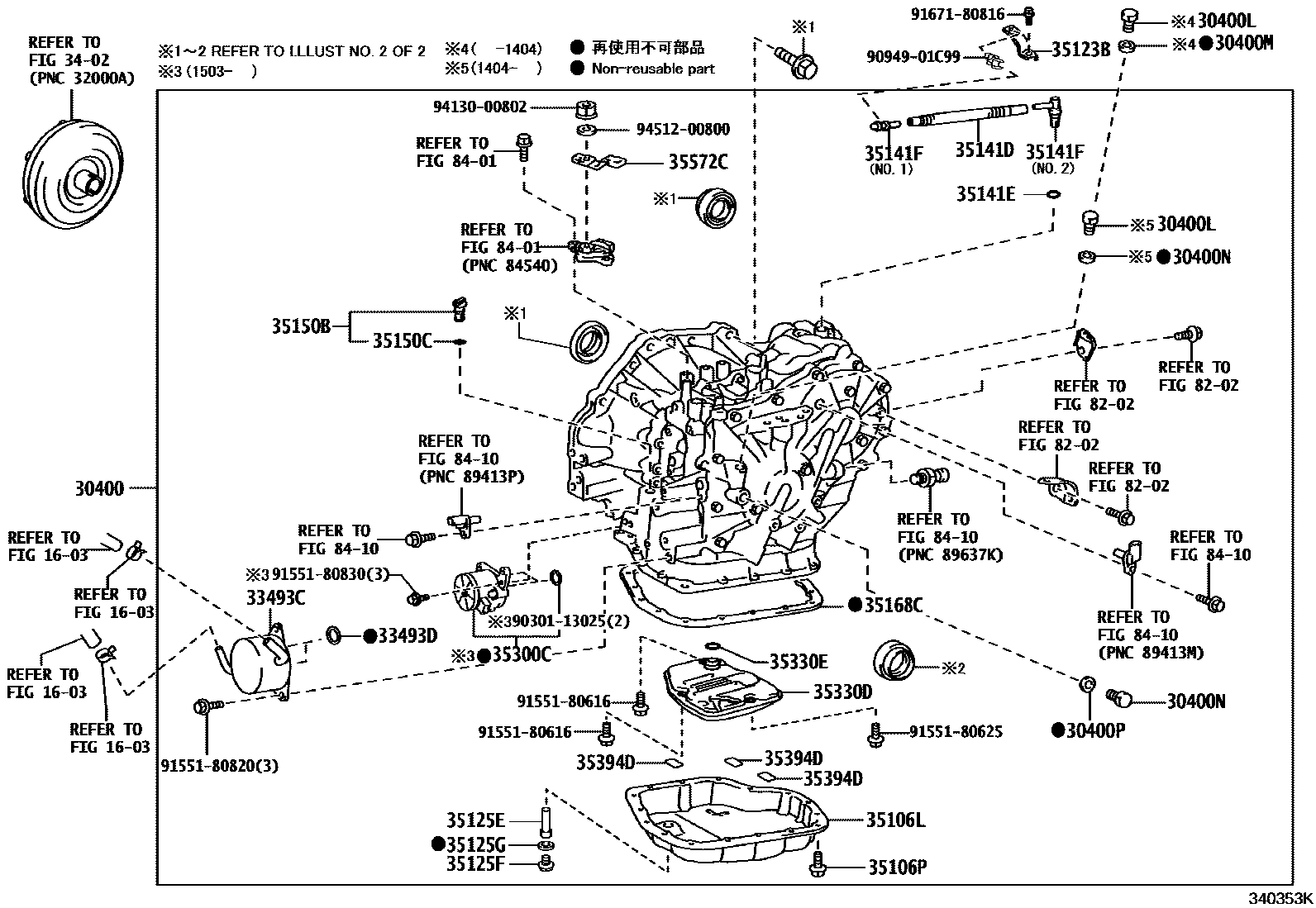

TRANSAXLE ASSY(CVT)

0001 1K312 0003 1K312 0004 1K312

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-12140iNZE161..CVT¥347,000201206-201503

K312

sub30400-12141¥315,000

main30400-12270iNRE161¥347,000201503-201908

K312

sub30400-12271¥315,000

30400LPLUG , FILLER(CVT)

main90341-12025iNZE161..CVT¥190201206-201908

30400MGASKET, FILLER PLUG(CVT)

main90430-12221iNZE161..CVT¥200201206-201908

30400NPLUG, REFILL(CVT)

main90341-18077iNZE161..CVT¥190201206-201908

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iNRE161¥110201206-201908

33493CCOOLER, TRANSMISSION OIL

main33493-52010iNZE161..CVT¥6,500201206-201908

33493DRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012iNZE161..CVT¥170201206-201908

3402

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-12170iNZE161..CVT¥5,200201206-201601

sub35106-12171¥3,270

main35106-12171iNRE161¥3,270201602-201908

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173iNZE161..CVT¥80201206-201908

35123BSKIRT,TRANSMISSION BREATHER

main35123-52030iNZE161..CVT¥310201206-201503

main35123-52050iNRE161¥340201503-201908

35125ETUBE, OVERFLOW(CVT)

main35125-12430iNZE161..CVT¥130201206-201908

35125FPLUG, OVERFLOW(CVT)

main90341-12034iNRE161¥190201206-201908

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iNRE161¥90201206-201908

35141DHOSE(FOR BREATHER PLUG)

main35121-52020iNZE161..CVT¥590201206-201908

35141ERING, O(FOR BREATHER PLUG)

main90301-06005iNZE161..CVT¥170201206-201604

main90301-06021iNRE161¥140201605-201908

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03149iNZE161..CVT¥220201206-201908

NO.1

main90930-03191iNRE161¥260201206-201908

NO.2

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iNZE161..CVT¥340201206-201209

main35150-48010iNZE161..CVT¥280201209-201908

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iNRE161¥140201209-201908

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12090iNZE161..CVT¥620201206-201402

sub35168-12091¥370

main35168-12091iNZE161..CVT¥370201402-201908

35300CPUMP ASSY, OIL W/MOTOR

main35300-12011iNRE161¥42,500201503-201908

35330DSTRAINER ASSY, OIL

main35330-0W110iNZE161..CVT¥4,480201206-201908

35330ERING, O (FOR OIL STRAINER)

main90301-22014iNZE161..CVT¥130201206-201604

main90301-22019iNRE161¥130201605-201908

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011iNZE161..CVT¥360201206-201908

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12170iNZE161..CVT¥370201206-201908

8202

8401

8410

9030113025

main90301-13025¥170

9094901C99

main90949-01C99¥100

9155180616

main91551-80616¥60

9155180625

main91551-80625¥60

9155180820

main91551-80820¥80

9155180830

main91551-80830¥80

9167180816

main91671-80816¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

38 parts on this diagram · 3 diagrams in section
